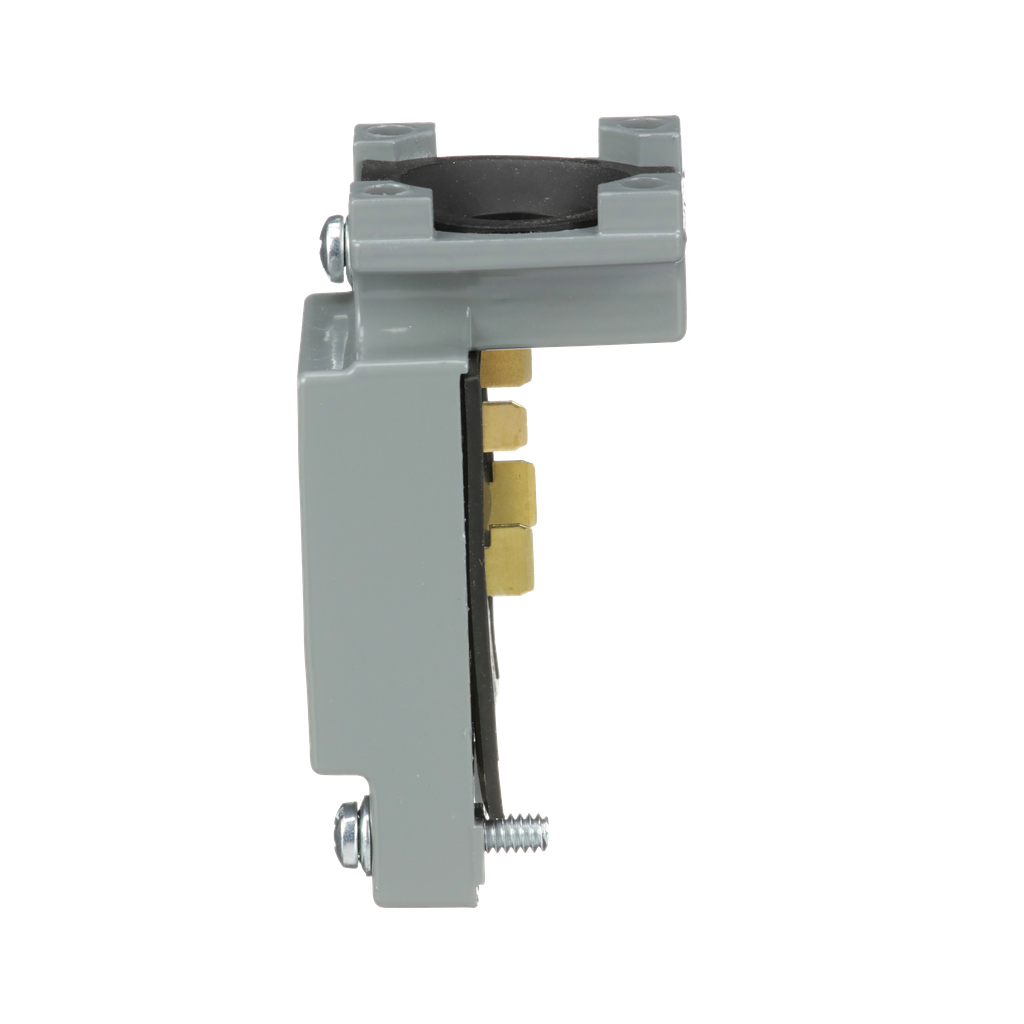

TES 9036DR31C Float switch, Square-D Pumptrol, open tank, NEMA 7/9, pedestal mounted, 2NC DPST DB contacts

This product is part of the NEMA Pressure Switches range, an offer of float switches. This close on liquid rising float switch has 2 normally closed, snap action, DPST-DB (double pole single throw, double break) form YY contacts. The open tank float switch supports pedestal mounting method and vertical float rod angle for operating in any position. It is furnished with screw clamp terminals for electrical connection and 2 conduit entries for 3/4-14 NPT. Offers electrical durability of 100 cycles and mechanical durability of 300 cycles. Switch is 8.5inch(W) x 4.37inch(D) x 5.06inch(H) and weighs 4.1lb. Float switch has a compensating spring. It is a NEMA 7&9 rated product. This product is certified by UL, CSA, CE. Meets UL 508 standards. Float switch is lever operated and designed for open tank applications. This switch can be pedestal mounted using mounting plate 9049UMS1. This product is certified by CSA and UL. It meets CE and UL 508 standards. A complete line of switches designed for open or closed tank applications they detect rising or falling liquid levels in various types of containers. The Square D brand water pressure switch has expanded to industry leading Pressure Sensors and Switches.
