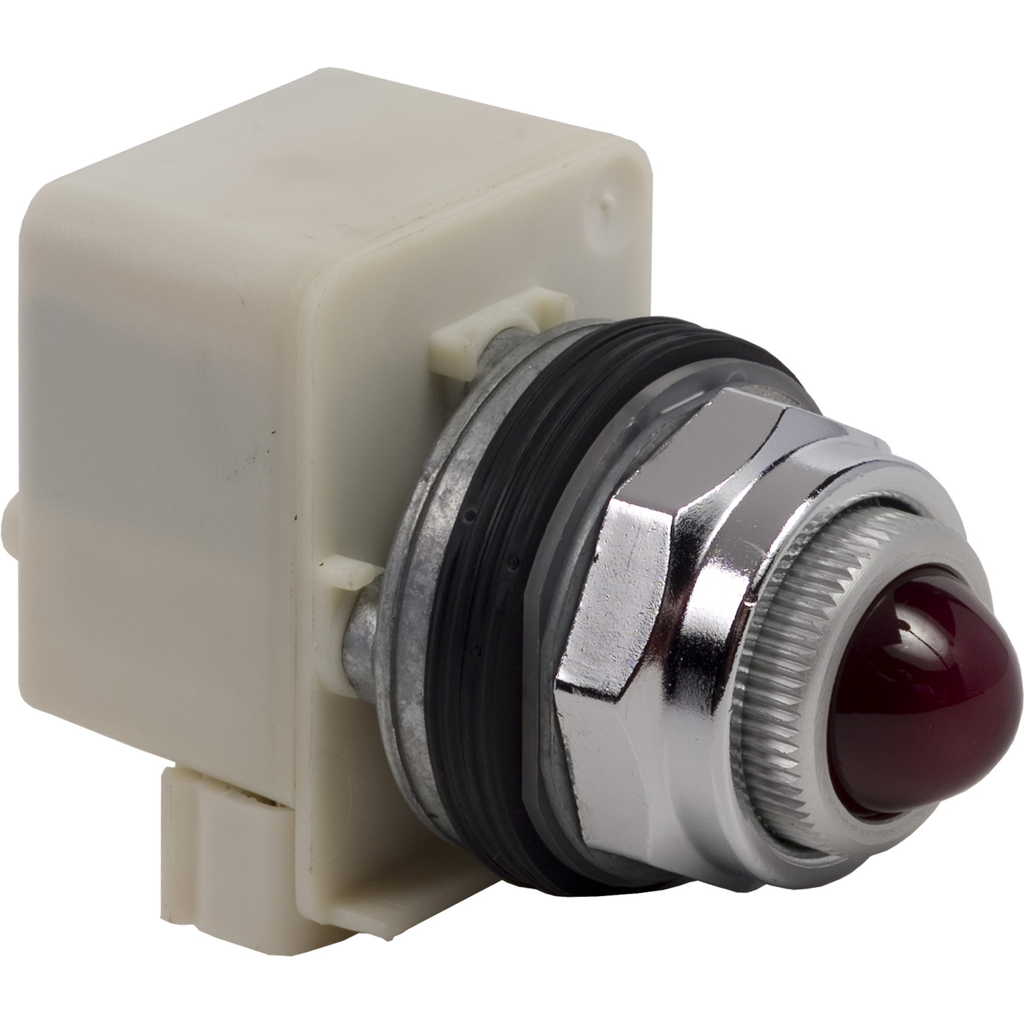

Product image for Square D 9001KP1R6 30 mm 120 VAC Red Lens Metal Bezel Standard Round Pilot Light
Image thumbnail 0
Image thumbnail 1

Email

Square D 9001KP1R6 30 mm 120 VAC Red Lens Metal Bezel Standard Round Pilot Light

Manufacturer: Square-D / Schneider | Catalog # 9001KP1R6 | Cooper Electric Part # 439717

$168.68 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
This Harmony 9001K, red pilot light with transformer and glass dome is supplied with 110V AC. It has a chromium-plated metal bezel. This single component pilot light with transformer provides clear visual feedback on the status of your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Technical Information

Applications
SIGNALLING
Base
BA 9s
Bezel Material
Metal
Lens Material
Glass
Lens Type
Domed Glass
Light Source
Incandescent
Size
30 mm
Style
BA 9S,NORMAL
Type
Pilot light
Voltage
110...120 Volt AC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
K

General Product Info

12-Digit UPC
785901860112
Color
Red
Environmental Conditions
NEMA 1/2/3/3R/4/6/12/13
Finish
Chromium
Fixture Type
INCANDESCENT
GTiN
00785901860112
Product UPC
78590186011
Shape
Dome

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA LR25490 Class 3211 03,UL Listed File E42259 CCN NKCR
Country of Origin
Mexico
US Rated Supply Voltage
  • 110...120 V AC
Connections Terminals
  • screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Light Block Supply
  • via transformer 120 V AC 50/60 Hz
  • via integral transformer 110 V AC 50/60 Hz
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP1R6_CAD&p_File_name=9001KP1R6_3D.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP1R6_CAD&p_File_name=9001KP1R6_2D Front View.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP1R6_CAD&p_File_name=9001KP1R6_2D Front View.dxf
  • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP1R6_CAD&p_File_name=9001KP1R6_2D Right Side View.dwg
  • https://download.schneider-electric.com/files?p_Doc_Ref=9001KP1R6_CAD&p_File_name=9001KP1R6_2D Right Side View.dxf
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Accessories
  • 9001KA1
  • 9001KA2
  • 9001KA3
  • 9001KA5
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Accessory Products
  • 9001KA1
  • 9001KA2
  • 9001KA3
  • 9001KA5
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Customizable
  • 1
  • no
Lens Type
  • domed glass
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
