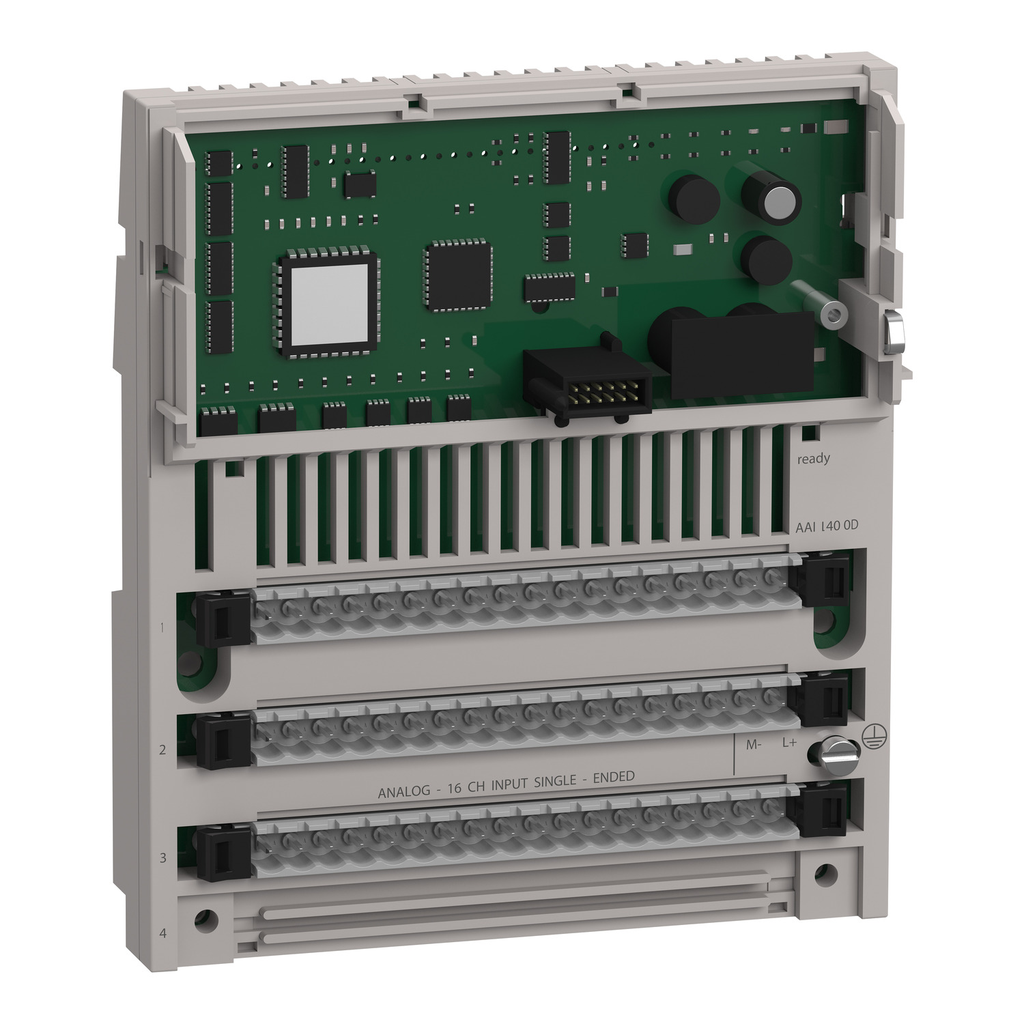

This product is part of the Modicon Momentum range, an offer of controllers for IP20 monoblock I/Os. This analog input base offers 16 inputs with a full 16bit signed resolution. It offers analog input ranges from 4mA to 20mA, .10V, .5V. There is an isolation between channels and ground at 1780V AC, supply and ground at 500V. It is furnished with 2 removable terminal blocks for electrical connection. It features 16 LEDs for channel status signaling. Its dimensions are 141.5mm (width) x 47.5mm (depth) x 125mm (height). It weighs 0.215kg. It is suitable for infrastructures and energy, material handling and simple machine control applications. This product is certified by CE, CSA, FM Class 1 Division 2 and UL. It is suitable for wall mount. Momentum is a flexible, modular family of components that easily snaps together and can be configured for a wide range of distributed I/O and control applications. System with 4 fundamental components that easily snaps together in various combinations to form versatile control systems or subsystems.
