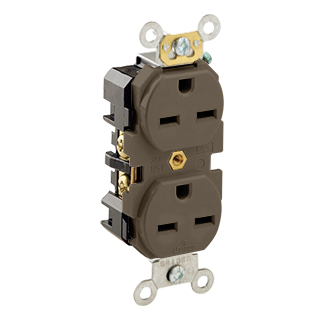

Product image for LEV 5662 DUPLEX RECEPT
Image thumbnail 0
Image thumbnail 1
Email

LEV 5662 DUPLEX RECEPT

Manufacturer: Leviton Mfg Co | Catalog # 5662 | Cooper Electric Part # 438167
$55.56/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure

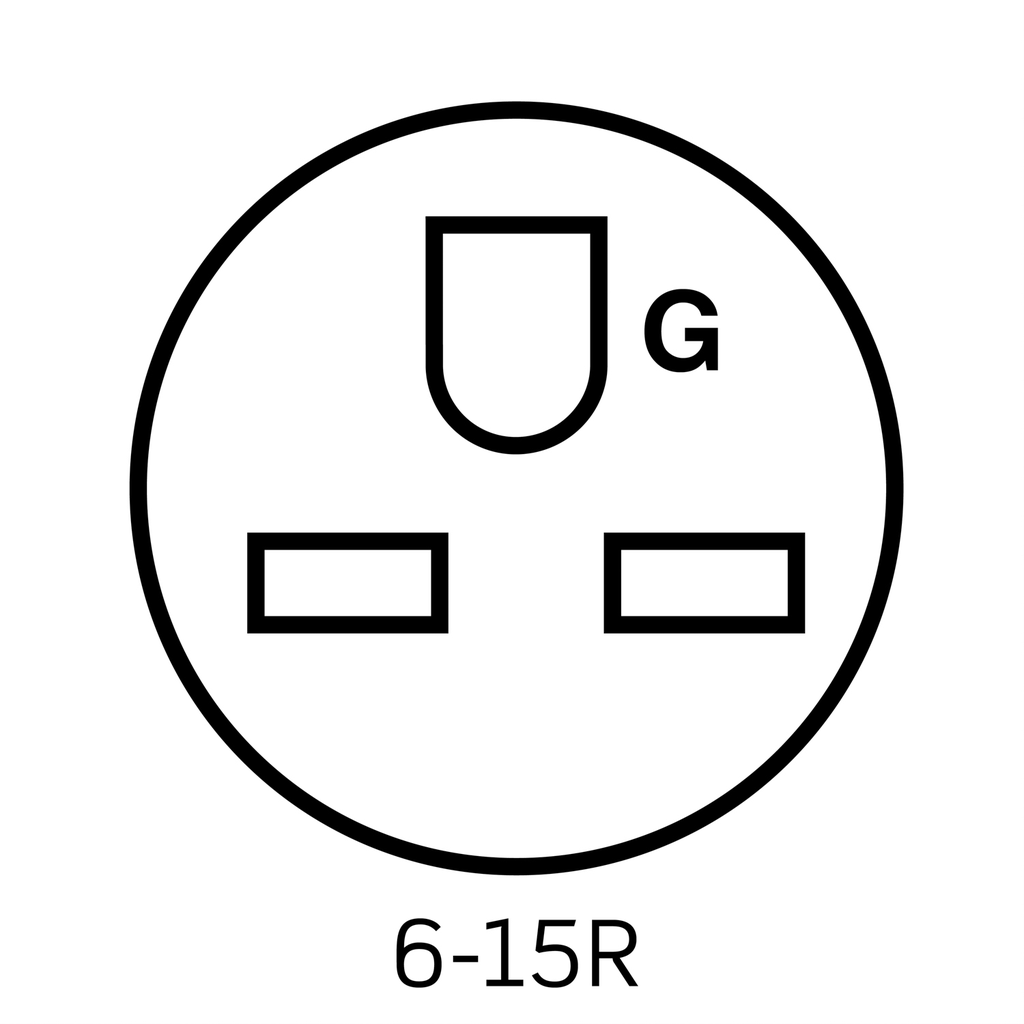

Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 250 Volt, Back or Side Wire, NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding - Brown

Technical Information

Amperage
15 Amp
Applications
Commercial
Body Material
Thermoplastic Nylon
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Contact Material
Brass,Brass
Contact Type
Triple-Wipe
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1-1/2 hp
Insulation Material
Brass,Brass-Plated
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
6-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass,Plated Brass,Plated Steel
Screw Size
10-32,8-32
Size
46 H x 1.55 W x 19 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-10 AWG
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Duplex Outlet,Straight Blade
Voltage
250 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477819388
Color
Brown
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477819388
Product UPC
07847781938

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Please Contact Customer Service
NEMA
  • 6-15R
Color Variations
  • Ivory
Features
  • Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
