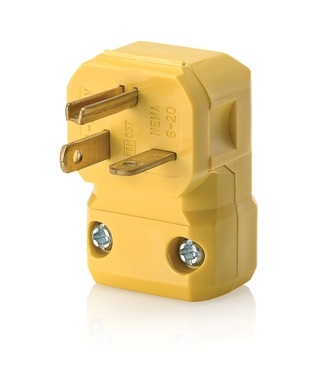

Product image for LEV 5456-VA YL PYTHON PLUG AGL 2PO
Email

LEV 5456-VA YL PYTHON PLUG AGL 2PO

Manufacturer: Leviton Mfg Co | Catalog # 5456-VA | Cooper Electric Part # 438157
$48.31/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
20 Amp, 250 Volt, NEMA 6-20P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Python Angle - Yellow

Technical Information

Amperage
20 Amp
Applications
For Industrial Applications
Blade Type
Solid Brass
Body Material
Super Tough Nylon
Conductor Size
18-10 AWG
Contact Material
Solid Brass
Cord Size
0.25 - 0.655 in
Device Type
Straight Blade Plug
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Material
Nylon
Mounting Type
Cable
NEMA
WD-6
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Size
2.17 H x 1.21 W x 1.41 D IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Type
Angled
Voltage
250 Volt
Wire Count
3
Wire Size
18-10 AWG 0.25-0.655 in

Manufacturer Information

Brand
Leviton
Sub Brand
Python

General Product Info

12-Digit UPC
078477055120
Color
Yellow
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 to 60) C
GTiN
00078477055120
Product UPC
07847705512

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • When it comes to the demanding nature of todays commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton's Python straight-blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Pythons exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in todays faced-paced world where lost minutes on a job can translate into lost profits.
NEMA
  • 6-20P
