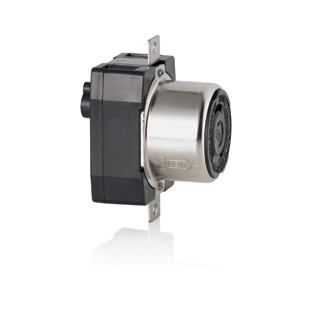

Product image for Leviton 3769 50 Amp 250 VDC/600 VAC Non-NEMA 3-Pole 4-Wire Black and White Grounding Locking Flush Mount Receptacle
Email

Leviton 3769 50 Amp 250 VDC/600 VAC Non-NEMA 3-Pole 4-Wire Black and White Grounding Locking Flush Mount Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 3769 | Cooper Electric Part # 438023
$232.37/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
50 Amp, 250 Volt DC/600 Volt AC, Non-NEMA, 3P, 4W, Black & White Locking Flush Mount Receptacle, Industrial Grade, Grounding - BLACK

Technical Information

Amperage
50 Amp
Applications
For Commercial
Base Material
Nylon,Nylon
Conductor Size
10-4 AWG
Connection Type
Back and Side Wired
Contact Material
Brass
Device Type
Locking Receptacle
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial
Grounding
Grounding
Material
Nylon
Max Voltage
250 V
Mounting Type
Box, Flush
NEMA
WD-6
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
130 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass,Stainless Steel 302,Stainless Steel 304
Screw Type
Stainless Steel
Size
3.69 H x 2.13 W x 1.14 D IN
Standard
UL
TC Connection
Back & Side Wired
Temperature Rating
-40 to 75 degrees C
Temperature Rise
150 %
Terminal Size
#10-6 AWG
Termination Type
Back Wire,Side Wire
Type
LOCKING RECEPTACLE
Voltage
600 Volt
Wire Count
4
Wire Size
10-4 AWG; 0.68-1.2 in

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477804445
Color
Black/White
Environment
Dry
Environmental Conditions
Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 Per UL94)
GTiN
00078477804445
Product UPC
07847780444

Dimensions

Warranty Length
Lifetime

Certifications and Compliance

Certifications
UL
Country of Origin
Mexico
Features
  • One piece contacts reduce friction and overheating
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • Ratings and NEMA I.D. permanently marked on device
  • Industry exclusive limited lifetime warranty
NEMA
  • Non-NEMA
