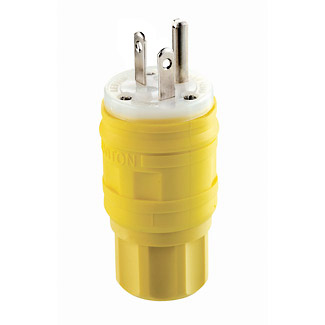

Product image for Leviton 14W33 125 Volt 20 Amp 2-Pole 3-Wire NEMA 5-20P Yellow Thermoplastic Vulcanizate Grounding Polarized Straight Blade Plug
Image thumbnail 0
Image thumbnail 1
Email

Leviton 14W33 125 Volt 20 Amp 2-Pole 3-Wire NEMA 5-20P Yellow Thermoplastic Vulcanizate Grounding Polarized Straight Blade Plug

Manufacturer: Leviton Mfg Co | Catalog # 14W33 | Cooper Electric Part # 437990
$69.10/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
20 Amp, 125 Volt, NEMA 5-20P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Wetguard - YELLOW

Technical Information

Actuator
Stainless Steel 300,Stainless Steel 300
Amperage
20 Amp
Applications
Industrial
Blade Type
Nickel-Plated Brass,Nickel-Plated Brass
Body Material
EPTR Rubber
Conductor Size
18-10 AWG
Connection Type
Screw Terminal
Cord Type
S,SO,SOW,ST
Device Type
Straight Blade Plug
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
IP Rating
IP66,IP67,IP69K
Material
TPV
Mounting Type
Cable
NEMA
WD-6
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
1.50 Diameter X 2.71 L IN
Standard
ANSI C-73
TC Connection
Screw, 6 Terminals
Temperature Rise
200 %
Torque
12 lb-in
Type
Straight Blade,Watertight Plug
Voltage
125 Volt
Wire Count
3
Wire Size
16-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Wetguard®

General Product Info

12-Digit UPC
078477848319
Color
Black on Yellow
Environment
Wet
Environmental Conditions
Operating Temperature Range (-40 to 60) C
GTiN
00078477848319
Product UPC
07847784831

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • Black
Features
  • BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
  • WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
  • UNIQUE DESIGN- Exclusive tongue and groove design provides superior ingress protection from water, dirt and debris
  • HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
  • THE BRAND YOU TRUST- Backed by a lifetime warranty
NEMA
  • 5-20P
