Blackburn ADR80-34 Extruded Aluminum Lug

Manufacturer: Blackburn / Thomas & Betts | Catalog # ADR80-34 | Cooper Electric Part # 435919
$14,529.51/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Type ADR-ALCUL Three-Conductor, Four-Hole Mount for Conductor Range Max 800 kcmil, Min 300 kcmil

Technical Information

Conductor Size
300-800 kcmil
Conductor Type
Copper
Material
Aluminum
Number of Conductors
3
Standard
UL E9809
Type
Dual Rated
Voltage
600 Volt

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786610440
Finish
Tin Plated
GTiN
00783786610440
Product UPC
78378661044

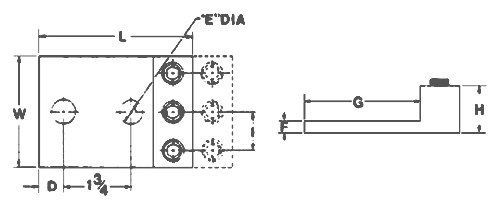

Dimensions

Height
1-7/8 Inch
Length
6-3/16 Inch
Width
4-1/2 in
Notes
  • Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).
  • NEMA spacing 1 3/4 inch centers.
  • UL 486B tested, AL9CU rated
Certifications
  • CSA
  • UL
Features
  • Easy Installation - no special tools required.
