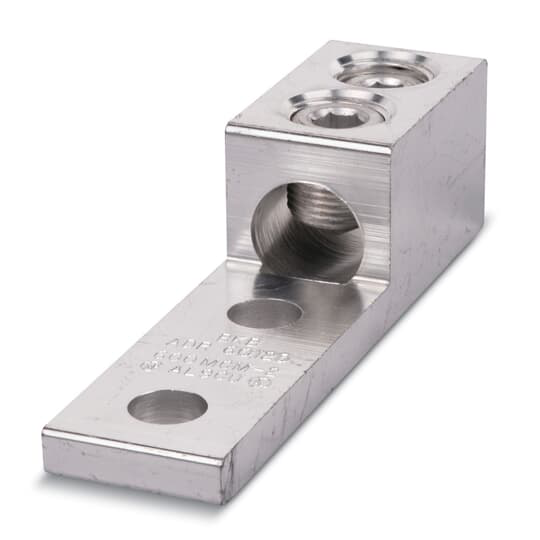

Product image for Blackburn ADR80-12D Extruded Aluminum Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Blackburn ADR80-12D Extruded Aluminum Lug

Manufacturer: Blackburn / Thomas & Betts | Catalog # ADR80-12D | Cooper Electric Part # 435916
$4,419.38/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page

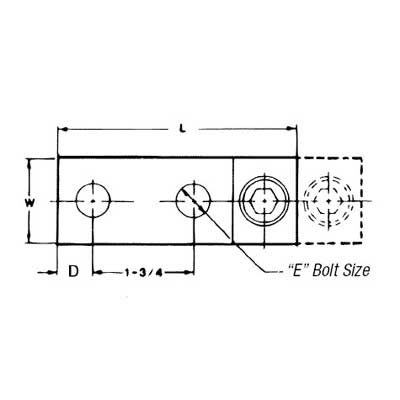

Type ADR-ALCUL Single-Conductor, Two-Hole Mount, Conductor Range (AL or CU) Max 800 kcmil, Min 300 kcmil, 1/2 Inch Bolt Hole, NEMA Spacing 1-3/4 Inch Centers, Length 6-3/19 Inch, Tin Plated

Technical Information

Conductor Size
300-800 kcmil
Conductor Type
Aluminum
Material
Aluminum
Mounting Hole Size
1/2 in
Number of Conductors
1
Standard
UL E9809
Type
Dual-Rated

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786610396
Finish
Tin Plated
GTiN
00783786610396
Product UPC
78378661039

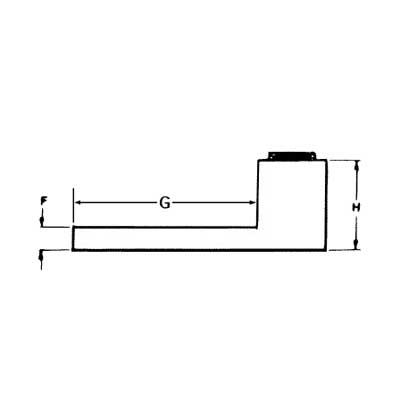

Dimensions

Height
1-7/8 Inch
Length
6-3/16 Inch
Width
1-3/4 in
Features
  • Easy Installation - no special tools required.
Notes
  • Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).
  • NEMA spacing 1 3/4 inch centers.
