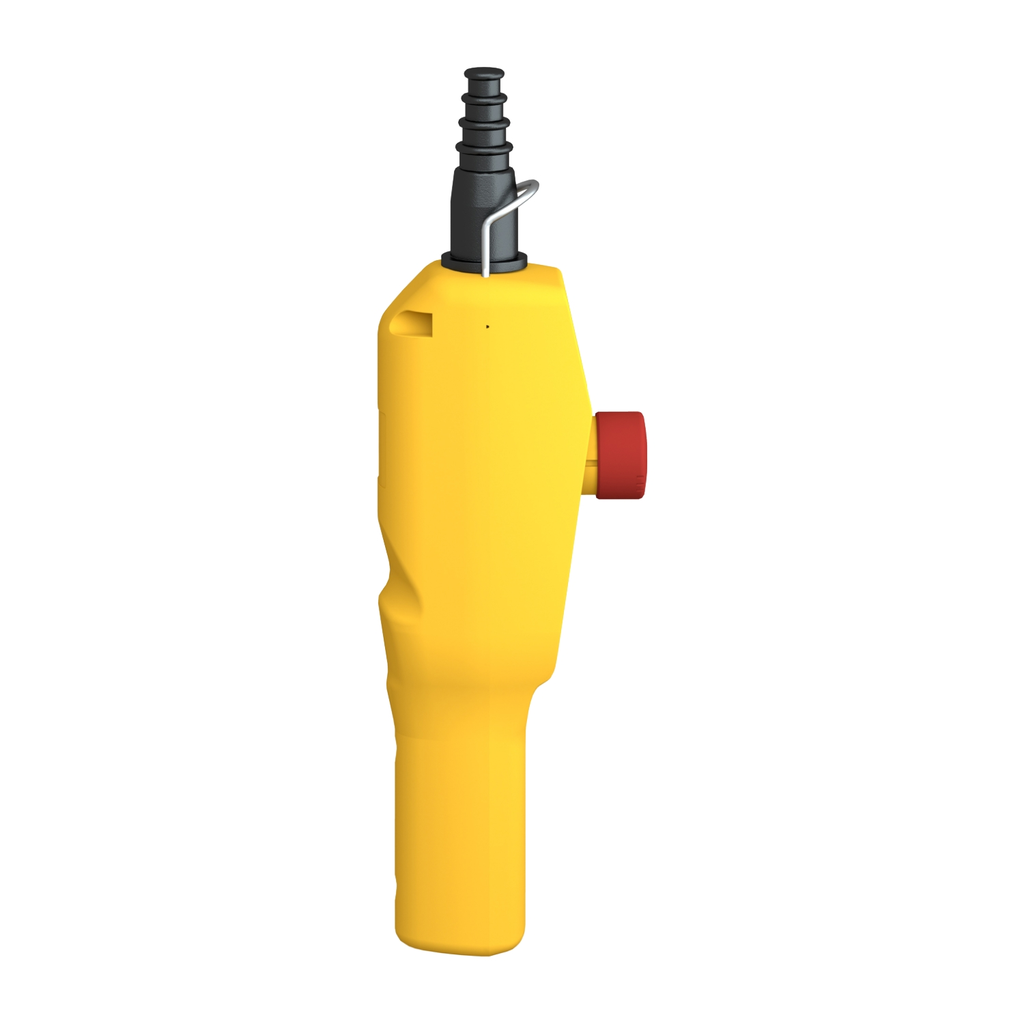

Image thumbnail 5
Image thumbnail 6
Email

Square D XACA2013 600 VAC 10 Amp NEMA 4/4X/5 Yellow Polypropylene Pendant Station

Manufacturer: Square-D / Schneider | Catalog # XACA2013 | Cooper Electric Part # 435383
$118.34 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This Harmony XAC, yellow pendant station for hoist motor with pistol grip has single speed, operates with slow break mechanism. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 2 push buttons and 1 emergency stop with "raise" and "lower" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its ergonomic pistol grip allows single handed control of your hoist and crane. Its wide range of operating temperatures from -25.C to 70.C allows versatility in usage of product.

Technical Information

Actuator
(2) PUSHBUTTONS (UP/DOWN ARROWS)
Amperage
10 Amp
Applications
Control circuit;Control of single speed hoist motor
Cable Entry
7-15 mm
Contact Configuration
1 N.O. (PER OPERATOR) - 1 N.C. (FOR E-STOP)
Contact Rating
Slow-break
Enclosure
Polypropylene
Enclosure Material
Polypropylene
Enclosure Type
Complete Ready For Use
Material
Polypropylene
Net Weight
0.31 kg
Operating Force
13-15 N
Operating Temperature
-13158 degrees F (-2570 degrees C)
Standard
CSA C22.2 No 14,EN/IEC 60204-32,EN/IEC 60947-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
Double insulated;Intuitive;Pendant control station
Voltage
600 Volt
Wattage
40 Watt DC-13 1000000 CYCLES 60 CYC/MN 120 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-48 Watt DC-13 1000000 CYCLES 60 CYC/MN 48 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C-65 Watt DC-13 1000000 CYCLES 60 CYC/MN 24 Volt 0.5 INDUCTIVE IEC 60947 - 5-1 APPENDIX C

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XACA pistol grip

General Product Info

12-Digit UPC
891105587776
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110558777
Product UPC
78590155877
Weight
0.31 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL
Country of Origin
France
Connections Terminals
  • screw clamp terminals, 1 x 2.5 mm² with or without cable end
  • screw clamp terminals, 2 x 1.5 mm² with or without cable end
Overvoltage Category
  • class II conforming to IEC 61140
CAD
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_CAD_2023
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013.stp
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013_2D-back.DWG
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013_2D-back.DXF
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013_2D-bottom.DWG
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013_2D-bottom.DXF
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013_2D-front.DWG
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013_2D-front.DXF
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013_2D-isometric.DWG
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013_2D-isometric.DXF
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013_2D-left.DWG
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013_2D-left.DXF
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013_2D-right.DWG
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013_2D-right.DXF
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013_2D-top.DWG
  • https://download.schneider-electric.com/files?p_Doc_Ref=XACA2013_NEW_2024&p_File_name=XACA2013_2D-top.DXF
IP Degree Of Protection
  • IP65 conforming to IEC 60529
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Control Button Type
  • first push-button 1 NO raise, slow
  • second push-button 1 NO lower, slow
  • stop push-button Ø 30 mm 1 NC latching
Carbon Footprint Of The Installation Phase A5
  • 0.0019296781
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.3 kg CO2 eq.
  • 0.3496132867
Cable Entry
  • rubber sleeve with stepped entry 7-15 mm
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 2 kg CO2 eq.
  • 1.9164710956
UI Rated Insulation Voltage
  • 600 V 3)IEC 60947-1
Rated Operational Power In W
  • 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C
  • 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C
  • 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Accessories
  • ZB2BE101
  • ZB2BE102
  • XENG1491
  • XENG3781
Vibration Resistance
  • 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Market Segmentation
  • Commercial
  • Industrial
Terminal Identifier
  • (11-12)NC
  • (13-14)NO
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 0 kg CO2 eq.
  • 0
Accessory Products
  • ZB2BE101
  • ZB2BE102
  • XENG1491
  • XENG3781
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Carbon Footprint Of The Distribution Phase A4
  • 0.0809687879
  • 0.1 kg CO2 eq.
Short Circuit Protection
  • 10 A fuse protection cartridge gG
Contact Code Designation
  • A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A
  • A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A
  • Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
  • Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Shock Resistance
  • 100 gn IEC 60068-2-27
Product Compatibility
  • ZB2BE101 for each direction
  • ZB2BE102 for emergency stop
UIMP Rated Impulse Withstand Voltage
  • 6 kV IEC 60947-1
