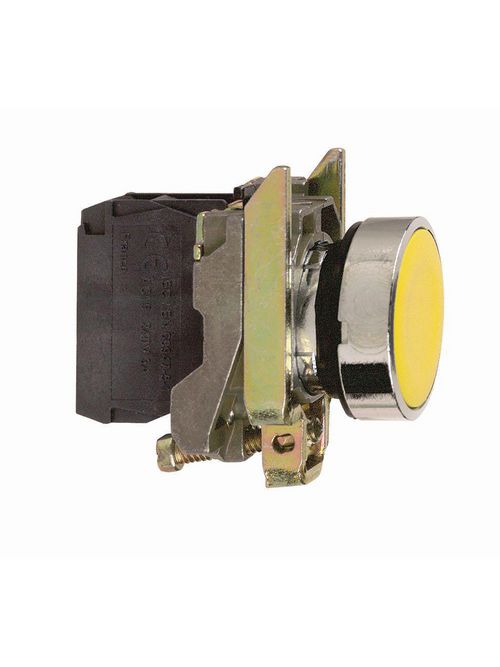

Product image for Square D XB4BA51 22 mm 600 VAC 1.2 Amp 1NO Yellow Round Momentary Flush Non-Illuminated Push Button
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Email

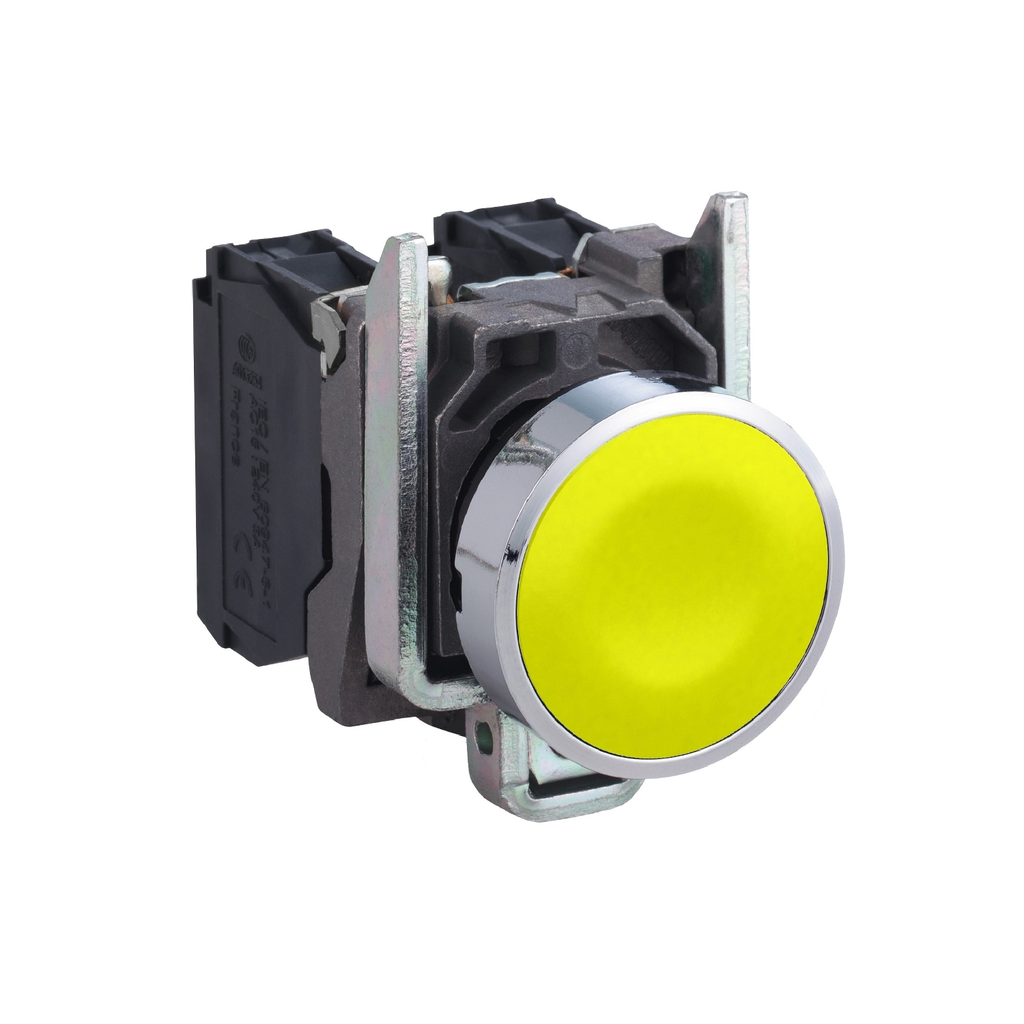

Square D XB4BA51 22 mm 600 VAC 1.2 Amp 1NO Yellow Round Momentary Flush Non-Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # XB4BA51 | Cooper Electric Part # 435345
$28.30/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Tuesday 7:00am ET
0 available

For Delivery

Not in local stock *
Check another branch
*Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This Harmony XB4 modular yellow push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Technical Information

Action
Slow-break
Actuator
SPRING RETURN,YELLOW FLUSH, UNMARKED
Amperage
10 Amp
Bezel Material
Chromium Plated Metal
Contact Configuration
1 NO
Contact Material
Silver Alloy
Contact Rating
AC15 - DC13
Enclosure
NEMA 4/4X/13
Head Type
Standard
Indicator
YELLOW
Net Weight
0.08 kg
Operating Force
3.8 N
Operating Temperature
-40-70 Adegrees C
Size
2.05 in
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
Push-button

Manufacturer Information

Brand
Schneider Electric
Sub Brand
XB4

General Product Info

12-Digit UPC
389110118387
Color
Yellow
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110118384
Product UPC
78590138050
Weight
0.08 kg

Dimensions

Depth
52 mm
Height
47 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
Prop 65
  • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • ZBYF2101
  • ZBYFP2101
  • ZB4BZ62
Cross Sell Products
  • XAPD1501
Spare Part Products
  • ZB4BZ101
  • ZB4BA5
