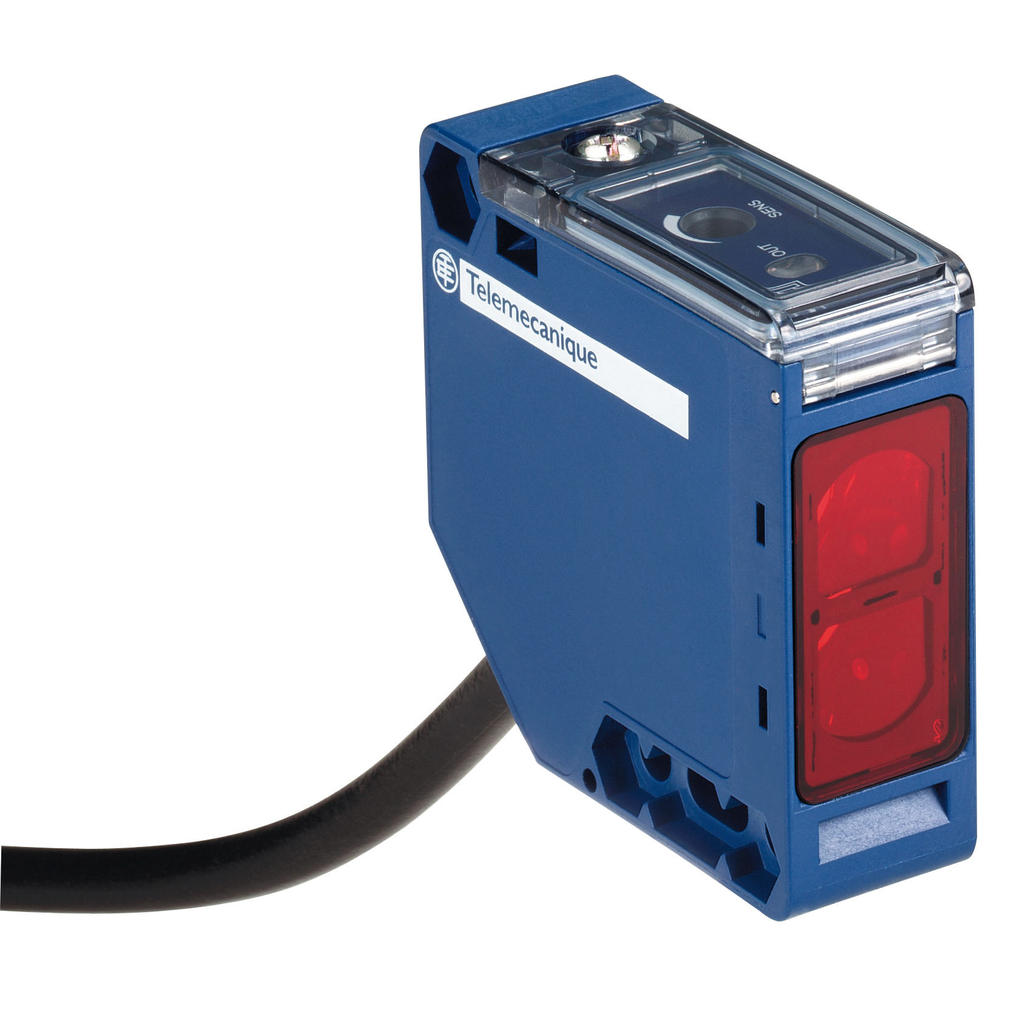

Product image for TES XUK0ARCTL2 Photoelectric sensors XU, XUK, multi, Sn 0...30 m, 24...240VAC/DC, cable 2 m
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

TES XUK0ARCTL2 Photoelectric sensors XU, XUK, multi, Sn 0...30 m, 24...240VAC/DC, cable 2 m

Manufacturer: TES Electric | Catalog # XUK0ARCTL2 | Cooper Electric Part # 434737
$152.32/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This compact design multi mode photo-electric sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This multi-mode rectangular photoelectric sensor has a plastic body, is mountable directly on a surface or bracket, thanks to its 3 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and troubleshoot issues. IP65 protection makes this product ready for the harshest environments. It can operate in very cold (-25.C) and hot environments (+55.C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Technical Information

Amperage
3 Amp COS ? = 1 FOR 0.5 MILLION CYCLES AT 1 OPERATING CYCLE PER SECOND AT 250 V)
Applications
-
Enclosure
IP65 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT
Enclosure Material
PBT
Material
Plastic
Net Weight
0.175 kg
Operating Cycles
<= 20 HZ
Operating Temperature
-25-55 degrees C
Output
1 NO OR 1 NC PROGRAMMABLE,DISCRETE,RELAY
Sensing Range
4-4 M POLARISED REFLEX NEED REFLECTOR XUZC50-30-30 M THRU BEAM NEED A TRANSMITTER XUK0ARCTL2T-0.28-0.28 M DIFFUSE WITH BACKGROUND SUPPRESSION-0.8-0.8 M DIFFUSE,> 0...98.43 FT (> 0...30 M)
Size
18 MM,50 MM,50 MM
Storage Temperature
-40-70 degrees C
TC Connection
CABLE
Type
COMPACT 50 X 50,GENERAL PURPOSE MULTIMODE,MULTIMODE,PHOTO-ELECTRIC SENSOR
Voltage
24...240 Volt AC-24...240 Volt DC
Wattage
3 Watt AC/DC

Manufacturer Information

Brand
Telemecanique
Sub Brand
OSISENSE

General Product Info

12-Digit UPC
389110160423
Environmental Conditions
WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR)
GTiN
03389110160420
Product UPC
78590151017
Weight
0.39 lb

Dimensions

Cable Length
2 m
Depth
50 mm
Height
50 mm
Warranty Length
18 mth
Width
18 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
Indonesia
