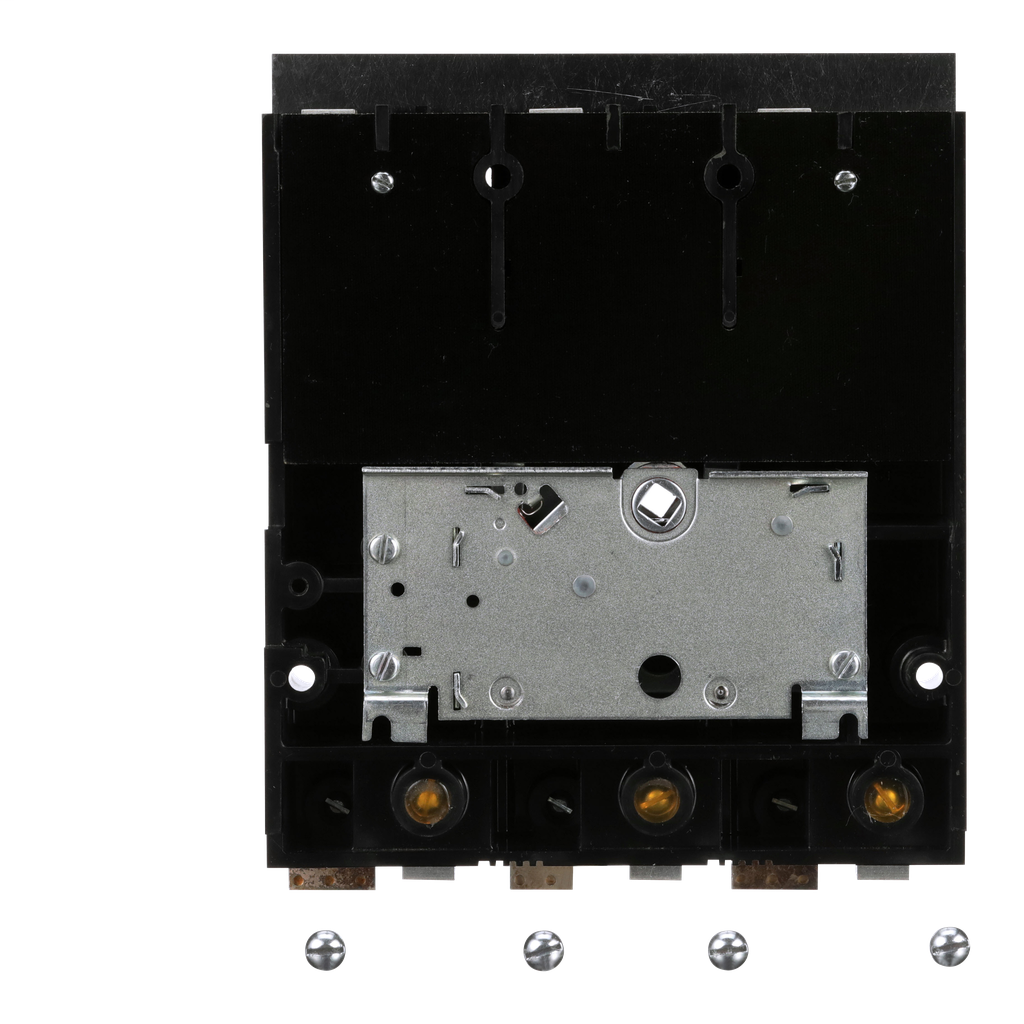

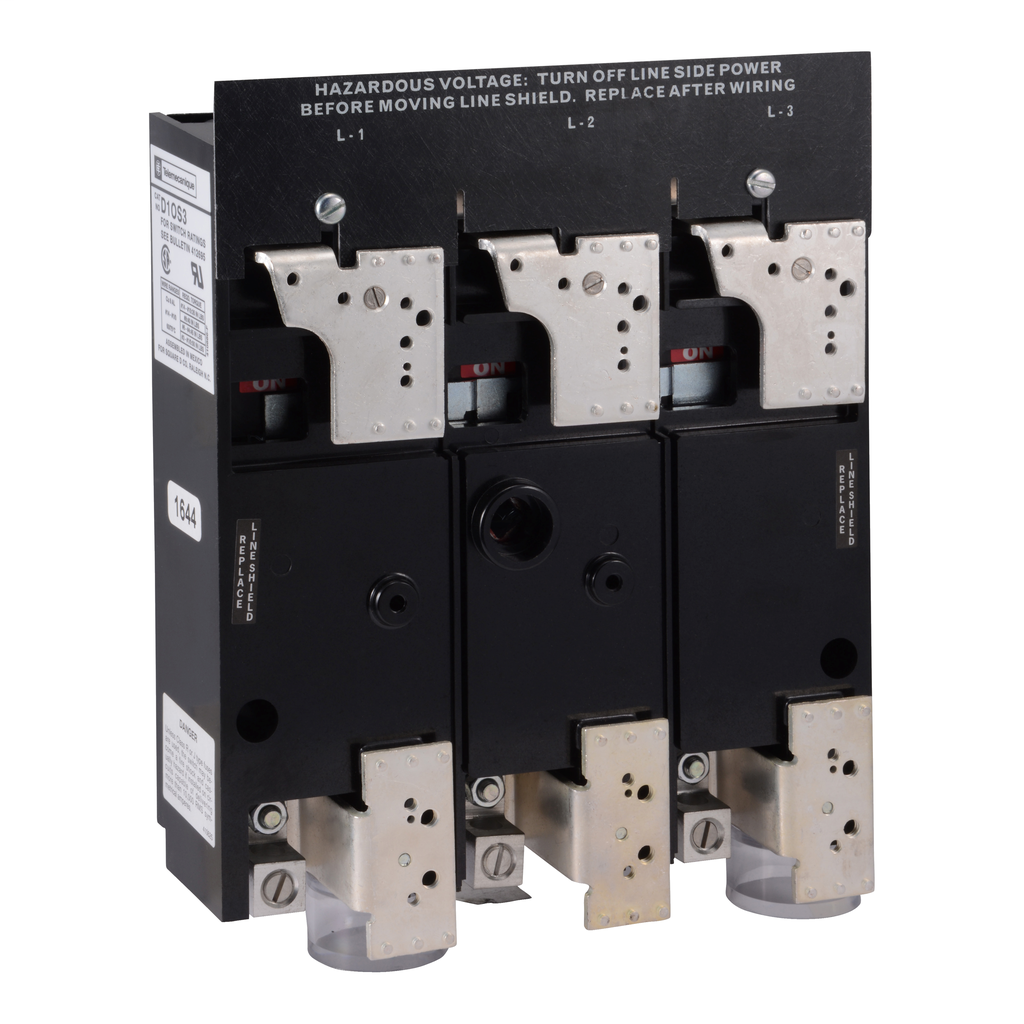

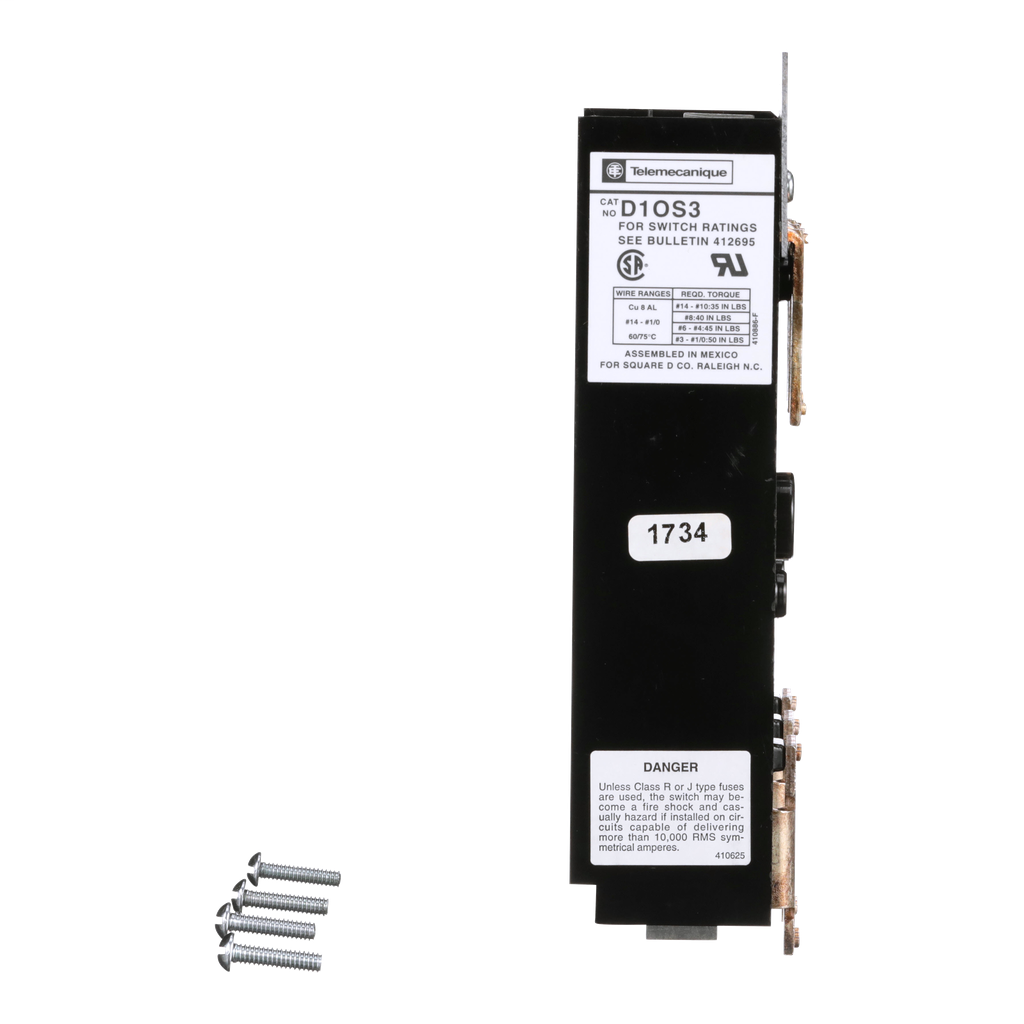

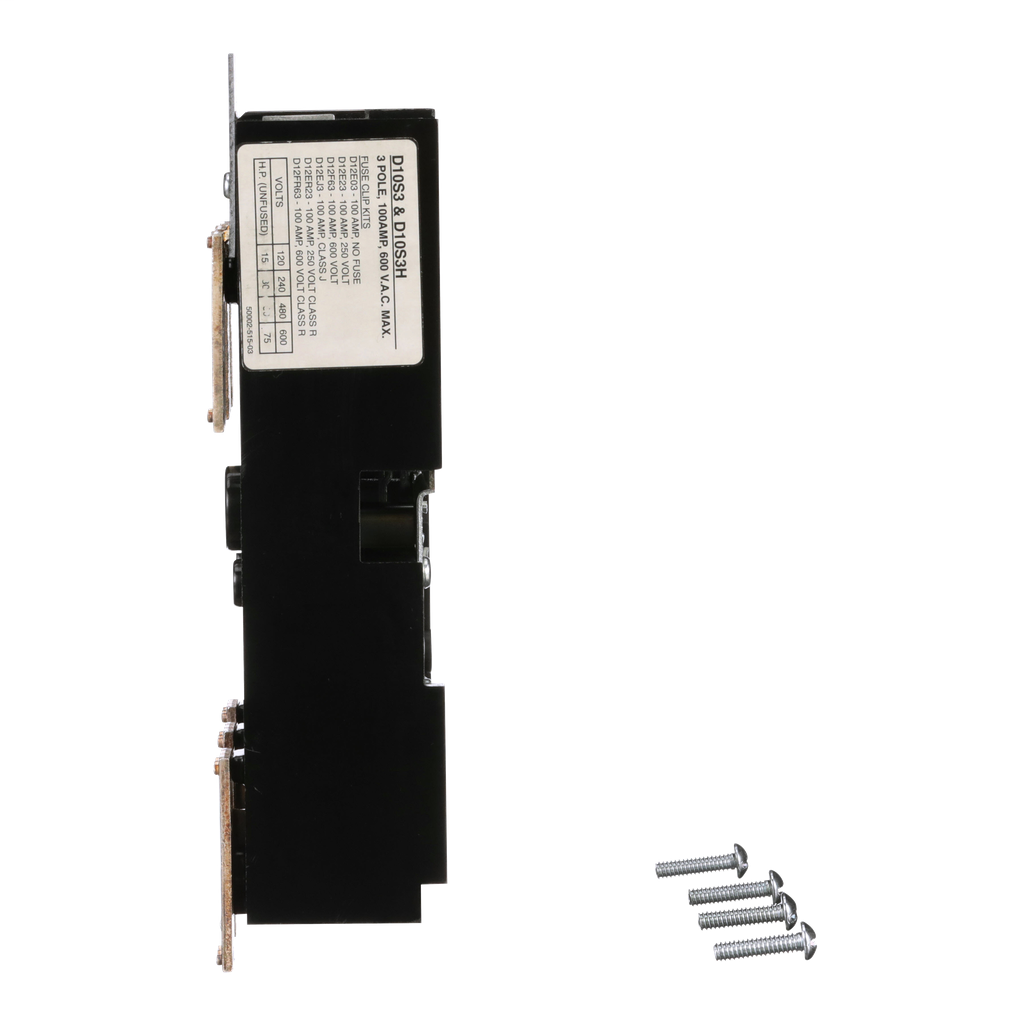

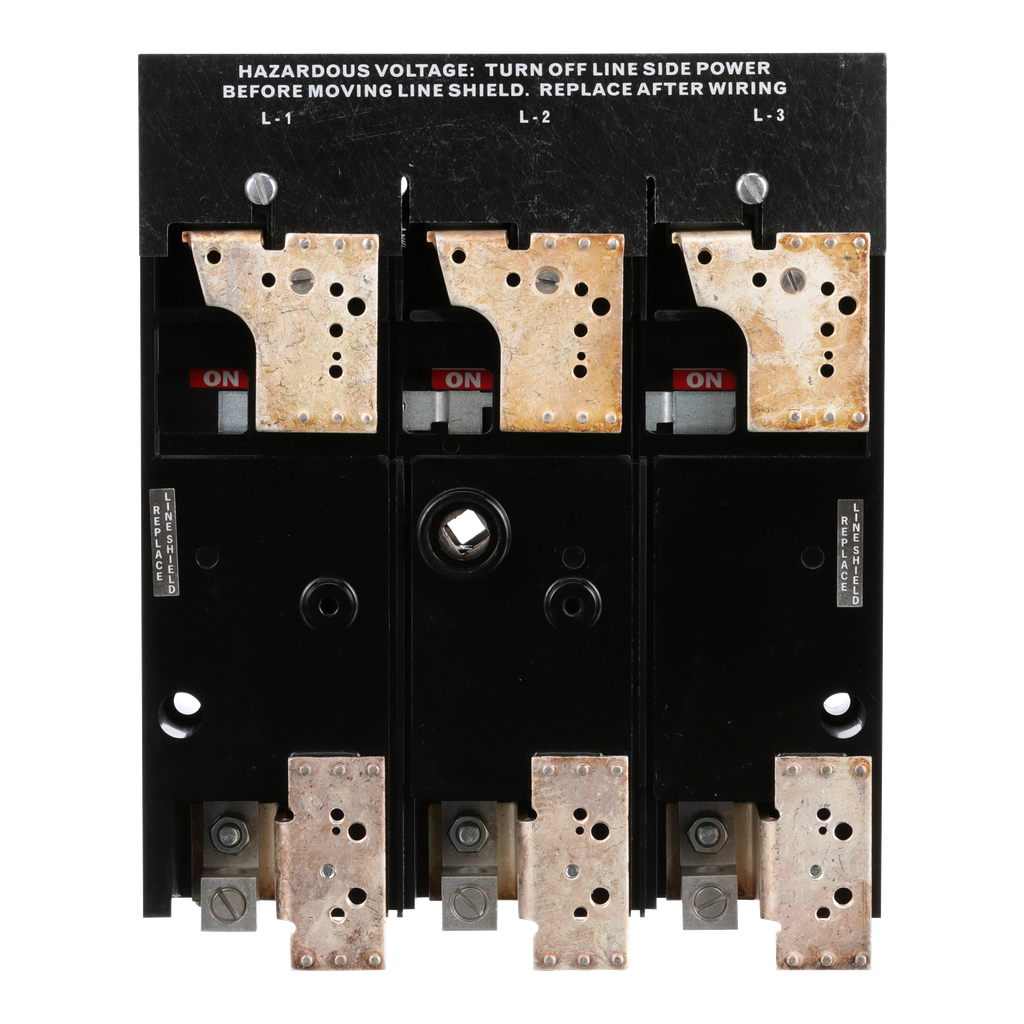

Square D D10S3 600 VAC 100 Amp 75 Hp Non-Fusible Disconnect Switch

Manufacturer: Square-D / Schneider | Catalog # D10S3 | Cooper Electric Part # 431234
$984.46/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2
D10 disconnect switches are operated by a cast metal handle operator that is lockable in the Off position. This 100A disconnect switch is designed to work with NEMA size 3 starters. This disconnect switch is without any fuse clips or shorting straps. Disconnect switch is without service entrance rating. Disconnect switch has horsepower ratings of 15 HP at 120 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC and 75 HP at 600 VAC. Switch is UL component recognized and CSA certified. Switch is UL component recognized and CSA certified.

Technical Information

Actuator
D11 HANDLE OPERATOR (SOLD SEPARATELY)
Amperage
100 Amp
Applications
DISCONNECT SWITCH, 100A RATED NEMA SIZE 3
Current
100 Amp
Indicator
VISIBLE ON/OFF
Line Rated Current
100 A
Mounting Type
Door
NEMA Size
3
Number of Poles
3 Pole
Size
3
TC Connection
DIRECT
Type
DISCONNECT SWITCH
Voltage
600 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D
Sub Brand
SCHNEIDER ELECTRIC

General Product Info

12-Digit UPC
785901118619
GTiN
00785901118619
Product UPC
78590111861

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen & Reproductive harm. For more information go to www.p65warnings.ca.gov
Country of Origin
Mexico
