Sensor Switch CMR PDT 9-1/4 Hp 120/277 VAC White 360 Degrees Ceiling Mount Passive Infrared/Microphonics Sensor

Manufacturer: Lithonia Lighting | Catalog # CMR PDT 9 | Cooper Electric Part # 431086
$171.15/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
7 available

For Delivery

Order by Thursday 5:00pm ET for delivery Friday
Not in local stock *
Check another branch
Product Spec Sheet
Ceiling mount, line voltage, Dual Technology, Standard range 360deg, small motion 360deg, SKU - 184CHA

Technical Information

Amperage
80 mA
Applications
For Automotive, Parking, Education, Government, Healthcare, Hospitality, Manufacturing, Offices and Banks, Power and Gas, Religious, Residential, Retail, Roadways, Bridges and Tunnels, Sports and Recreation, Transportation, Warehouses
Dimmable?
Yes
Lamp Life
87,600 hr
Lens Material
Plastic
Material
Plastic
Mounting Type
Flush
Power Source
Hardwired
Sensing Range
360 degrees
Temperature Rating
14 - 160 degrees F
Type
Passive Infrared/Microphonics
Voltage
120-277 VAC

Manufacturer Information

Brand
Acuity Brands Lighting
Sub Brand
Sensor Switch

General Product Info

12-Digit UPC
745975809448
Color
White
Environment
Indoor
Environmental Conditions
Indoor
Finish
Matte
GTiN
00745975809448
Product UPC
74597580944
Shape
Round
Weight
4.005 lb

Dimensions

Height
1-1/2 Inch
Length
4-1/2 Inch
Warranty Length
5 yr
Width
2.500 in

Certifications and Compliance

Country of Origin
Mexico,Mexico
Features
  • APPLICATION: For rooms with obstructions, these sensors offer Passive Dual Technology (PDT), which combines Microphonics noise detection and passive infrared (PIR) motion detection
  • ENERGY SAVINGS: Self-contained relay (no power pack needed)
  • COMPATIBLE: Enjoy the flexibility and convenience of programming sensor settings with your smartphone using the SensorSwitch Mobile App through camera flash programming
  • RATINGS: Energy Management Equipment, UL916 (E167435), RoHS compliant
  • COVERAGE: 360 degree coverage
  • MOUNTING: 12 ft radial coverage when mounted to standard 9 ft ceiling; 8-15 ft mounting heights provide 10-20 ft radial coverage
  • MOTION DETECTION: Best choice for small motion detection
  • LAMP: 100-hour lamp burn-in timer mode
  • WARRANTY: 5-Year Limited Warranty

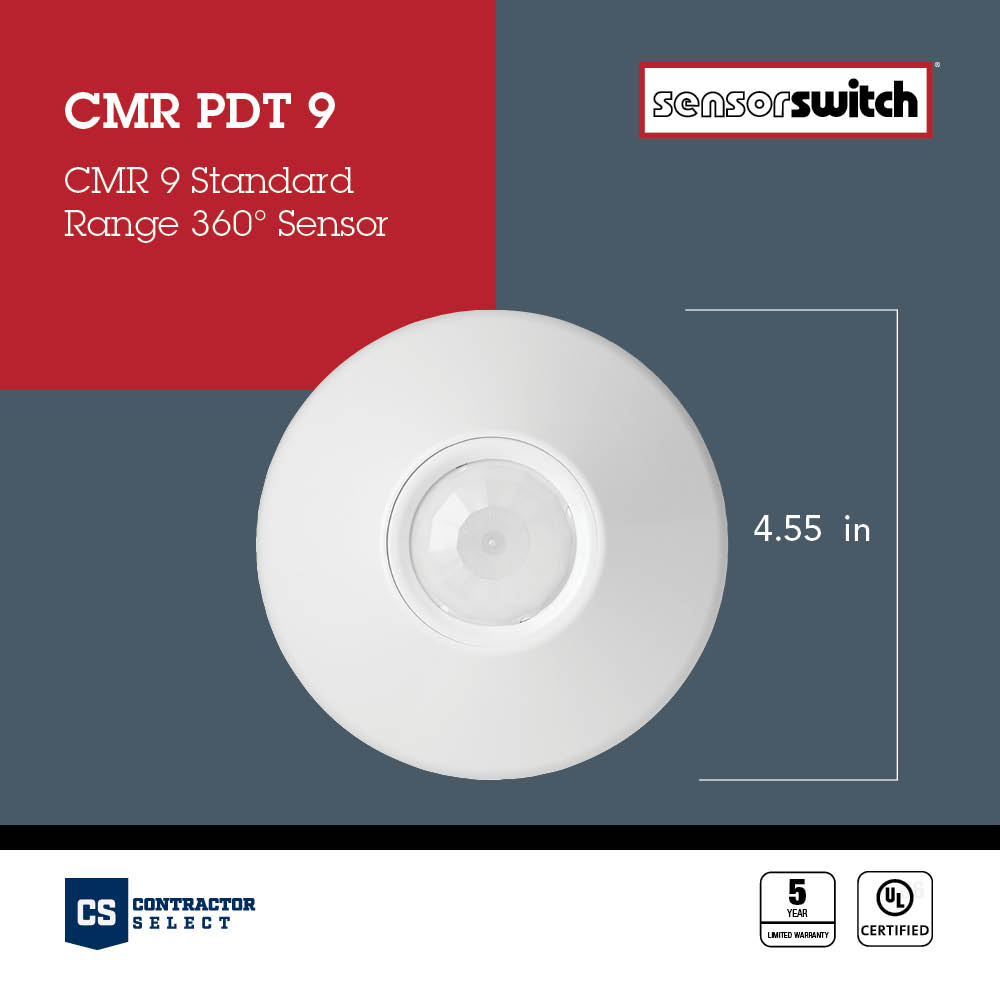

  • DIMENSIONS: 4.55 in W x 1.55 in D (116mm x 40mm)
Applications
  • Automotive & Parking
  • Education
  • Government
  • Healthcare
  • Hospitality
  • House of Worship
  • Manufacturing
  • Offices & Banks
  • Power & Gas
  • Residential
  • Retail
  • Roadways
  • Bridges & Tunnels
  • Sports and Recreation
  • Transportation
  • Warehouses
Standards
  • C-UL-US
