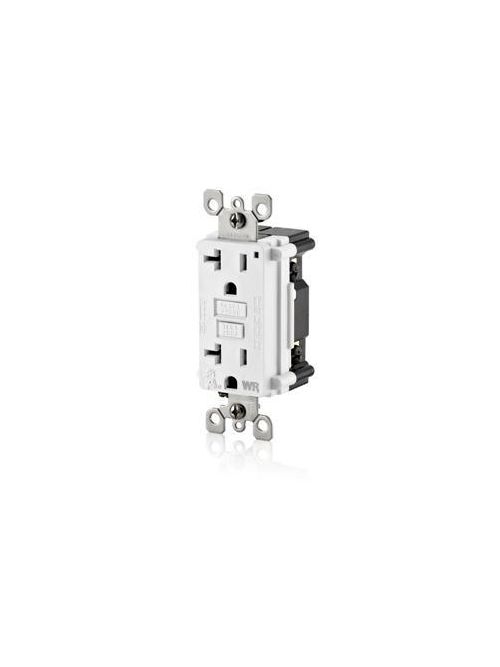

Product image for LEV W7899-W SMRTLOCK PRO GFCI RCPT
Image thumbnail 0

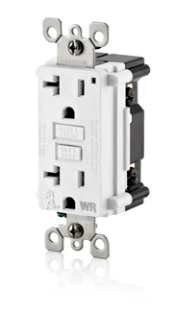

Image thumbnail 1
Image thumbnail 2
Email

LEV W7899-W SMRTLOCK PRO GFCI RCPT

Manufacturer: Leviton Mfg Co | Catalog # W7899-W | Cooper Electric Part # 427145
$37.37/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Leviton is the leading manufacturer of Ground Fault Circuit Interrupters (GFCIs) in the electrical industry. Our renowned SmartlockPro brand offers a wide variety of Spec Grade and Hospital Grade GFCIs to protect people from electrical shock in homes, offices hospitals, schools and outdoors. Built with a patented reset lockout feature that blocks the Reset button if GFCI protection has been compromised, the GFCIs meet the latest NEC and UL requirements. You'll find smart choices for every need, including tamper-resistant, weather-resistant, hospital grade, GFCI/switch or GFCI/guide light and pilot light combinations, as well as easy-install slim versions and time-saving Lev-Lok GFCIs. SmartlockPro GFCI protection teams with an LED guide light for safety in the dark. This combination is ideal for installation in home and hotel bathrooms. A photo sensor turns the energy-efficient, long-life LED ON and OFF.

Technical Information

Amperage
20 Amp
ANSI Base
C-73
AT Rated Voltage
1 hp
Body Material
Polycarbonate,Polycarbonate
Contact Material
Brass
Contact Type
Triple-Wipe
Dielectric
2000 V
Face Material
Polypropylene,Polypropylene
Flamability Class
Rated V-2 Per UL94
Grade
Residential
Grounding
GFCI Ground Fault
Horsepower
1 hp
Material
Stainless Steel
NEMA
5-20R,WD-6
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-35 to 66 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Stainless Steel,Stainless Steel
Screw Type
Stainless Steel,Stainless Steel
Short Circuit Current
10 kA
Standard
UL
Temperature Rise
Max 30C After 100 Cycles OL At 150 Percent Rated Current
Terminal Size
14-10 AWG
Terminal Type
Brass-Hot, Green-Ground, Silver-Neutral
Termination Type
Back & Side
Trip Class
Class A, 5mA Plus Or Minus 1mA
Trip Point
5mA Plus Or Minus 1mA
Voltage
125 Volt

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477404751
Color
White
Product UPC
07847740475

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
China
Features and Benefits
  • Automatically test the GFCI every time the RESET button is pushed in. The GFCI will not reset if the GFCI circuit is not functioning properly.
  • By blocking reset of the GFCI if protection has been compromised, SmartLockPRO reduces the possibility of end-users incorrectly assuming that a reset GFCI outlet is providing ground fault protection when it actually is not.
  • A line-load reversal diagnostic feature is provided which prevents the GFCI from being reset and stops power from being fed to the GFCI receptacle face or through to downstream devices. A green LED indicator on the GFCI's face also illuminates to alert the installer to the line-load wiring reversal.
  • The trip latch mechanism in SmartLockPro GFCIs is a one piece \"T\" design for efficient operation.
  • There are 4 sets of contacts for load terminals and face. SmartLockPRO GFCIs use a patented bifurcated bridge contact for efficient operation.
  • Trip threshold meets or exceeds UL requirements for tripping time.
  • Improved immunity to high-frequency noise reduces nuisance tripping.
  • Advanced electronics design provides superior resistance to electrical surges and over-voltages.
  • Expanded wiring options with nine back-wire holes. Two for each line and load connection plus one for ground with an internal clamp.
  • Silver alloy contacts.
  • Compatible with all Decora devices and wallplates; available in select Decora colors.
