DeWalt / Powers 7417SD1-PWR POWER-STUD+ SD1 3/8

Manufacturer: DeWalt | Powers Fasteners | Catalog # 7417SD1-PWR | Cooper Electric Part # 425559
$115.56/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet CAD Drawing #1 CAD Drawing #2

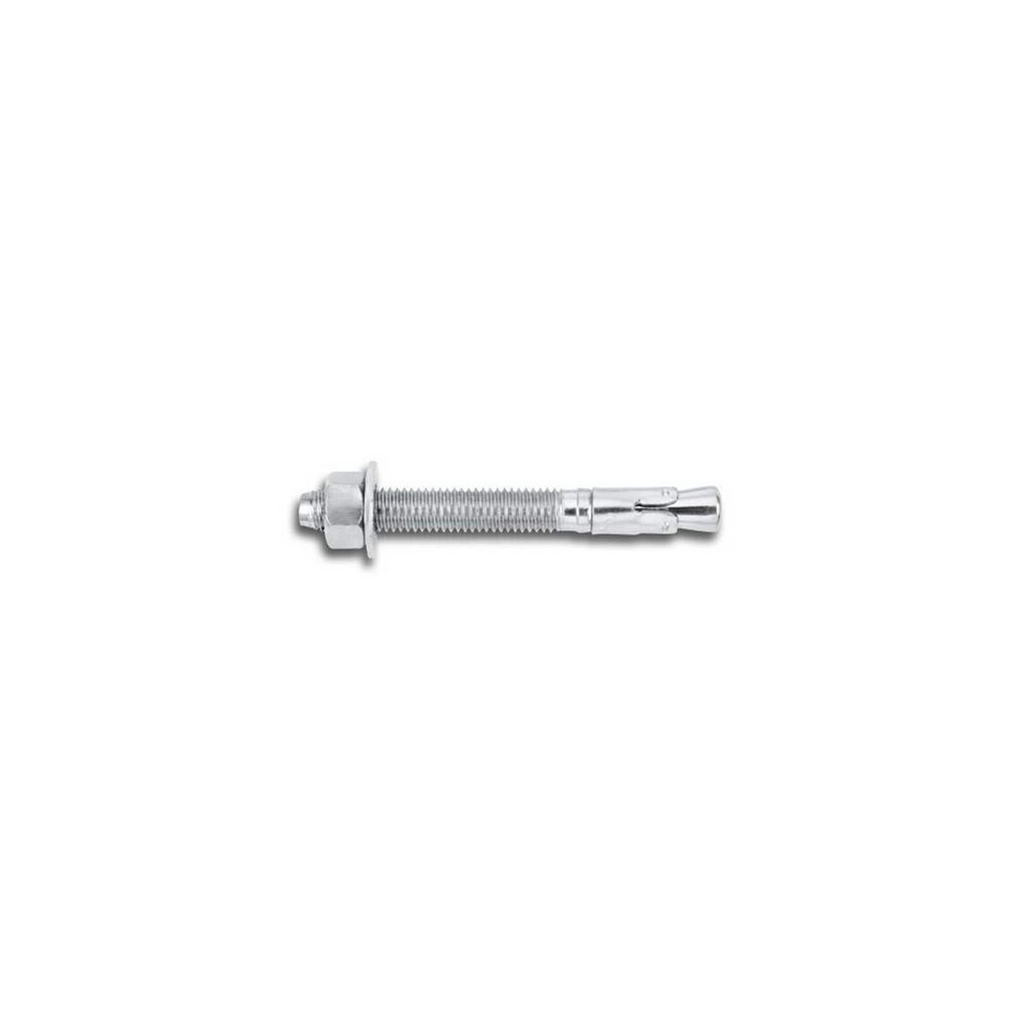

The power-stud+ SD1 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and untracked concrete. Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck, and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.

Technical Information

Anchor Size
3/8 in
Applications
Interior Applications/Low Level Corrosion Environment, Seismic and Wind Loading, Tension Zone Applications
Material
Steel
Minimum Embedment Depth
1-5/8 in
Shear Strength
2540 lb
Tensile Strength
2685 lb
Thread Length
5-5/8 in
Thread Size
3/8-16 UNC
Thread Type
UNC
Type
Fully Threaded

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Powers Industries
Sub Brand
Power-Stud®+ SD1

General Product Info

12-Digit UPC
075352776033
Finish
Zinc
GTiN
00075352776033
Product UPC
07535277603
Weight
0.198 lb

Dimensions

Diameter
3/8 Inch
Overall Length
7 in

Certifications and Compliance

Country of Origin
China
Features
  • Consistent performance in high and low strength concrete
  • Nominal drill bit size is the same as the anchor diameter
  • Anchor can be installed through standard fixture holes

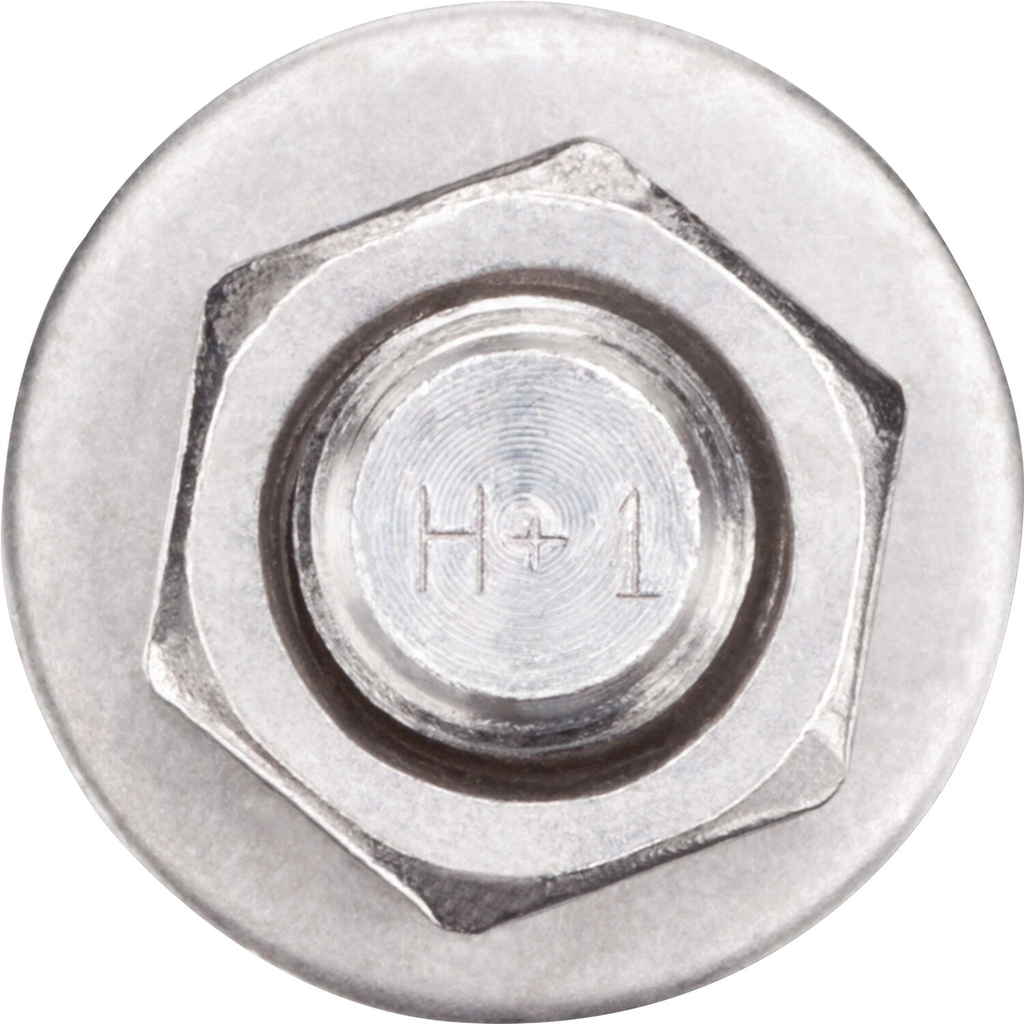

  • Length ID code and identifying marking stamped on head of each anchor
  • Anchor design allows for follow-up expansion after setting under tensile loading
