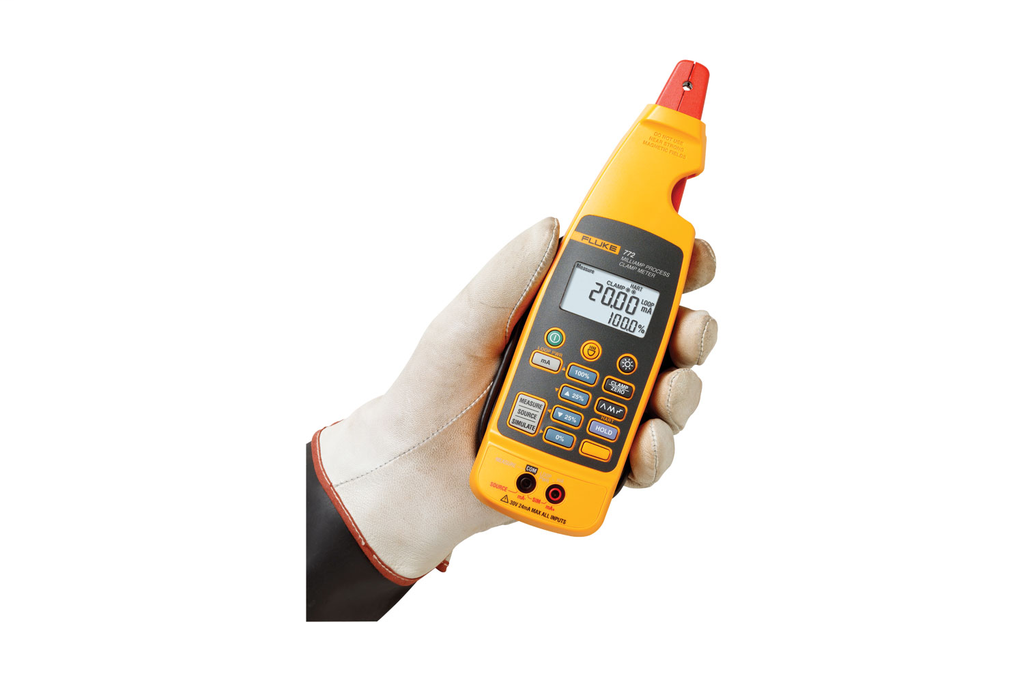

Fluke FLUKE-772 10 mA DC Loop Calibrator

Manufacturer: Fluke | Catalog # FLUKE-772 | Cooper Electric Part # 425439
$1,659.89/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
Milliamp process clamp meters can measure mA signals without breaking the loop. The Fluke 772 mA Clamp Meter expand upon the capabilities of the popular 771 mA Clamp Meter, adding loop power and mA sourcing to the troubleshooting and process calibration capabilities in all Fluke mA clamp meters. Need more hours in your day. Save time by NOT breaking the loop on 4-20 mA signal measurements. Are you spending time: Taking mA measurements by removing a wire and breaking the loop Calling the control room to isolate a loop Testing analog input/output on a console Troubleshooting devices with mA inputs and outputs Repairing intermittent or erratic 4-20 mA loops Going back to the shop to get extra tools. If you need more time in your busy day take a good look at the Fluke 772 mA Clamp Meters. It’s designed to save you time, and money, by eliminating time wasting activities. Now you can troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system.

Technical Information

Amperage
100m Amp
Applications
Measure output signals without breaking the loop or bringing down the system
Enclosure
Hard Plastic
Enclosure Material
Hard Plastic
Operating Temperature
-10 to 50 c
Type
Clamp Meter

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969475815
GTiN
00095969475815
Product UPC
09596947581
Product Overview
  • Fluke 772 Milliamp Clamp Meter measures, sources, and simulates 4-20 mA signals for testing control system I/O or IPs
  • The Fluke 772 adds to the basic capabilities of the Fluke 771 to save more time and expand its applications. With the 771, you'll also be able to: source and simulate 4-20 mA signals for testing control system I/O; measure 4-20 mA signals with in-circuit measurement; power a transmitter with the 24 V loop power supply; and automatically ramp and step change the 4-20 mA output for remote testing.
  • You'll be able to test 420 mA signals five times faster than with traditional DMMs, and without breaking the loop. That means you can troubleshoot a live device without having to power down, which can save you time, and help you avoid possibly missing something going on in the process.
Other Useful Features
  • Simulates 4-20 mA signals for testing control system I/O
  • Sources 4 to 20 mA signals for testing control system I/O or I/Ps
  • Measures 4 to 20 mA signals with in-circuit measurement
  • Includes simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
  • Features a detachable clamp with extension cable for measurements in tight locations
  • Captures and displays changing measurements with Hold function
  • Offers mA output linear ramp or 25% step output
  • Extends battery life with auto-off and backlight timeout
  • Dual backlit display with both mA measurement and percent of 4 to 20 mA span
  • Measurement Spotlight to illuminate hard to see wires in dark enclosures
  • Measures 10 to 50 mA signals in older control systems using the 99.9 mA range
  • Automatically changes the 4 to 20 mA output for remote testing

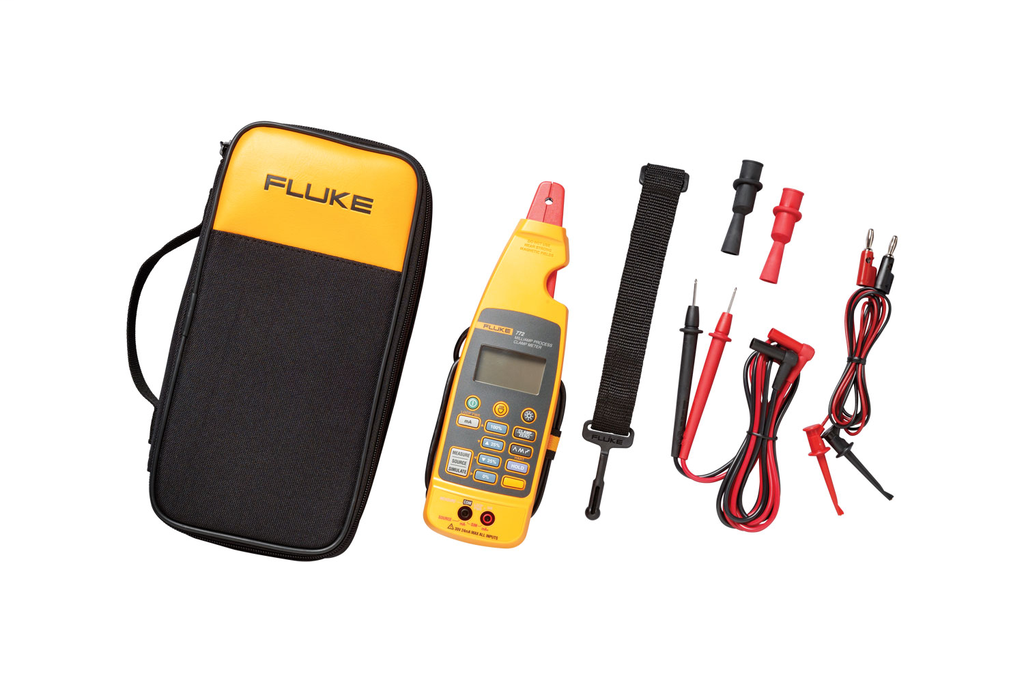

Includes
  • Four AA alkaline batteries (installed)
  • Soft carrying case
  • TL75 test leads
  • AC 72 detachable clip
  • TL 940 mini hook test leads
  • Instruction sheet
  • Hanging tool with hook and loop strap
Key Features
  • Loop calibrator that measures 4 to 20 mA signals without breaking the loop
  • Features best in class 0.2% accuracy
  • Simultaneously measures the mA signal with the clamp and sources a mA signal
  • Delivers 0.01 mA resolution and sensitivity
  • Measures mA signals for PLC and control system analog I/O
