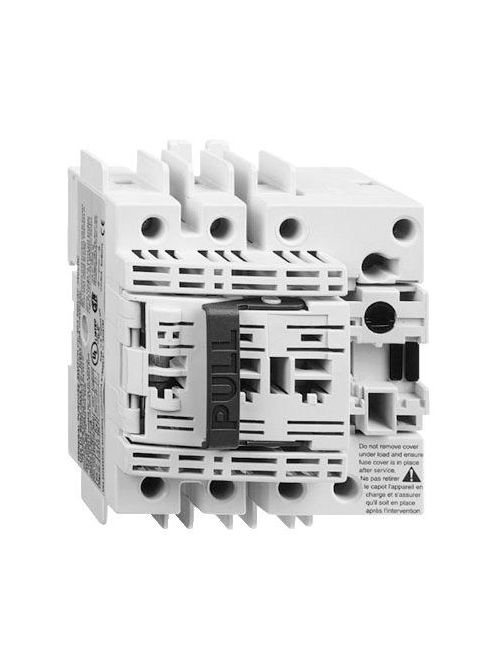

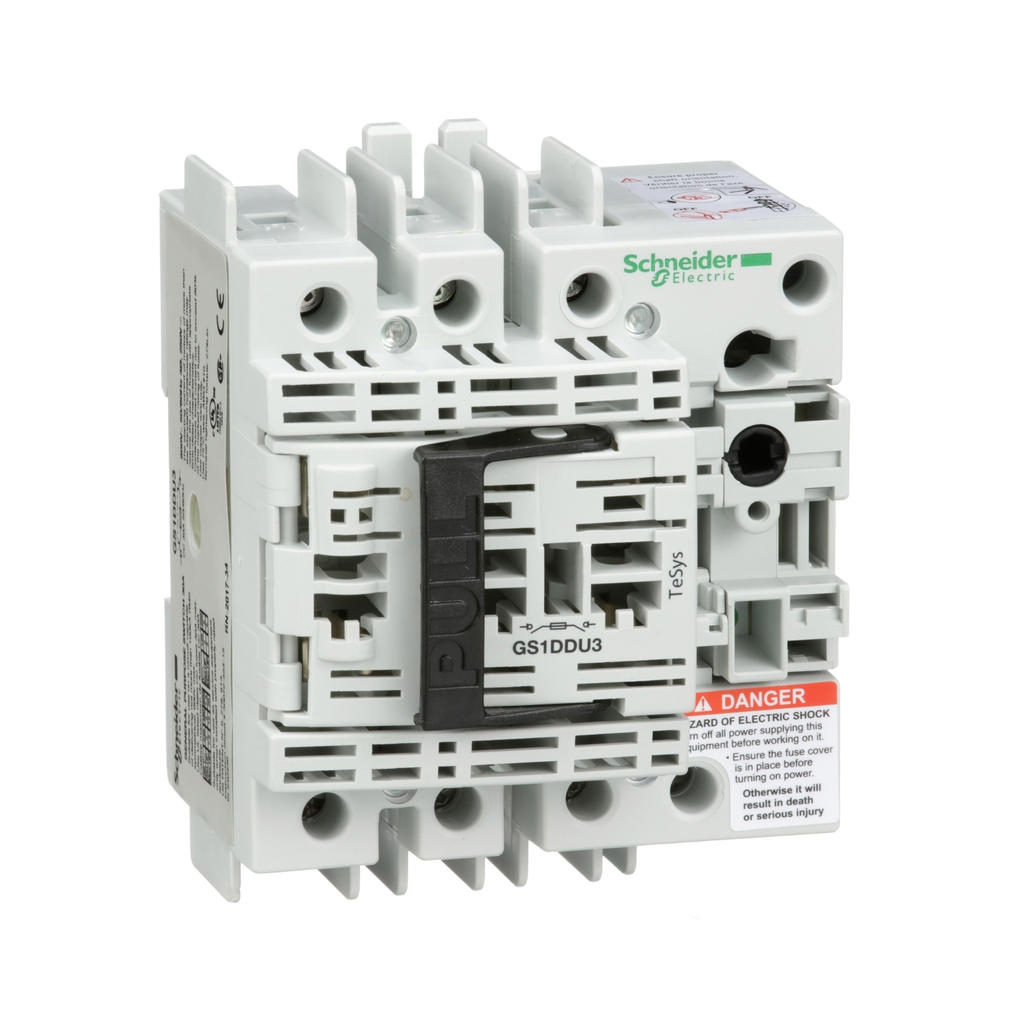

Product image for Square D GS1DDU3 600 VAC 30 Amp 3-Pole Class CC IP20 Copper Fusible Disconnect Switch
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Square D GS1DDU3 600 VAC 30 Amp 3-Pole Class CC IP20 Copper Fusible Disconnect Switch

Manufacturer: Square-D / Schneider | Catalog # GS1DDU3 | Cooper Electric Part # 422608
$258.09 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean opens monday 7:00am et
5 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Catalog Page CAD Drawing #1 Product Spec Sheet CAD Drawing #2 CAD Drawing #3
TeSys GS fuse switch-disconnector, 3 poles (3P), 30A/800V, to be used with class CC fuse links up to 30A, for motor applications up to 15kW@400V AC-23. To be equipped with a direct operating handle GS1AH106 (to be ordered separately), or with an external front side mounting operating handle (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@600V. Add-on auxiliary contact modules front mounting GS1AM (early-break and position signaling) can complete the assembly (to be ordered separately). UL/CSA certified, Green Premium compliant (RoHS/REACh).

Technical Information

Actuator
GS HANDLE OPERATOR (SOLD SEPARATELY)
Amperage
30 Amp
Applications
Protection
Contact Configuration
3 NO
Enclosure
IP20 WITH TERMINAL COVER CONFORMING TO IEC 60529
Fuse Type
UL
Indicator
VISIBLE ON/OFF
Net Weight
0.6 kg
Number of Poles
3 Pole
Operating Cycles
6k
Operating Temperature
-20-70 Adegrees C
Size
COMPACT
Standard
CSA C22.2 No 5,UL 489
Storage Temperature
-40-80 degrees C
TC Connection
LUGS (BUILT IN)
Trip Type
CLASS CC FUSE
Type
Switch-disconnector-fuse
Voltage
600 VAC
Wattage
15 kW 400 Volt-18.5 kW 500 Volt-25 kW 690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
GS1 DD;TeSys GS

General Product Info

12-Digit UPC
338911017955
GTiN
03389110179538
Product UPC
78590117953
Weight
0.6 kg

Dimensions

Depth
83.5 mm
Height
4.57 in
Warranty Length
18 mth
Width
3.82 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ASEFA,LOVAG,LROS (Lloyds Register Of Shipping)
Country of Origin
France
Features
  • Equipped with an external front side mounting operating handle
  • Lockable with door interlock
  • To be used with type BS fuse links
  • High short circuit performance up to 100 KA
  • Robust and compact handles
  • Effective protection thanks to fuse speed fusion
Prop 65
  • WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Accessory Products
  • GS2AH110
  • GS2AH120
  • GS2AH420
  • GS2AE8
  • GS2AE81
