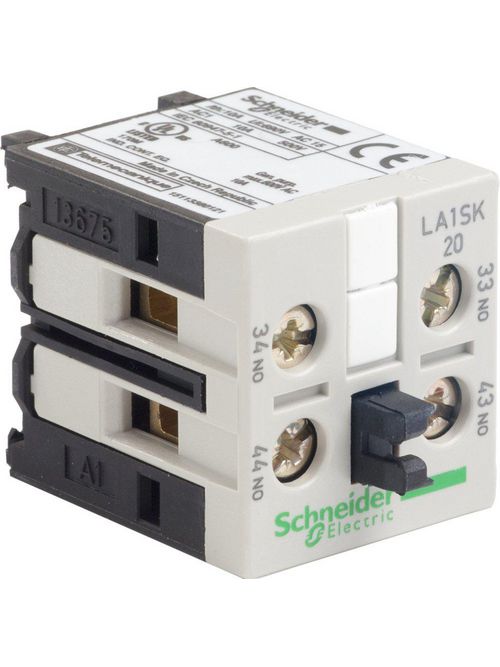

Product image for Square D LA1SK20 600 Volt 10 Amp 2NO Screw Clamp Terminal Contactor Adder Deck
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Square D LA1SK20 600 Volt 10 Amp 2NO Screw Clamp Terminal Contactor Adder Deck

Manufacturer: Square-D / Schneider | Catalog # LA1SK20 | Cooper Electric Part # 421325
$22.26/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys SK instantaneous auxiliary contact block, for mini contactors LC1SK, LP1SK and mini control relays CA2SK, CA3SK. It provides 2NO contacts rated up to 10A/690V AC, connection by screw clamp terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
10 Amp AT <= 55 Amp?C
Applications
LC1SK
Contact Configuration
2 NO
Contact Rating
690 V AC <= 400 HZ
Enclosure
IP2X
Net Weight
0.022 kg
Operating Temperature
-20...50 Adegrees C
Size
1.06 in
Standard
CSA C22.2 No 60947-5-1,EN/IEC 60947-5-1,UL 60947-5-1
Storage Temperature
-50-70 degrees C
TC Connection
SCREW CLAMP TERMINALS 1 1.5-6 MMASOLID- SCREW CLAMP TERMINALS 2 1.5-4 MMASOLID- SCREW CLAMP TERMINALS 1 0.5-6 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 2 0.35-2.5 MMAFLEXIBLE WITH CABLE END- SCREW CLAMP TERMINALS 1 0.35-6 MMAFLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 0.35-1.5 MMAFLEXIBLE WITHOUT CABLE END
Type
Auxiliary contact block
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
LA1SK

General Product Info

12-Digit UPC
389110564016
GTiN
03389110564013
Product UPC
78590186678
Weight
0.022 kg

Dimensions

Warranty Length
18 mth
Width
27 mm

Certifications and Compliance

Certifications
CB Scheme,CE,CULus,EAC,UKCA
Country of Origin
Czechia
