Square D XB6AE1B1B 16 mm 240 VAC 1.5 Amp 1NO White Round Extended Return Illuminated Push Button

Manufacturer: Square-D / Schneider | Catalog # ZB4BV6 | Cooper Electric Part # 420908
$28.37 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure

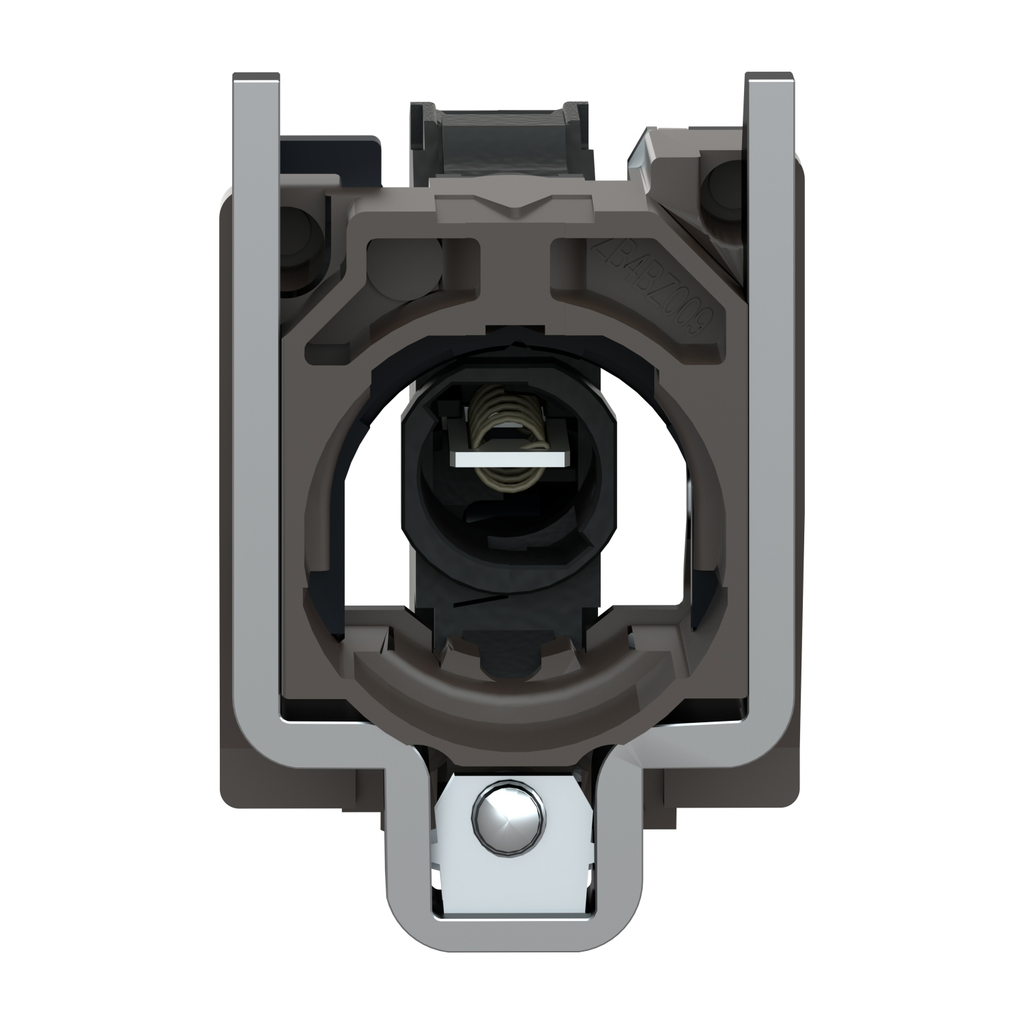

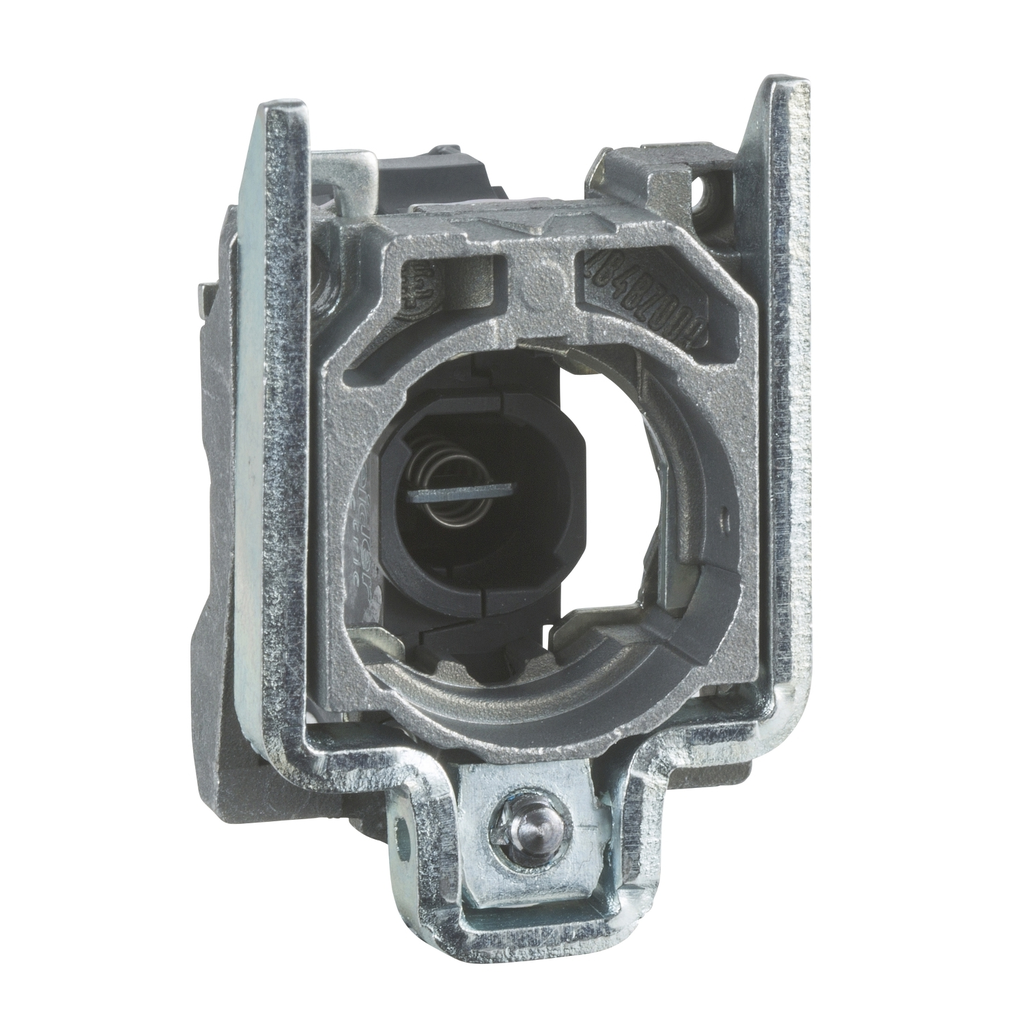

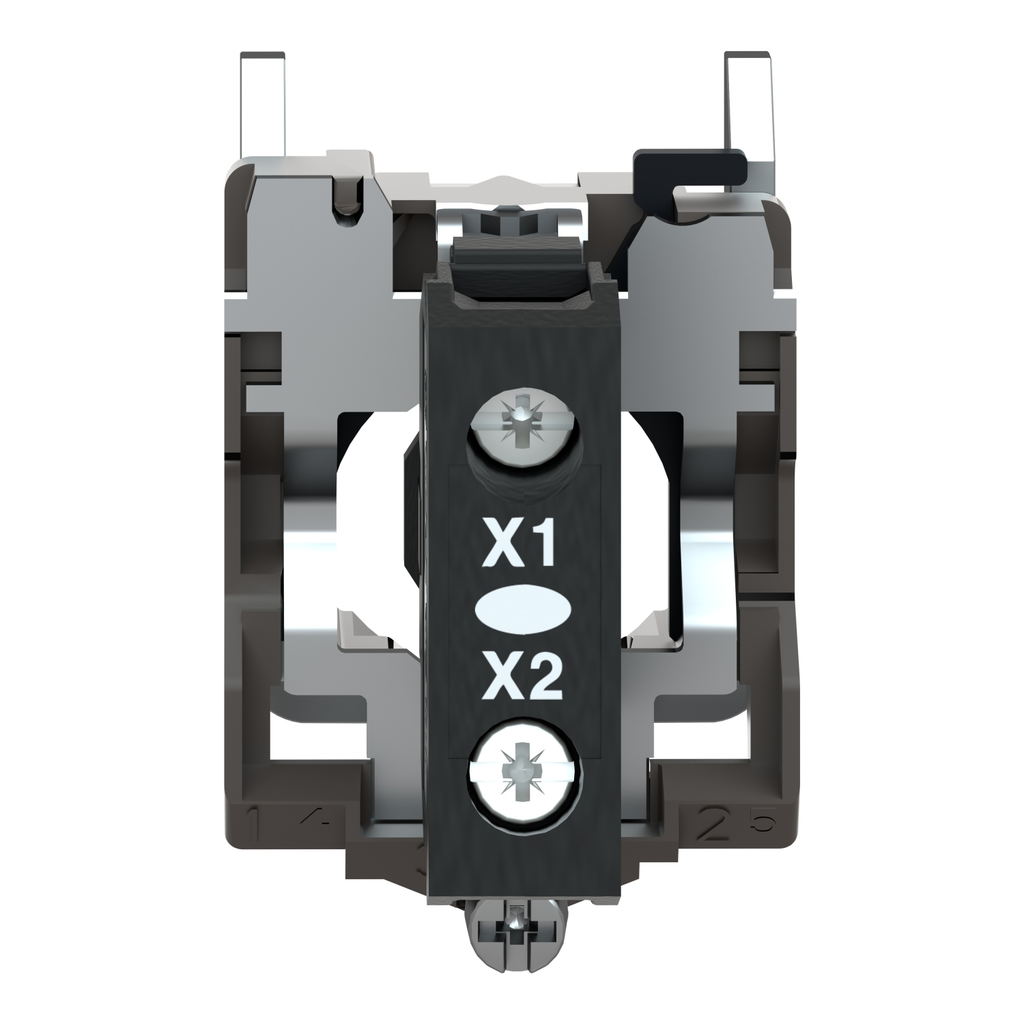

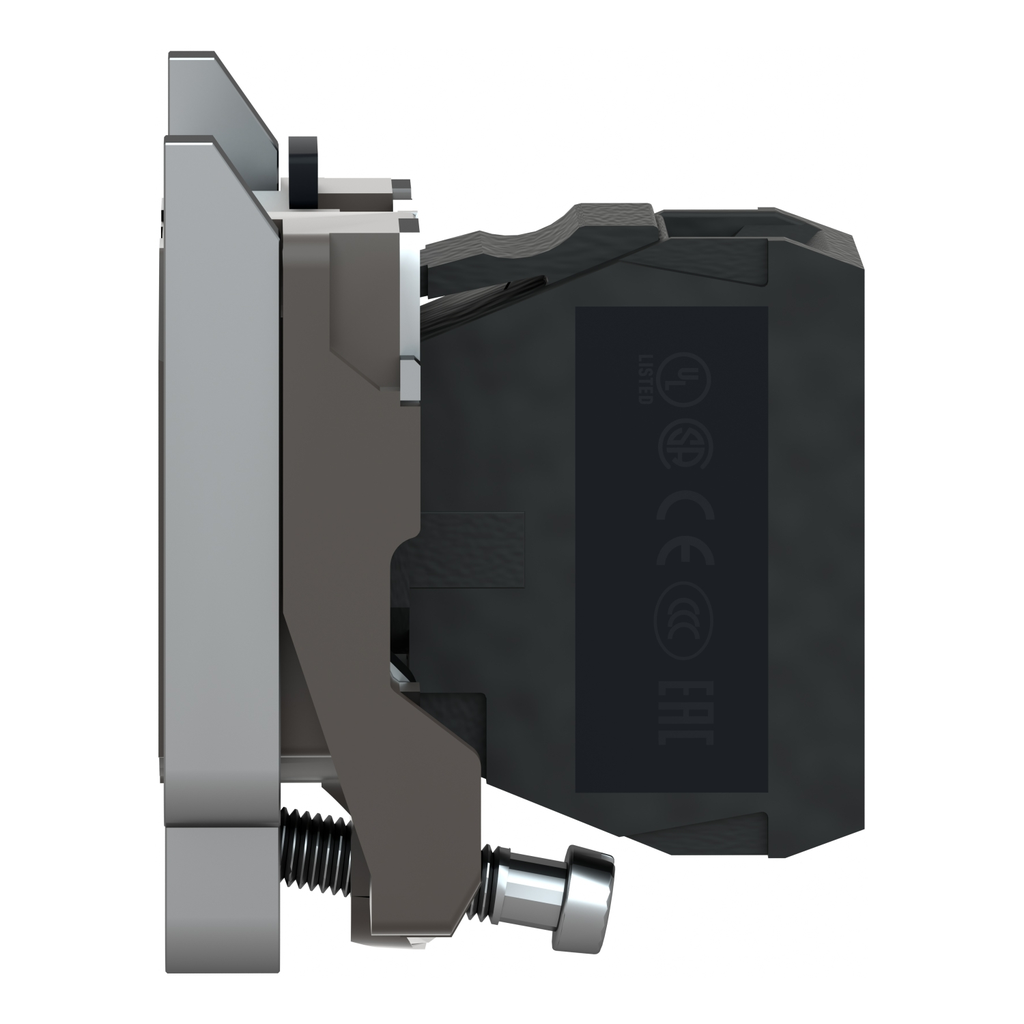

This Harmony XB4, light block with body/fixing collar operates with BA9s bulb. It has a metal body and is compatible with Harmony XB4 pilot lights. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s bulb. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is designed to fit with a standard 22mm control and signaling units, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40.C to 55.C allows versatility in usage of product.

Technical Information

Indicator
BA 9S,BULB NOT INCLUDED
Light Source
Bulb Not Included
Net Weight
0.052 kg
Operating Temperature
-25 TO +70 DEGREES C
Size
22MM ROUND
Standard
CSA C22.2 No 14,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
TC Connection
SCREW CLAMP
Type
Complete body/light block assembly
Voltage
<= 250 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
ZB4

General Product Info

12-Digit UPC
338911088962
GTiN
03389110889628
Product UPC
78590137160
Weight
0.052 kg

Dimensions

Height
47 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,DNV,GL,LROS (Lloyds Register Of Shipping),UL Listed
Country of Origin
France
Connections Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end
  • screw clamp terminals, >= 1 x 0.22 mm²
Light Block Supply
  • direct <2.4 W
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Carbon Footprint Of The Installation Phase A5
  • 0.0096326214
  • 0 kg CO2 eq.
Carbon Footprint Of The End Of Life Phase C1 To C4
  • 0.1 kg CO2 eq.
  • 0.0621097087
Carbon Footprint Of The Manufacturing Phase A1 To A3
  • 0.4 kg CO2 eq.
  • 0.3902208738
Electrical Shock Protection Class
  • class I conforming to IEC 60536
UI Rated Insulation Voltage
  • 600 V 3)IEC 60947-1
Accessories
  • ZB4BZ009
  • ZBYLEG201001
  • ZBYP2101
Vibration Resistance
  • 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Carbon Footprint Of The Use Phase B2 B3 B4 B6
  • 0 kg CO2 eq.
  • 0
Accessory Products
  • ZB4BZ009
  • ZBYLEG201001
  • ZBYP2101
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Customizable
  • no
  • 0
Carbon Footprint Of The Distribution Phase A4
  • 0.0067997573
  • 0 kg CO2 eq.
Tightening Torque
  • 0.8-1.2 N.m IEC 60947-1
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave ac
UIMP Rated Impulse Withstand Voltage
  • 6 kV IEC 60947-1
