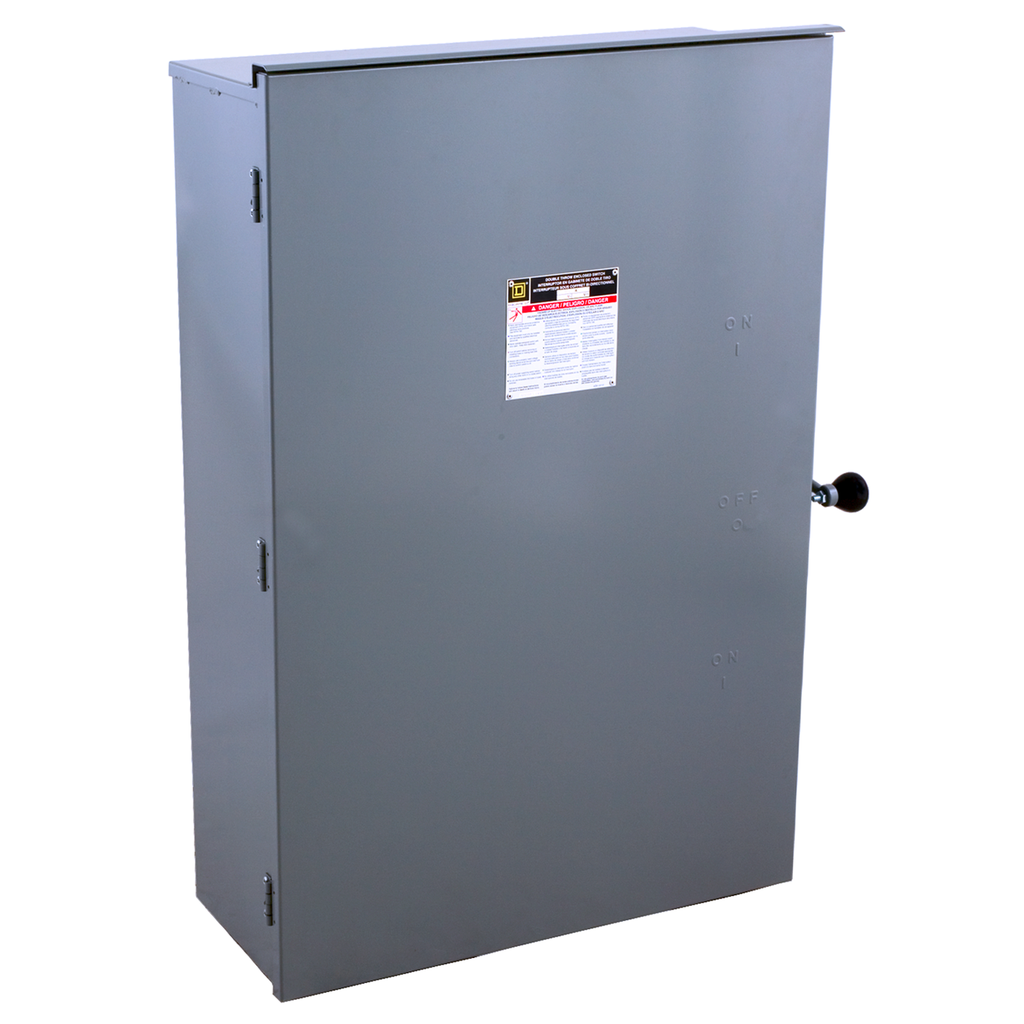

Product image for Square D 82255R 240 VAC 400 Amp 2-Pole Galvannealed Steel NEMA 3R Non-Fusible Double Throw Safety Switch
Image thumbnail 0
Image thumbnail 1
Email

Square D 82255R 240 VAC 400 Amp 2-Pole Galvannealed Steel NEMA 3R Non-Fusible Double Throw Safety Switch

Manufacturer: Square-D / Schneider | Catalog # 82255R | Cooper Electric Part # 420857
$8,715.00 /ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Brochure Product Catalog Page Product Spec Sheet CAD Drawing #1 CAD Drawing #2
Provide emergency back up power connections in accordance with Article 702 of the National Electrical Code, ANSI/NFPA 70. They also have the capability of switching two loads between one power sources. Plays 3 crucial roles in today.s commercial and industrial settings: 1) isolate power in daily activities 2) provide an effective way to interrupt power in an emergency and 3) provide lockout in sight disconnect.

Technical Information

Amperage
400 Amp
Enclosure
NEMA 3R
Fuse Type
H Or J
Line Rated Current
400 A
Material
Steel
Mounting Type
Surface
Net Weight
44.9 kg
Number of Poles
2 Pole
Short Circuit Current
10 kA
Type
DOUBLE THROW SAFETY SWITCH
Voltage
240 Volt

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901597759
GTiN
00785901597759
Product UPC
78590159775

Dimensions

Depth
10.63 Inch
Height
39 Inch
Warranty Length
18 mth
Width
30.02 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL,UL
Country of Origin
USA
  • Dual Cover Interlock (30 -100A Series F and 600A Series A)
  • Meets or exceeds NEMA KS1
  • Mechanical endurance of F series is guaranteed to exceed three times the NEMA requirements
  • Red \"\"ON\"\
  • Two tone color handle clearly shows switch's status (30 - 100A Series F)
  • Galvanized Steel with E-Coat on NEMA 1, 3R and 12 Enclosures
  • Black \"\"OFF\"\
  • Enclosed operating mechanism design reduces the amount of dust and other contaminants that shorten the mechanisms operating life.
  • Arcing during switching
  • Educational Campuses
  • Healthcare Facilities
  • Mining and Mineral
  • Service entrance equipment
  • Commercial Buildings
  • From live parts
  • Industrial Buildings
  • Short circuit or high fault protection
  • Water Wastewater
  • Point of load
  • Overload or thermal protection
  • Manufacturing
  • During maintenance of loads
