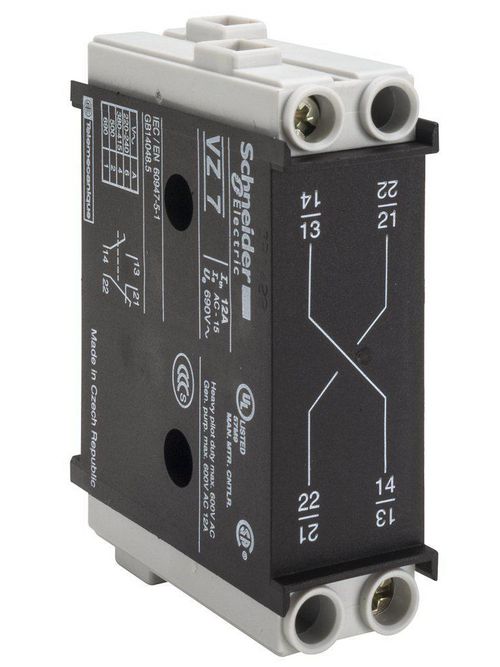

Product image for Square D VZ7 1NO 1NC 690 VAC 12 Amp Right Mount Auxiliary Contact Block
Image thumbnail 0
Image thumbnail 1
Email

Square D VZ7 1NO 1NC 690 VAC 12 Amp Right Mount Auxiliary Contact Block

Manufacturer: Square-D / Schneider | Catalog # VZ7 | Cooper Electric Part # 419627
$56.91/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
VZ7 is an add-on auxiliary contact module for TeSys Vario switch-disconnectors from Schneider Electric. To be used with V02 to V6 switch bodies, mounted on one side of the switch body. It includes 1NO+1NC contacts (late make NO, early break NC) rated for AC operation until 690V and DC operation until 250V. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
12 Amp
Applications
V2;V5;V02;V6;V1;V4;V01;V0;V3
Contact Configuration
1 NO + 1 NC
Enclosure
IP20 CONFORMING TO IEC 60529
Net Weight
0.05 kg
Operating Cycles
100000 CYCLES AC-15-30000 CYCLES DC-11
Operating Temperature
-20-50 Adegrees C
Size
1.91 in
Standard
IEC 60947-5
TC Connection
SCREW CLAMP TERMINALS 2 0.75-1.5 MMA FLEXIBLE - WITH CABLE END- SCREW CLAMP TERMINALS 2 1-2.5 MMA SOLID
Type
Auxiliary contact block
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
VZ

General Product Info

12-Digit UPC
389110551962
GTiN
03389110551969
Product UPC
78590130574
Weight
0.05 kg

Dimensions

Depth
48.5 mm
Height
65 mm
Warranty Length
18 mth
Width
20 mm

Certifications and Compliance

Certifications
CSA,GL,UKCA,UL
Country of Origin
Czechia
Compatible Products
  • V0
  • VCF0
  • VCF1
  • VCF01
  • VCF3
  • VCF2
  • V01
  • V1
  • V2
  • V3
  • VCF01GE
  • VCF02
  • VCCF02
  • VCCF1
  • VCF02GE
  • VCCF0
  • VCF0GE
  • VCCF2
  • V02
  • VCF2GE
  • VCCF3
  • VCD01
  • VCF4
  • VCD0
  • VCCF01
  • VCF1GE
  • VBF01GE
  • VBF0
  • V4
  • VCCF4
  • VCD1
  • VBF1
  • V5
  • VBF3
  • VBF01
  • VBD0
  • VCF5
  • VBF02GE
  • VCD02
  • VBD01
  • VBF02
  • VBF2
  • VCCF6
  • VC1GUN
  • VCD2
  • VCCF5
  • VCCD1
  • VBF0GE
  • VCF4GE
  • VVE0
  • VCF3GE
  • VBF1GE
  • VCF6
  • VBD2
  • VCCD01
  • VZ29
  • VCCD0
  • V6
  • VBF2GE
  • VBD1
  • VBF4
  • VCCD2
  • VVD0
  • VVD2
  • VBF5
  • VVD3
  • VBD02
  • VVD1
  • VC2GUN
  • VBF3GE
  • VBF4GE
  • VBF6
  • VCCD02
  • VC4GUN
  • VVE3
  • VVE2
  • VC5GUN
  • VVE1
  • VC6GUN
