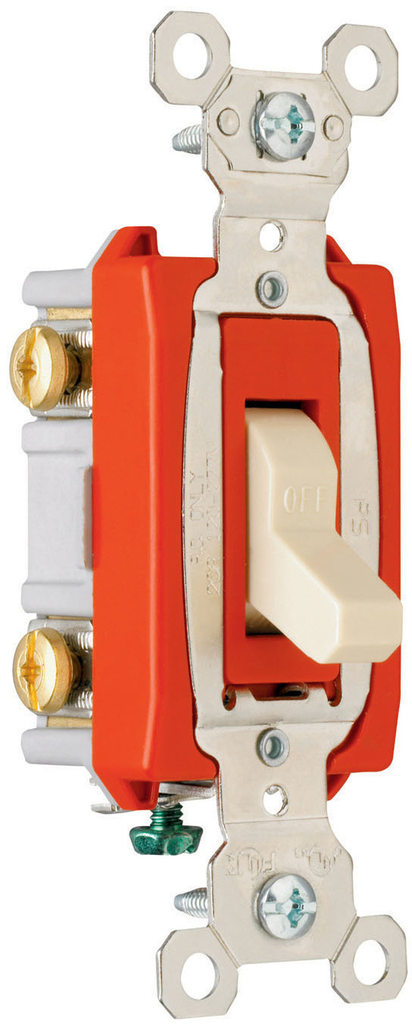

Pass & Seymour PS20AC2-W 2Pole Toggle Switch, Back & Side Wire, 20Amp 120/277Volt, White

Manufacturer: Pass & Seymour / Legrand | Catalog # PS20AC2W | Cooper Electric Part # 4194
$21.11/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
45 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Brochure
2pole Toggle Switch, Back & Side Wire, 20amp 120/277volt, Red

Technical Information

Action
Double Pole
Actuator
Toggle
Amperage
20 Amp
Applications
Industrial
Contact Rating
120 V
Duty Rating
Extra Heavy Duty
Enclosure
Nylon
Grade
Industrial
Material
Nylon
Number of Poles
2 Pole
Size
3.3 in
Type
Non-Reversing
Voltage
120 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007195354
Color
White
Finish
Matte
GTiN
00785007195354
Product UPC
78500719535
UNSPSC
39121507

Dimensions

Depth
1.073 Inch
Height
3.281 Inch
Width
1.32 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • External screw-pressure-plate back and side wired. Accepts #14 - #10 AWG copper or copper-clad conductors.
  • Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce.
  • Cam controls fast ''make'' and positive ''break'' to minimize arcing.
  • Heavy-duty bumper pads for quiet operation.
  • High strength thermoplastic polycarbonate toggle.
  • Back body made of glass-reinforced nylon.
  • Locking support provides resistance to face and back body separation.
  • Oversized silver alloy contacts for long life and better heat dissipation.
  • Grounding terminal is standard.
  • Shallow design for ease of istallation.
  • Strap nickel-plated steel with integral ground.
  • Auto-ground clip assures positive ground.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
