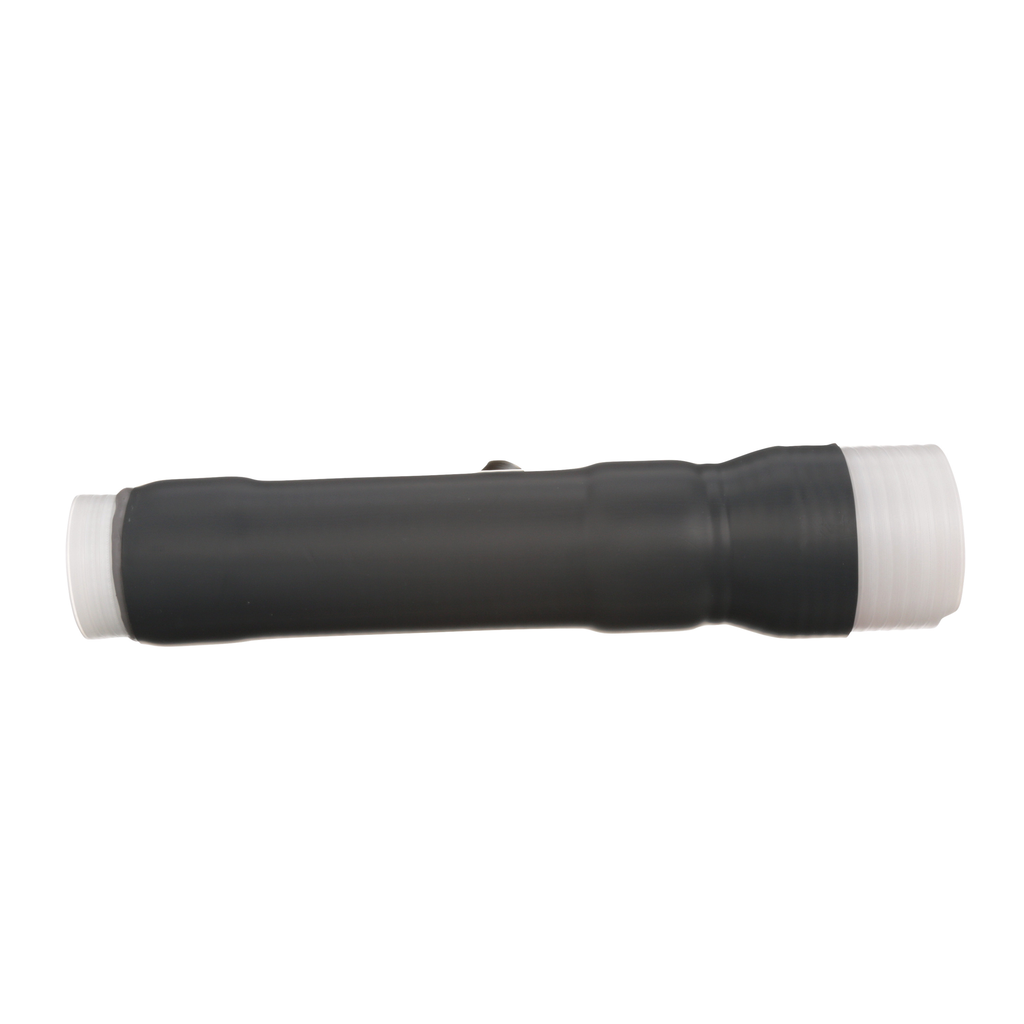

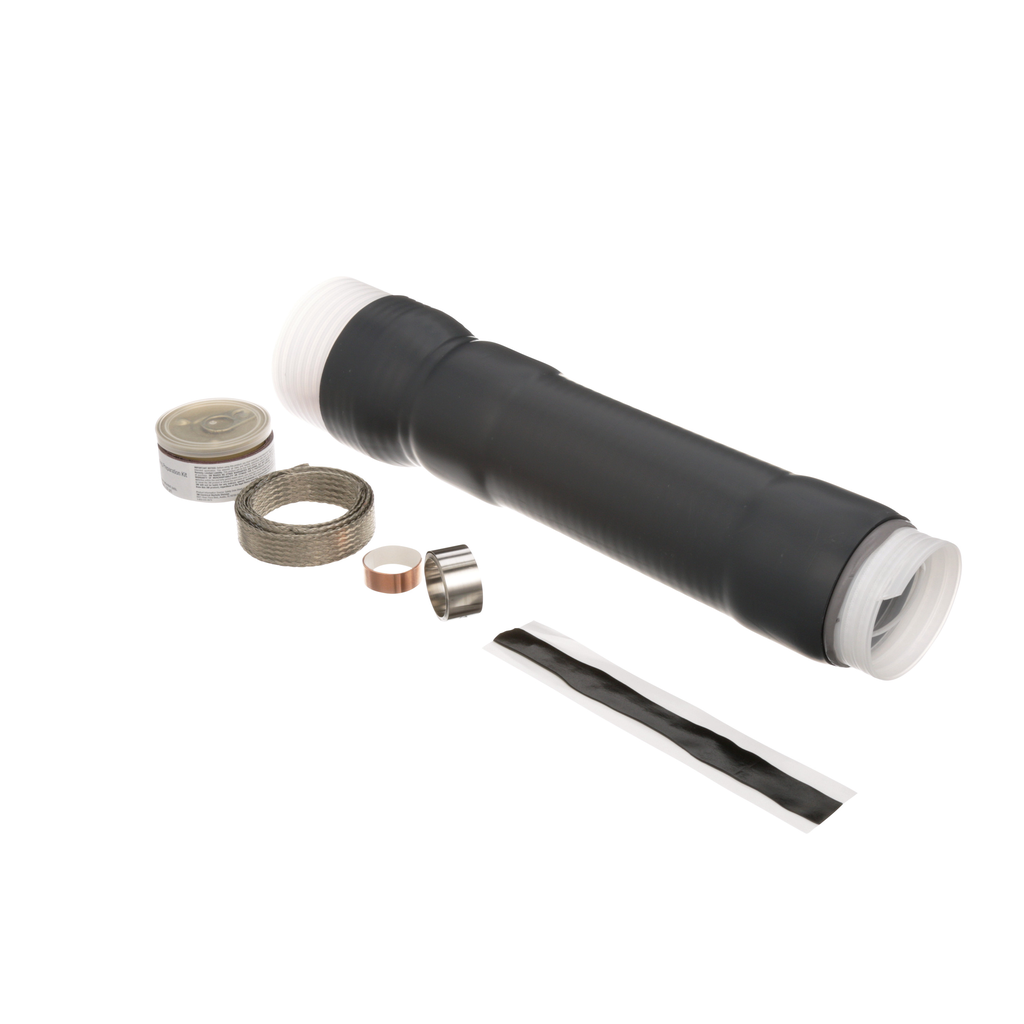

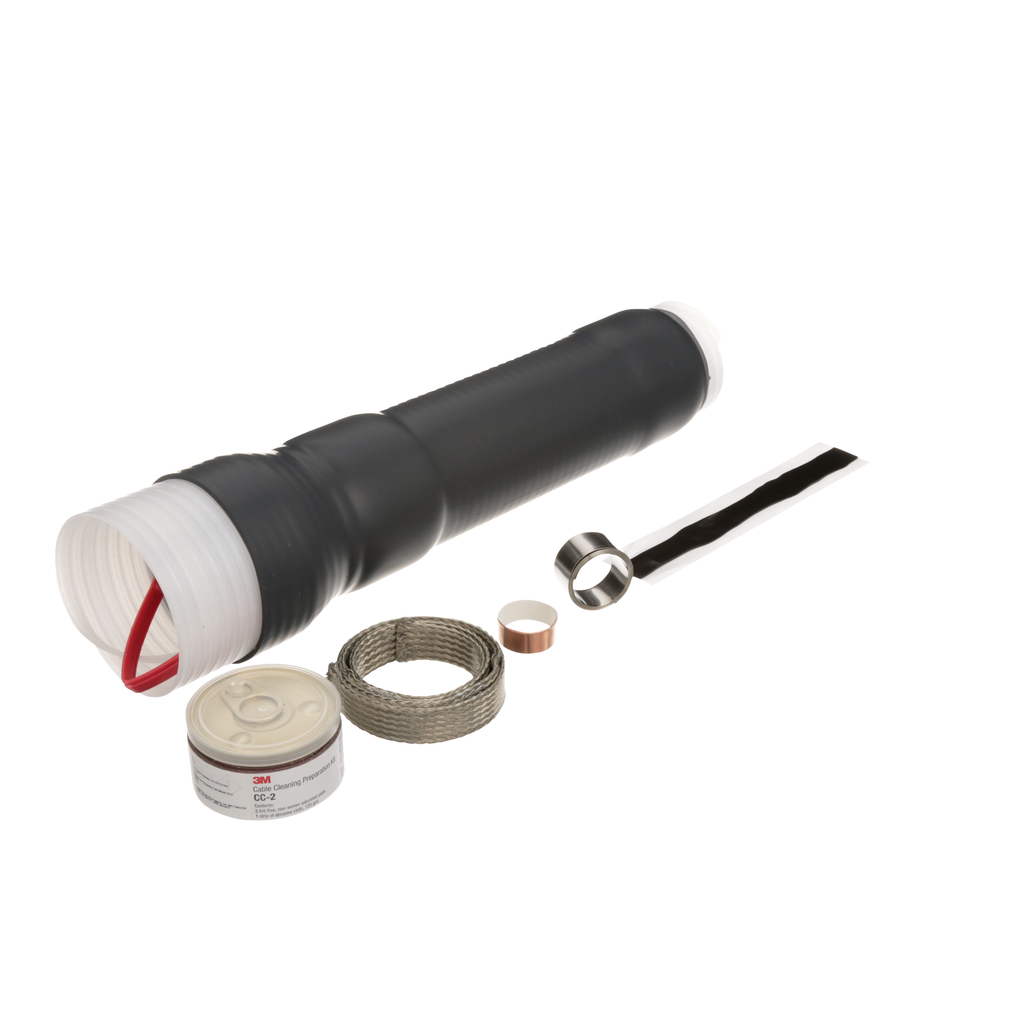

3M 7696-T-150 3M™ Cold Shrink QT-III Termination Kit 7696-T-150, Tape/Wire/UniShield® Shielding, 5-35 kV, Insulation OD 1.53-2.32 in, 3/kit

Manufacturer: 3M | Catalog # 7000006106 | Cooper Electric Part # 419108
$3,657.18/ea
kt
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Friday 8:00am ET
12 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure
3M™ Cold Shrink QT-III Termination Kits offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Termination Kit 7696-T-150 has a conductor size range for 5 kV: 1750-2000 kcmil, 8 kV: 1500-2000 kcmil, 15 kV: 1250-2000 kcmil, 25/28 kV: 900-1750 kcmil and 35 kV: 700-1500 kcmil.

Technical Information

Applications
Indoor
Cable Type
Tape Shield; UniShield(R); Wire Shield
Conductor Size
800 kcmil
Indoor Outdoor
Indoor Non-skirted
Type
QT-III
Voltage
5 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007417804
GTiN
00054007417804
Product Series
7690-T
Product UPC
05400741780

Certifications and Compliance

Country of Origin
USA
  • Non-tracking, molded, silicone rubber insulation offers durability
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for indoor applications
