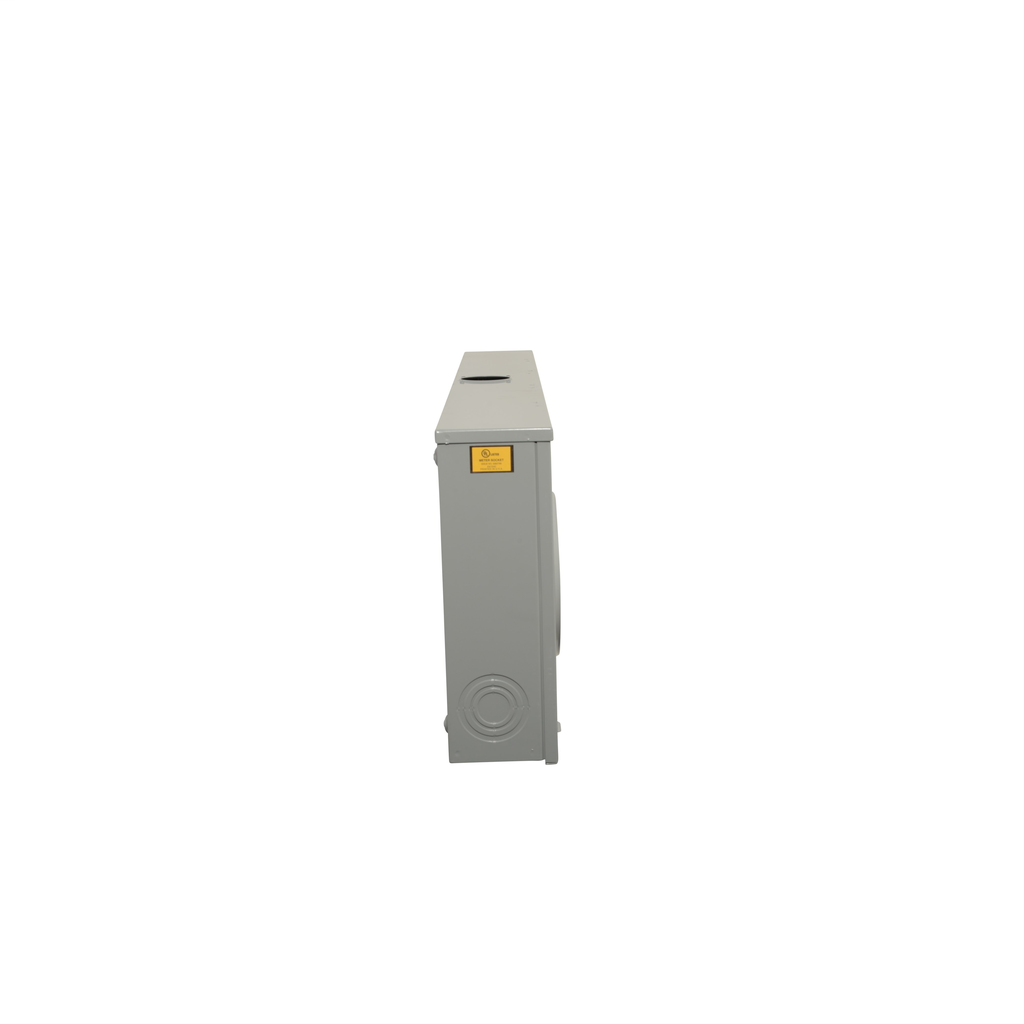

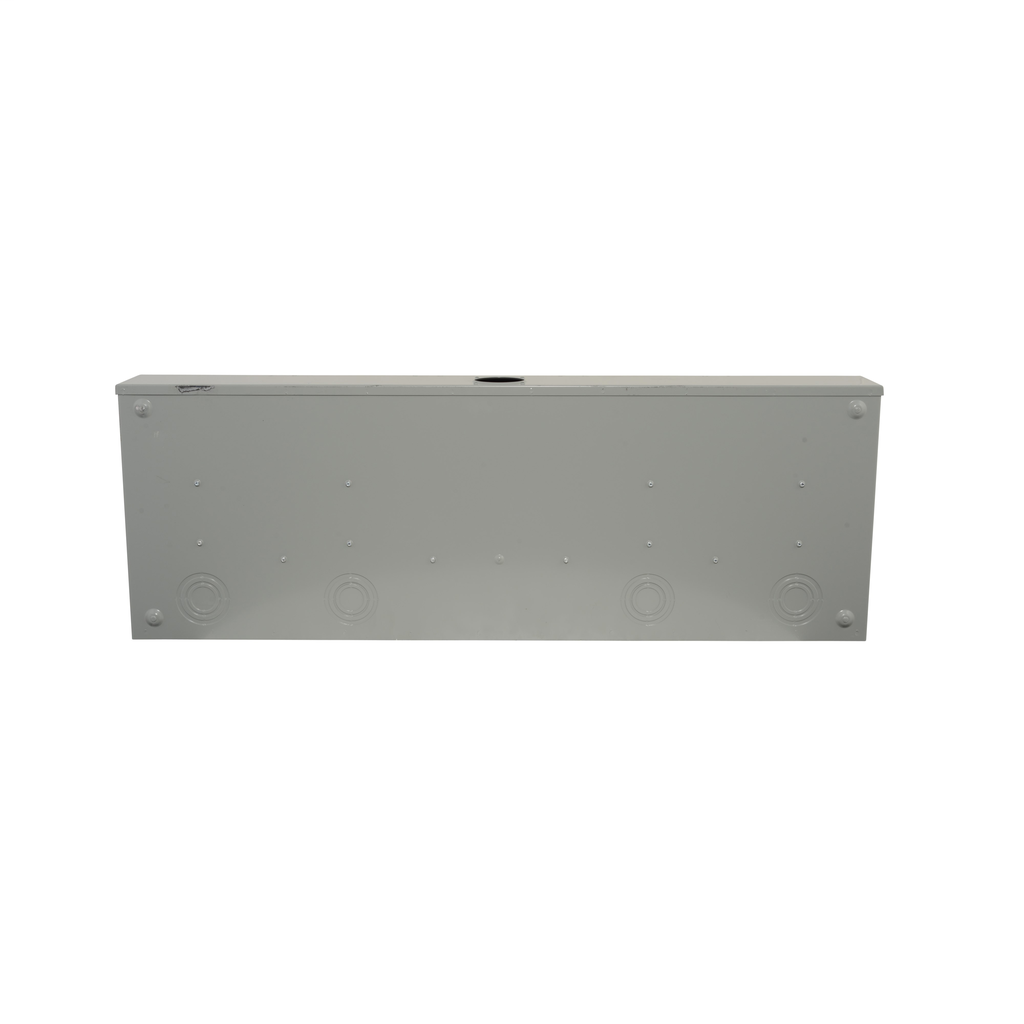

Square D UT4R1131B 600 VAC 100 Amp 1-Phase 3-Wire Horizontal Overhead/Underground Service Ringless Meter Socket

UT horizontal ganged meter sockets are for single phase systems up to 600 VAC. These main lug units can be from 2 through 6 meter positions. Units can be with or with a horn or lever bypass and be fed from the end or the center. This horizontal ganged meter socket has four meter positions without bypass. Each socket position has a 4 jaw socket without jaw release. The main is rated at 205 A. The branches have a 100 A rating. This unit can be feed from an overhead or underground service. This unit has a NEMA 3R surface mounting enclosure that is 14.12 inches tall, 40.62 inches wide and 4.50 inches deep. The main lugs, phase and neutral, will accept 6 AWG to 350 kcmil copper or aluminum wire. The branch lugs will accept 8 AWG to 2/0 AWG copper or aluminum wire. This horizontal ganged meter socket device is UL Listed.
