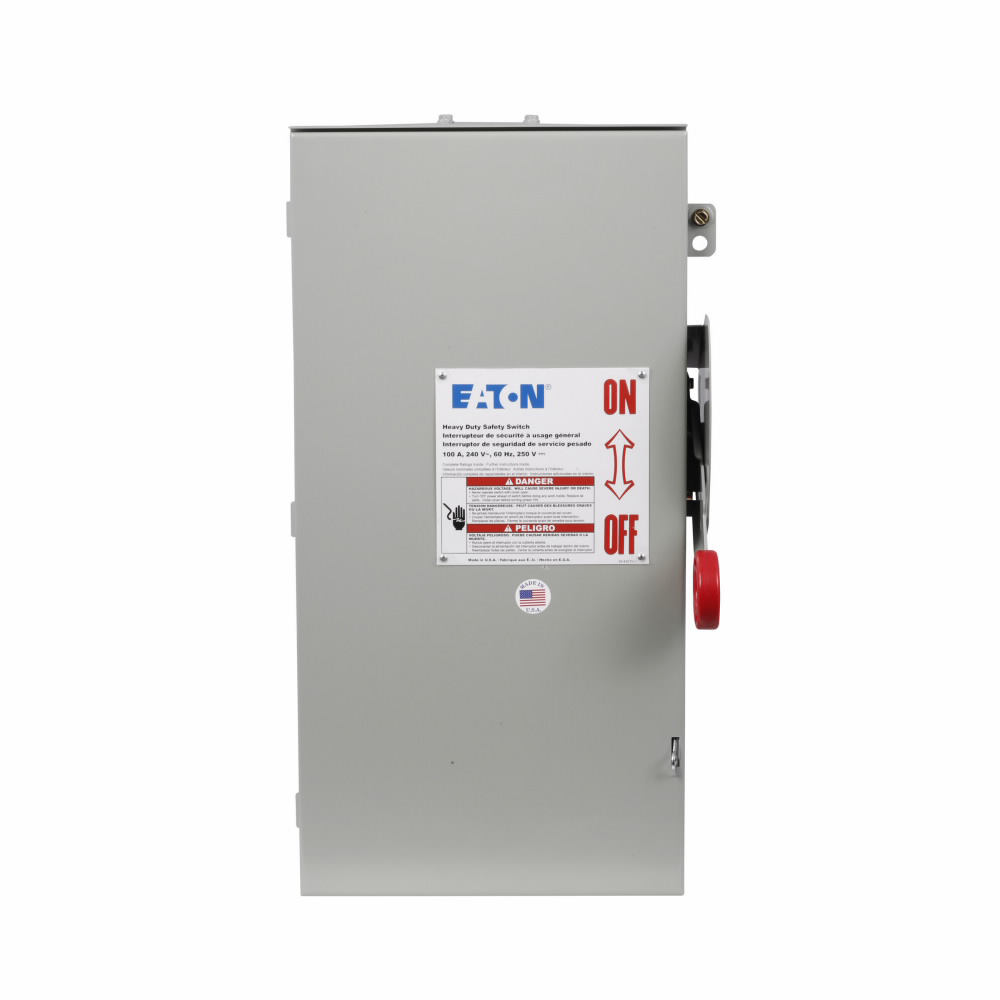

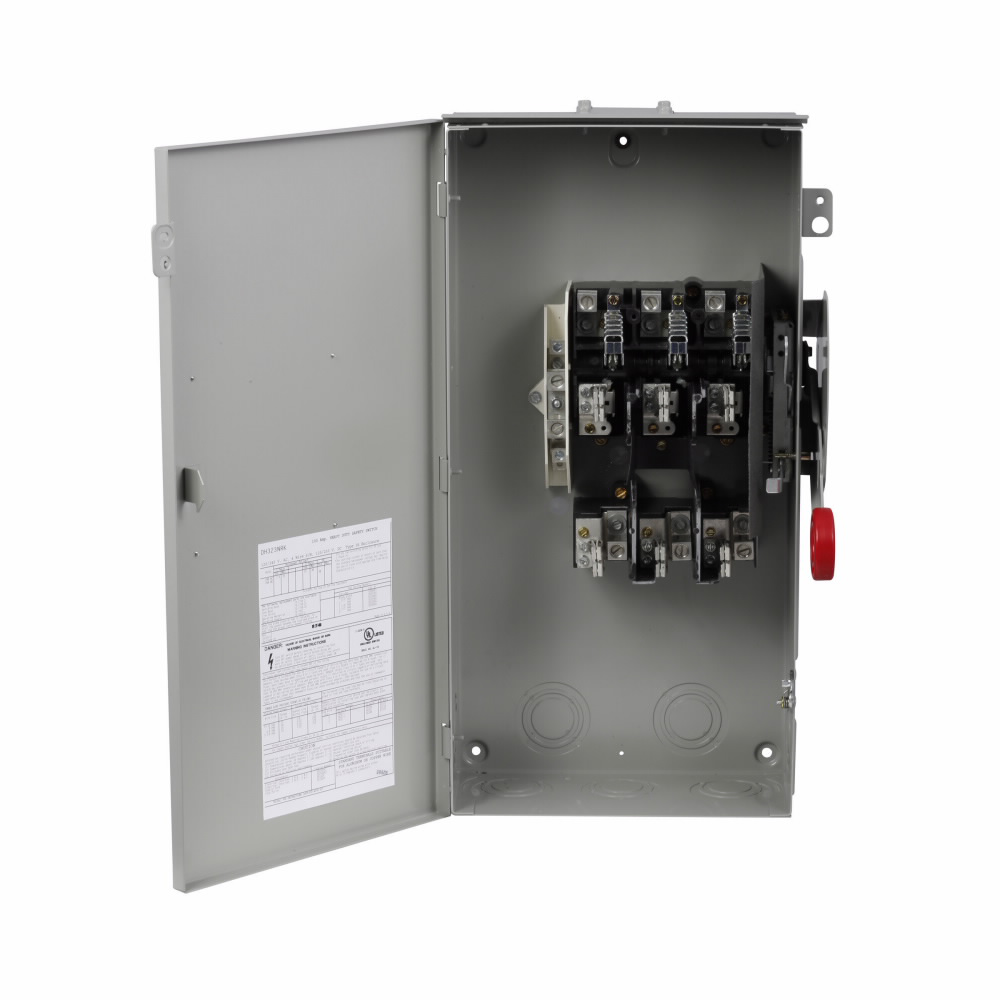

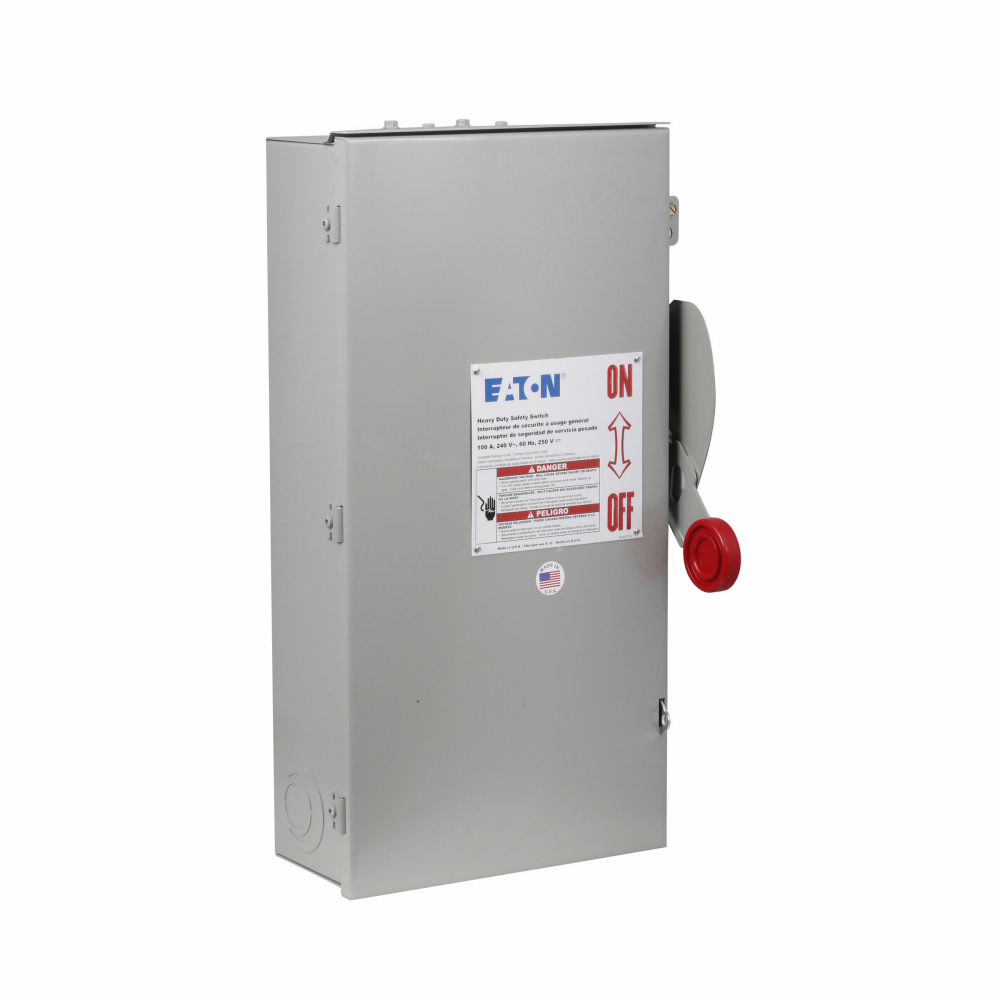

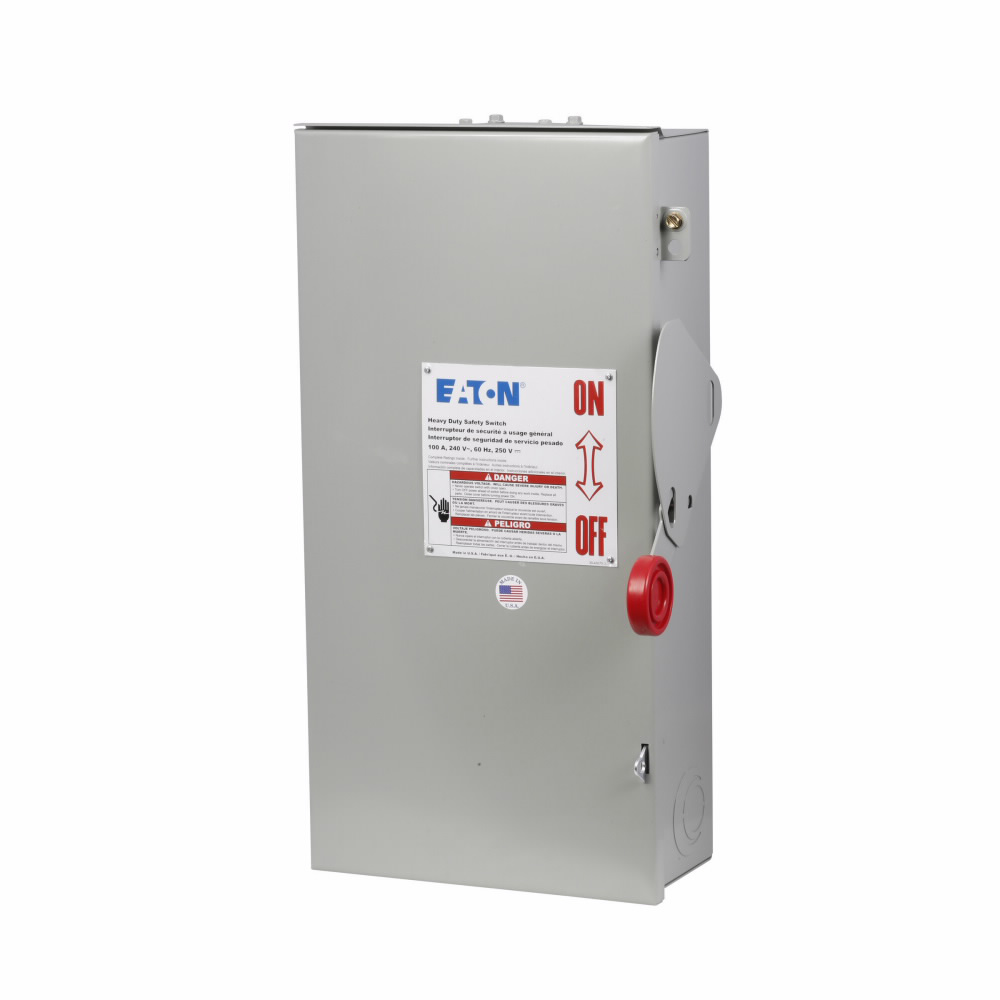

ETN DH323FRK 100A/3P HD Fusible Sft

Manufacturer: Cutler-Hammer / Eaton | Catalog # DH323FRK | Cooper Electric Part # 418763
$752.42/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Etn Enhan visible blade single-throw safety swtch, 100 A, NEMA 3R, Painted galvanized steel, Class H, Fus without neutral, 3-P, 3-wire, 240 V, Max Hp: 7.5, 15/ 15, 30/ 20 hp (1,3PH @Std/TD/250 Vdc), #14-#1/0 Cu/Al,200KA@ 480V & 100K @ 600V

Technical Information

Amperage
100 Amp
Applications
Commercial / Institutional Buildings / Structures - Power Distribution and Controls
Conductor Size
14-1/0 AWG
Enclosure
3R
Enclosure Material
Steel
Material
Steel
NEMA Size
3R
Number of Poles
3 Pole
Number of Wires
3 Wire
Type
Heavy Duty Fusible Safety Switch
Voltage
240 Volt
Wire Size
14-0 AWG

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
782113206257
GTiN
00782113206257
Product UPC
78211320625
Weight
25 lb

Dimensions

Height
9 Inch
Length
22-1/2 Inch
