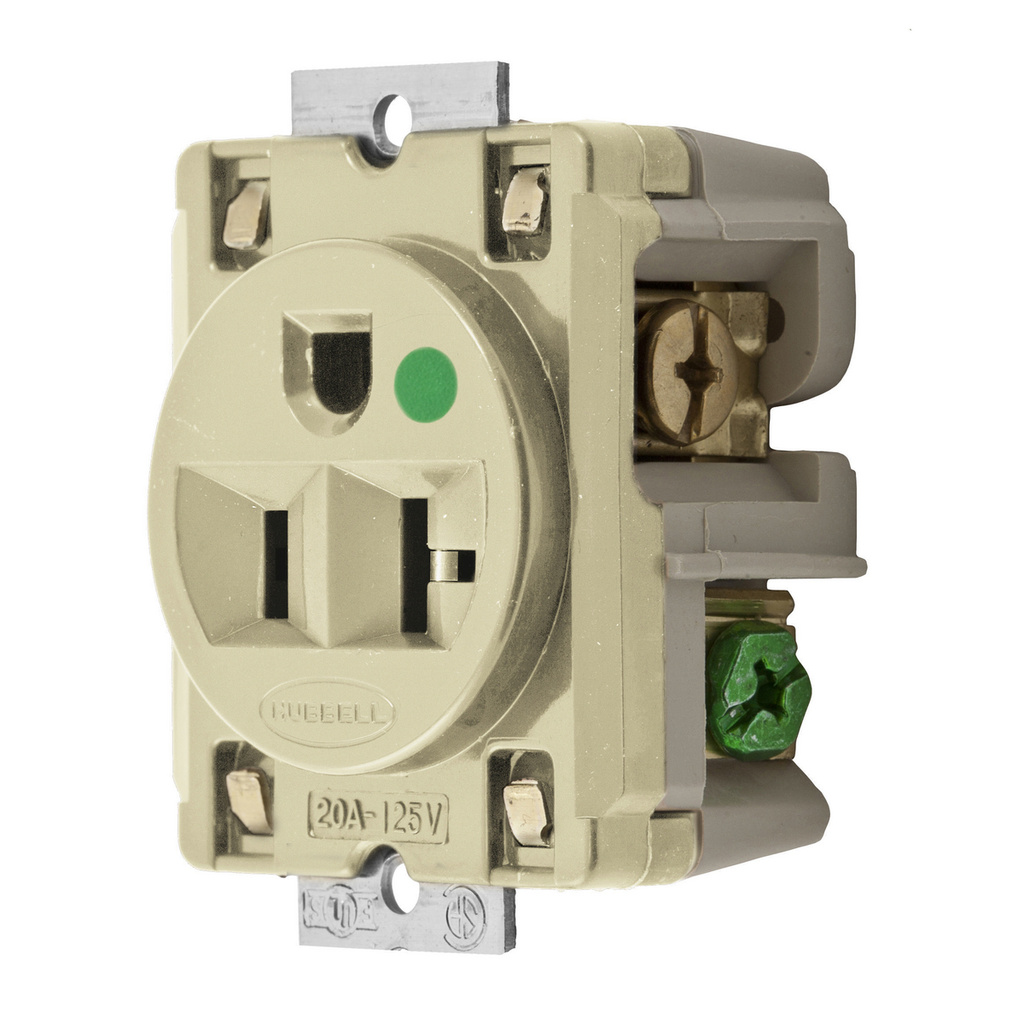

Product image for Hubbell HBL8384I PANEL MT Receptacle, HG, 20A 125V, 5-20R, IV
Email

Hubbell HBL8384I PANEL MT Receptacle, HG, 20A 125V, 5-20R, IV

Manufacturer: Hubbell Wiring Device | Catalog # HBL8384I | Cooper Electric Part # 418231
$46.41/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Panel Mounted Single, Hospital Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Ivory, Single Pack, Panel Mounted.

Technical Information

Amperage
20 Amp
Applications
Extra Heavy Duty Hospital Grade
Base Material
PBT
Conductor Size
12-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Hospital
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Finder Groove Face
TC Connection
Back and Side Wired Terminal Screws
Type
Single
Voltage
125 Volt
Wattage
2500 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585016344
Color
Ivory
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585016344
Product Series
Hospital Grade
Product UPC
78358501634
Weight
0.25 lb

Dimensions

Height
1.19 Inch
Length
3.28 Inch
Width
1.63 in

Certifications and Compliance

Country of Origin
USA
Features
  • One-piece nickel-plated brass integral ground strap
  • Patented bypass contact design
  • Panel Mount
