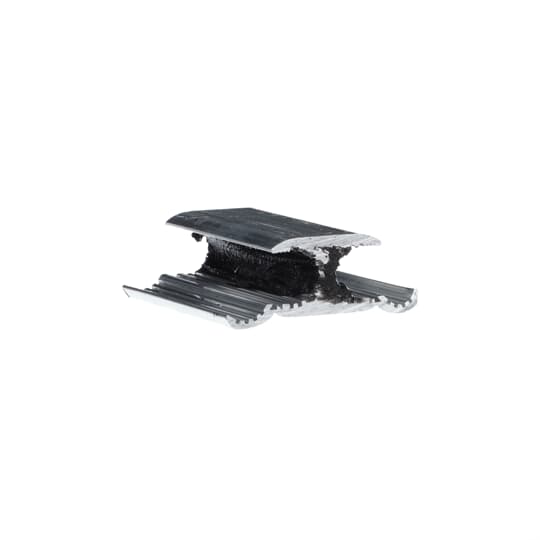

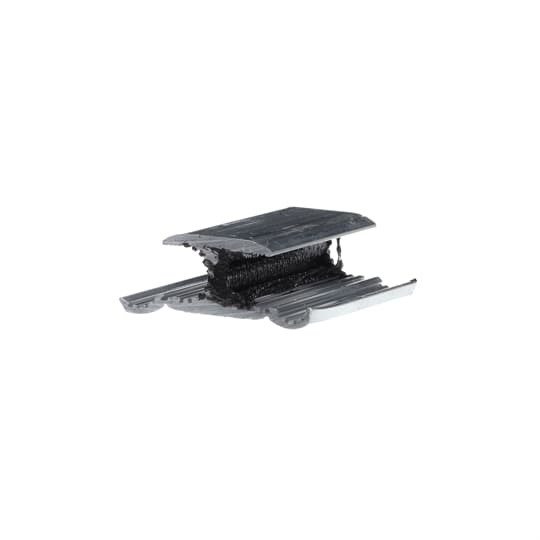

Blackburn WR419 Compression Connector

Manufacturer: Blackburn / Thomas & Betts | Catalog # WR419 | Cooper Electric Part # 416456
$5.98/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
353 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Safety Data Sheet Product Brochure
Aluminum Wide Range H-Type Compression Connector, Industry Standard Size Code 7, Main: 4/0 - 3/0 ACSR, 4/0 - 3/0 Str. Tap: 4/0 - 3/0 ACSR, 4/0 - 3/0 Str. Die: D, D3

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Connection Type
Compression
Insulated?
No
Material
Aluminum
Mounting Type
None
Number of Conductors
2
Size
Length 2-7/16 inch
TC Connection
Compression
Temperature Rating
90 degrees C
Type
Wide-Range, Parallel, Long Sleeve
Wire Size
Main: 4/0-3/0 ACSR or 4/0 STR AWG ; Tap: 2-6 ACSR or 1-6 STR or 1/0-6 SOL AWG

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786100118
Finish
Tin Plated
GTiN
05415022349320
Product UPC
78378610011
Used With
Round, Solid and Stranded Conductors, Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors

Dimensions

Length
2-7/16 Inch
Features
  • Fold-in tabs provide positive tab interlock as tool closes.
  • Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.
  • Enables excellent connector contact without distorting the conductor's shape.
  • RUS accepted and complies with ANSI C119.4
