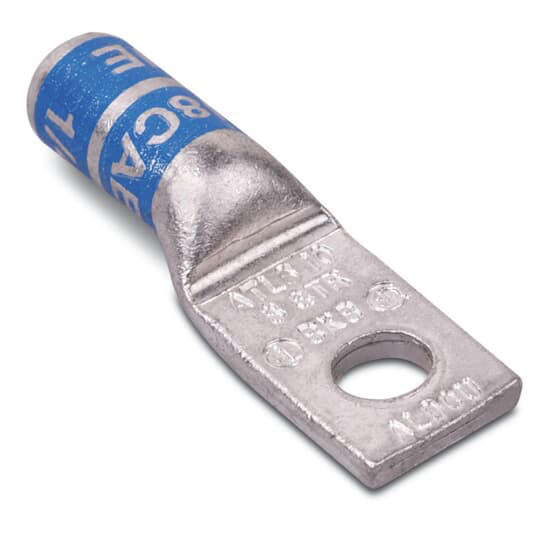

Product image for Blackburn ATL20-38 Aluminum Compression Lug
Image thumbnail 0
Image thumbnail 1
Email

Blackburn ATL20-38 Aluminum Compression Lug

Manufacturer: Blackburn / Thomas & Betts | Catalog # ATL20-38 | Cooper Electric Part # 414845
$1,629.24/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual Safety Data Sheet Product Brochure
Type ATL Aluminum One-Hole Lug, Max 35kV, Wire Size 2/0 Str, 3/8 Inch Bolt Hole, Tin Plated, Die Color Code Olive

Technical Information

Applications
For Aluminum and Copper Conductor
Barrel Length
Standard
Barrel Shape
Standard
Barrel Type
Chamfered
Cable Size
2/0 AWG
Conductor Size
2/0 AWG
Die Color
Olive
Material
Aluminum
Number of Holes
1 Hole
Number of Studs
1
Standard
UL E9809
Stud Size
3/8 in
Tongue Angle
Straight
Type
Round/Sector Shaped
Voltage
35 Volt

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786610976
Color
Olive
Finish
Tin Plated
GTiN
05415022239607
Product UPC
78378661097

Dimensions

Height
2.3 Inch
Width
2.8 in
Features
  • UL Listed when installed with Blackburn, Burndy, T&B or Andersons Tools.
  • Made of high-conductivity seamless aluminum tubing. Tin plated for corrosion resistance.
  • Color-coded for matching die identification. Prefilled with oxide inhibiting compound.
  • Specifically chamfered barrel for ease of installation.
Certifications
  • UL
  • CSA
Notes
  • For use with aluminum conductor (concentric, compressed or compact). Also listed for use with copper conductor.
