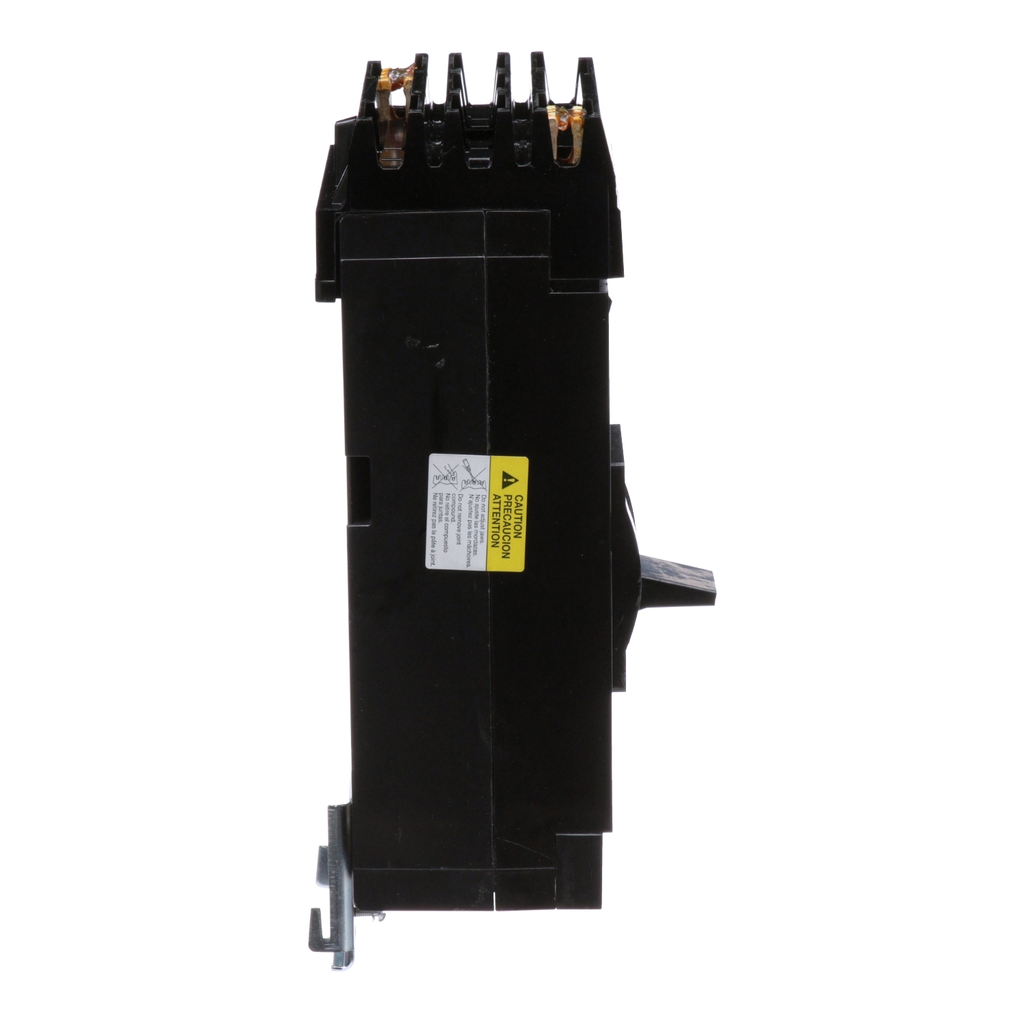

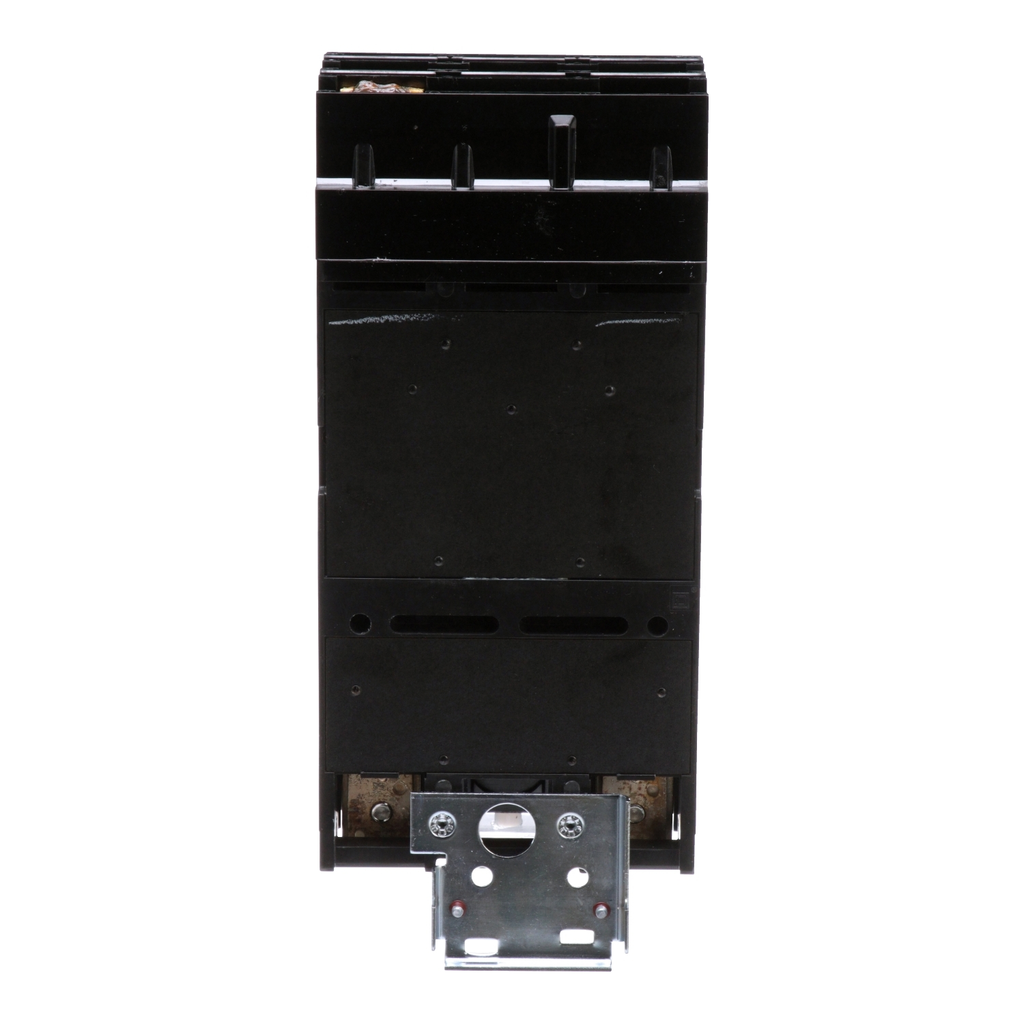

Square D LHP36400MB 600 Volt Molded Case Circuit Breaker

Manufacturer: Square-D / Schneider | Catalog # LHP36400MB | Cooper Electric Part # 414562
$7,598.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2
Square D FA/LA Molded Case Circuit Breakers is designed to protect electrical systems from damage caused by overloads and short circuits. For distribution systems supplied by transformers and distribution systems supplied by engine generator sets.

Technical Information

Actuator
SHORT LEVER
Amperage
400 Amp
Current
400 Amp
Frame
H
Interrupt Rating
25, 35, 50, 65 kAIC
Line Rated Current
400 A
Mounting Type
Unit Mount
Number of Poles
3 Pole
TC Connection
AWG 1...600 KCMIL ALUMINIUM/COPPER)1 -AWG 1...250 KCMIL ALUMINIUM/COPPER)2,LUGS LOAD-TERMINAL LINE
Terminal Type
AL400LA
Trip Range
400 A
Trip Type
THERMAL-MAGNETIC
Type
Circuit breaker
Voltage
600 Volt

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901205128
GTiN
00785901205128
Product UPC
78590120512

Dimensions

Depth
4 Inch
Height
12-1/2 Inch
Length
4 Inch
Warranty Length
18 mth
Width
6 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,UL Listed
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • AL400LA
  • LA400LS
  • PKOGTA2
  • CU400LA
  • LA400DS
  • LA400AWK
  • SN400LA
  • SN225KA
  • 400SN
