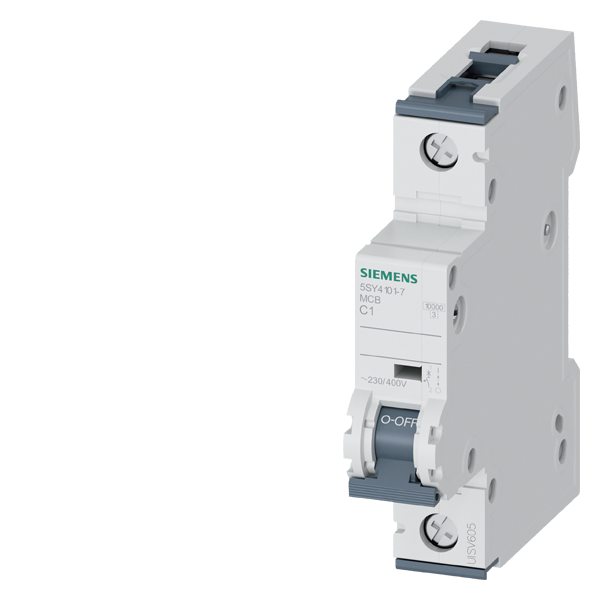

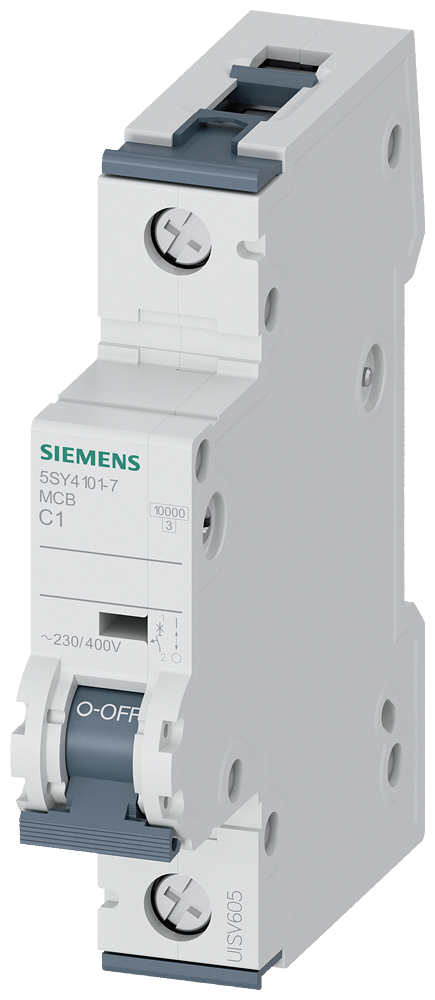

Siemens 5SY4101-7 1 Amp C Curve 1-Pole Supplementary Protector

Manufacturer: Siemens | Catalog # 5SY4101-7 | Cooper Electric Part # 413020
$58.15/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
SUPPLEMENTARY PROTECTOR,1P,1A,CURVE C Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 1 Pole, 1 Amps, 277 VAC, Trip Characteristic Curve C, 18mm Width, 70mm Depth, UL File E116386 in Vol. 1 Sec. 2

Technical Information

Amperage
1 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
1 AMP
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
1 Pole
Response Time
N/A
Short Circuit Current
5 kA
Size
N/A
Standard
EN 60 898,EN 60 947-2,CSA 22.2 NO. 235,CE,UL 1077,IEC
TC Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554862293
Class
C
GTiN
04001869181301
Product UPC
75455486229
Weight
0.340 lb

Dimensions

Height
2.95 Inch
Length
3-1/2 Inch
Width
0.650 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.017 kg
Green End-of-Life CO2
0.167 kg
Green Manufacturing CO2
0.678 kg
Green Total CO2
8.607 kg
Green Transport-to-DC CO2
0.122 kg
Green Use-Phase CO2
7.623 kg
