Product image for 3M 70 1* x 30ft Scotch® Self-Fusing Silicone Rubber Electrical Tape, Sky Blue Gray (7000006225)
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

3M 70 1* x 30ft Scotch® Self-Fusing Silicone Rubber Electrical Tape, Sky Blue Gray (7000006225)

Manufacturer: 3M | Catalog # 7000006225 | Cooper Electric Part # 410820
$158.69/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 5:00pm ET
16 available

For Delivery

Order by 5:00pm ET for delivery tomorrow
Not in local stock *
Check another branch
Product Spec Sheet Product Catalog Page Product Brochure

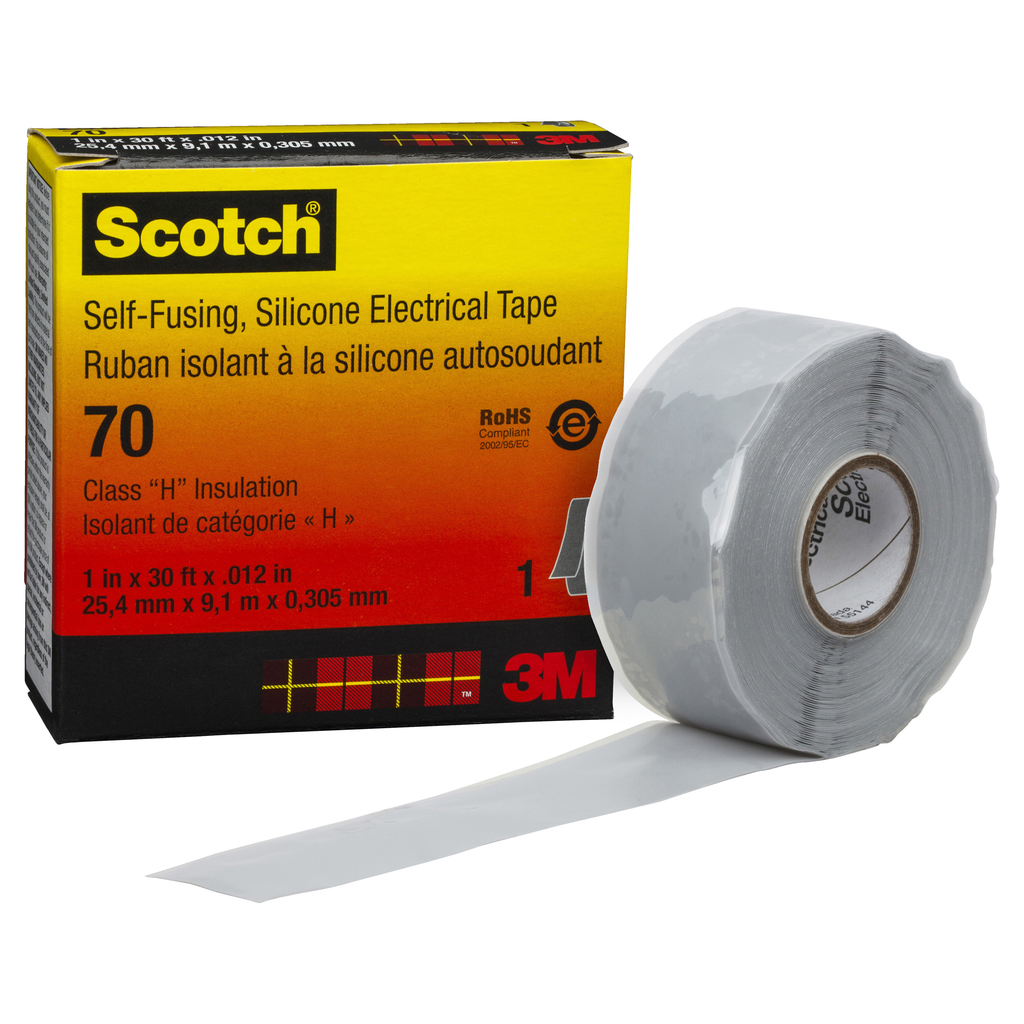

The Scotch® Self-Fusing Silicone Rubber Electrical Tape 70 is a 12 mil (0.3 mm) thick, premium-grade, electrical tape with silicone rubber backing. This tape is used as a base tape layer for easy re-enter connections. It withstands temperatures up to 356.F (180.C).

Technical Information

Adhesive Type
Non-Adhesive
Applications
Electrical Maintenance,Insulation
Backing Material
Silicone
Material
Rubber
Max Operating Temperature
180.0 degrees C
Min Operating Temperature
0.0 degrees C
Operating Temperature
180 degrees C
Size
1 in x 30 ft
Type
Rubber Insulating and Splicing

Manufacturer Information

Brand
Scotch
Sub Brand
Scotch

General Product Info

12-Digit UPC
051128572610
Color
Gray,Sky Blue
GTiN
00051128572610
Product Type
Rubber Tapes
Product UPC
05112857261

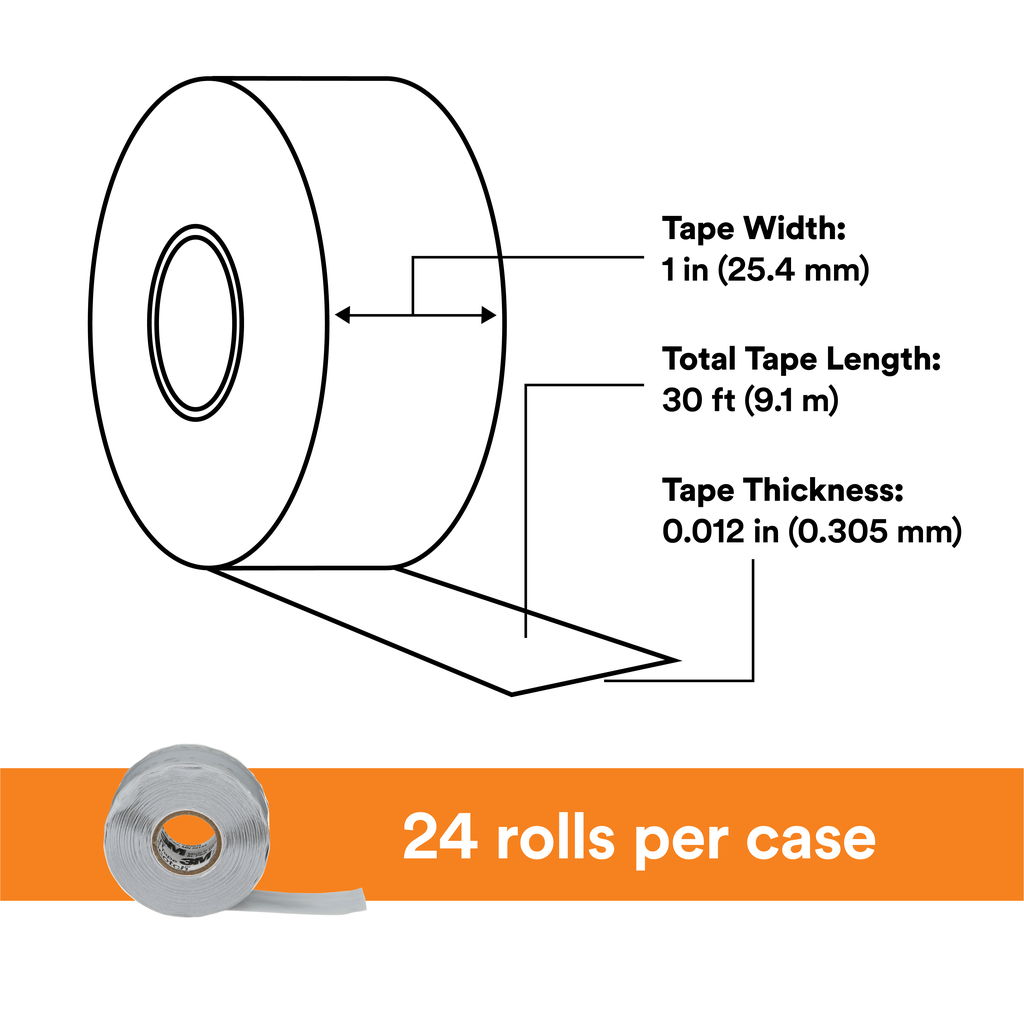

Dimensions

Length
30 Foot
Overall Length
30.0 ft
Thickness
0.3 mm
Width
1.0 in

Certifications and Compliance

Country of Origin
Canada
Features
  • Provides protection from weather conditions, UV exposure, and is workable at extremely low temps
  • High dielectric strength (high voltage use)

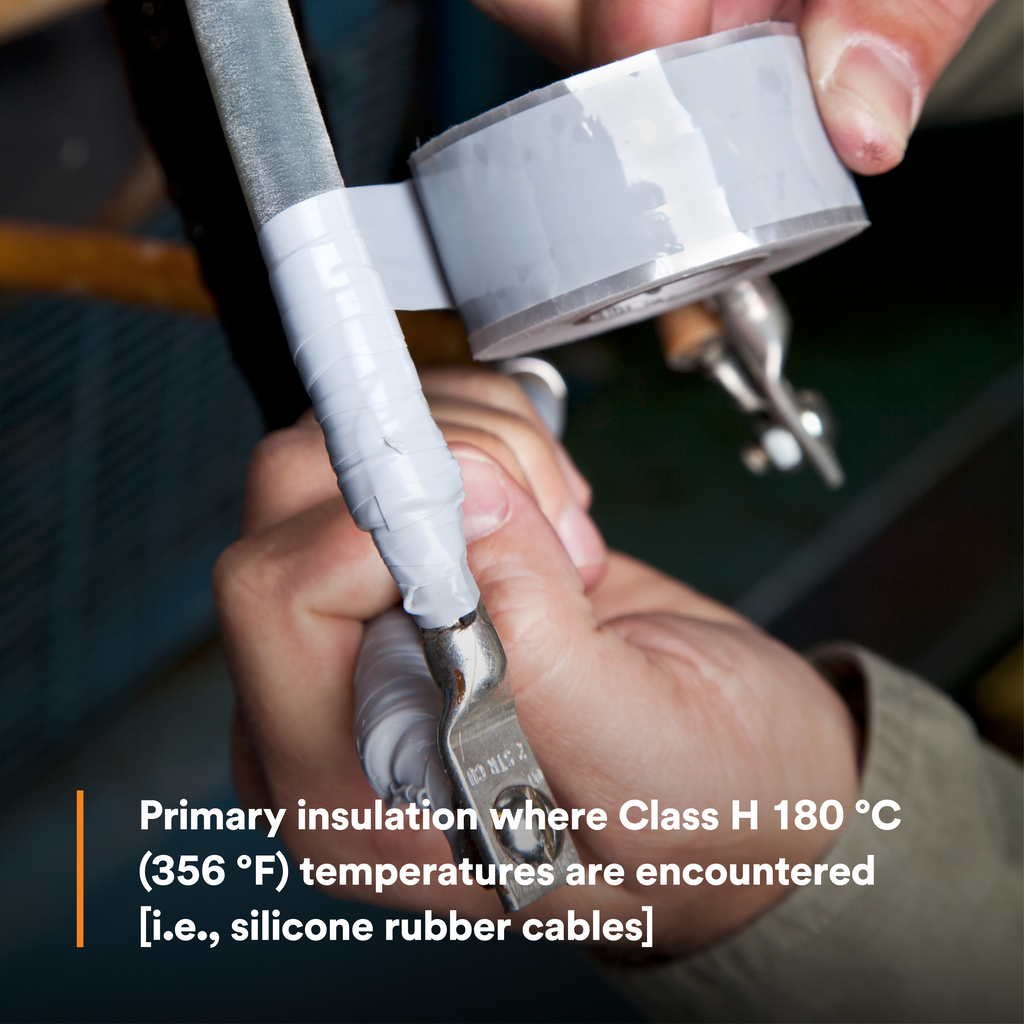

  • Class H temperature rated based on silicone material properties 356F (180C)
  • Apply in half-lapped layers using moderate tension and apply last lap with zero stretch
  • Can be applied over exposed cable insulation or end seal used with molded (slip-on) stress cones
  • Meets Commercial Item Description: A-A-59163 Class I, Type I and RoHS 2011/65/EU Compliant
