Specified Technologies Inc. (STI) FSR200 2 Inch Split Firestop Sleeve Kit

Manufacturer: Specified Technologies Inc | Catalog # FSR200 | Cooper Electric Part # 410793
$159.99/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

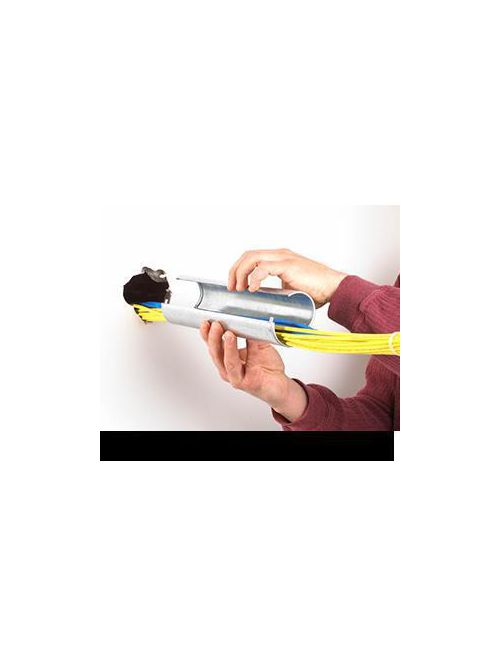

SpecSeal Ready Split Sleeve kits easily install around existing cables. Each Ready Split Sleeve kit includes two preformed steel sleeve halves with rolled edges, steel escutcheon plates with intumescent gaskets, and a dosage of our SpecSeal SSP Firestop Putty. Ready Split Sleeve's two-piece body and plates easily capture previously installed cables while tightly fastening to the penetrated barrier.

Technical Information

Material
Steel
Type
Ready Sleeve

Manufacturer Information

Brand
SpecSeal

General Product Info

12-Digit UPC
730573220009
Color
Silver
Product UPC
73057322000
Weight
2.87 lb

Dimensions

Height
2 Inch
Length
15 Inch
Width
6 in

Certifications and Compliance

Country of Origin
USA
Features
  • All data, video, communication, power, and control cabling shall be installed through sleeves wherever said cables penetrate fire resistance rated barriers. In the case of existing cable installation, a split sleeve device with corresponding split escutcheon plates to facilitate installation around existing cables shall be used. Sleeves shall be sized to accommodate present cable bundle diameter as well as anticipated growth. Split sleeve kit provided with intumescent gaskets and non-hardening intumescent firestop putty. When irregularly shaped openings are encountered, the split sleeve device shall be UL tested and certified for this purpose. The split sleeve device shall be UL Certified and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115. Split sleeve kit shall be UL tested in larger or irregularly shaped openings and include provisions for mounting device in such openings.
  • Complete kit including wall labels., Offered in three sizes: 1in., 2 in., & 4 in. diam., Sized for assemblies up to 10 in. thick., Oversized escutcheon plates and gaskets available for larger openings.
  • Split design - for use with existing cables
  • Oversize openings - UL tested for larger and irregularly shaped openings
  • Ready to install - no cutting required, no waste
  • Locks into place - no support struts and clamps required
  • No external firestop seal required - factory supplied intumescent firestop gasket
  • Firestop putty provided with kit - sufficient to seal ends to 1 in (25 mm) depth
  • UL Certified and code compliant
  • For rated and non-rated barriers - putty seal impedes the passage of fire, smoke, superheated gases, particulate dust, and minimizes noise transmission
  • Offered in three sizes: 1\", 2\", & 4\" diameter
  • Complete kit including wall labels
Standards and Certifications
  • ASTM E814
  • UL 1479
  • CAN/ULC S115
  • ASTM E814 (UL1479)
  • CAN/ULC-S115
  • FM Approved: No
  • UL Certified Firestop: Yes
  • FBC System Compatible: No
Applications
  • Cables
  • Cable Tray
Properties
  • Low VOC
  • No Expiration
  • Re-Enterable
  • Smoke Barrier
Construction Type
  • Ready split sleeves are used to protect or support cables in both non-rated and rated construction. Ready split sleeves are suitable for use in all common constructions including concrete floors, concrete walls, concrete block walls, and gypsum board/stud wall assemblies up to 10 in (250 mm) thick.
Industry
  • Residential
  • Commercial
  • Industrial
  • Construction
  • Government
Recommended Use
  • Ready split sleeves are a complete UL Certified out-of-the-box solution for new or existing cable penetrations through walls and floors.
