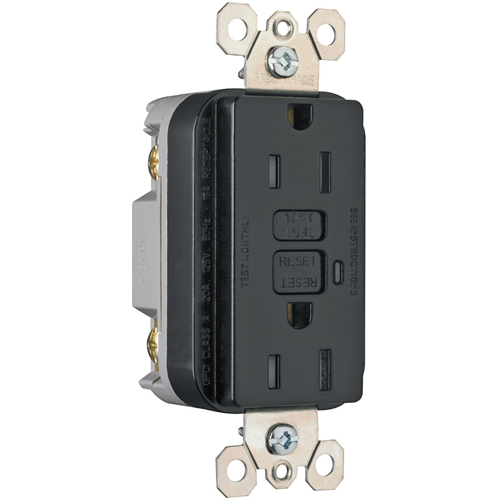

Pass & Seymour 1595-TRBK GFCI Tamper-Resistant Receptacle, 10Ka SCCR,15A 125Vac, Black

Manufacturer: Pass & Seymour / Legrand | Catalog # 1595-TRBK | Cooper Electric Part # 407607
$36.01/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. Our spec-grade GFCI are the most durable GFCI available. Also features patented SafeLock™ protection.if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected.

Technical Information

Amperage
15 Amp
Conductor Size
14-10 AWG
Connection Type
Screw Terminal
Grade
Specification
Material
Thermoplastic
Mounting Type
Flush
NEMA
5-15R
Style
Decorator
Type
Decorator, Tamper-Resistant
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
TradeMaster, SafeLock

General Product Info

12-Digit UPC
785007243611
Color
Black
Finish
Matte
GTiN
00785007243611
Product Series
TradeMaster
Product UPC
78500724361

Dimensions

Depth
1.13 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • Two back wire holes per terminal.
  • FSUL Listed (Federal Specification WC596).
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • 10kA short circuit rating.
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire.
  • Protects children: patented shutter system helps prevent improper insertion of foreign objects.
  • For covering patents, see www.legrand.us/patents.
  • 1/4\" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • Class A rated GFCI.
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • Ground screw has a back wire clamp for easy installation.
  • Dual-direction test and reset buttons.
  • Button colors match the device face.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Extra-long strap.
  • High-impact-resistant thermoplastic construction.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Trip indicator light (red LED).
  • Tri-drive screws.
  • Meets 2008 National Electrical Code® Tamper-Resistant requirements.
  • Supplied with matching TP26 nylon wall plate.
Available Options
  • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Brown
  • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, White
  • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Gray
  • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Ivory
  • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Black
  • TradeMaster®/Spec Grade Tamper-Resistant 15A Duplex GFCI, Light Almond
