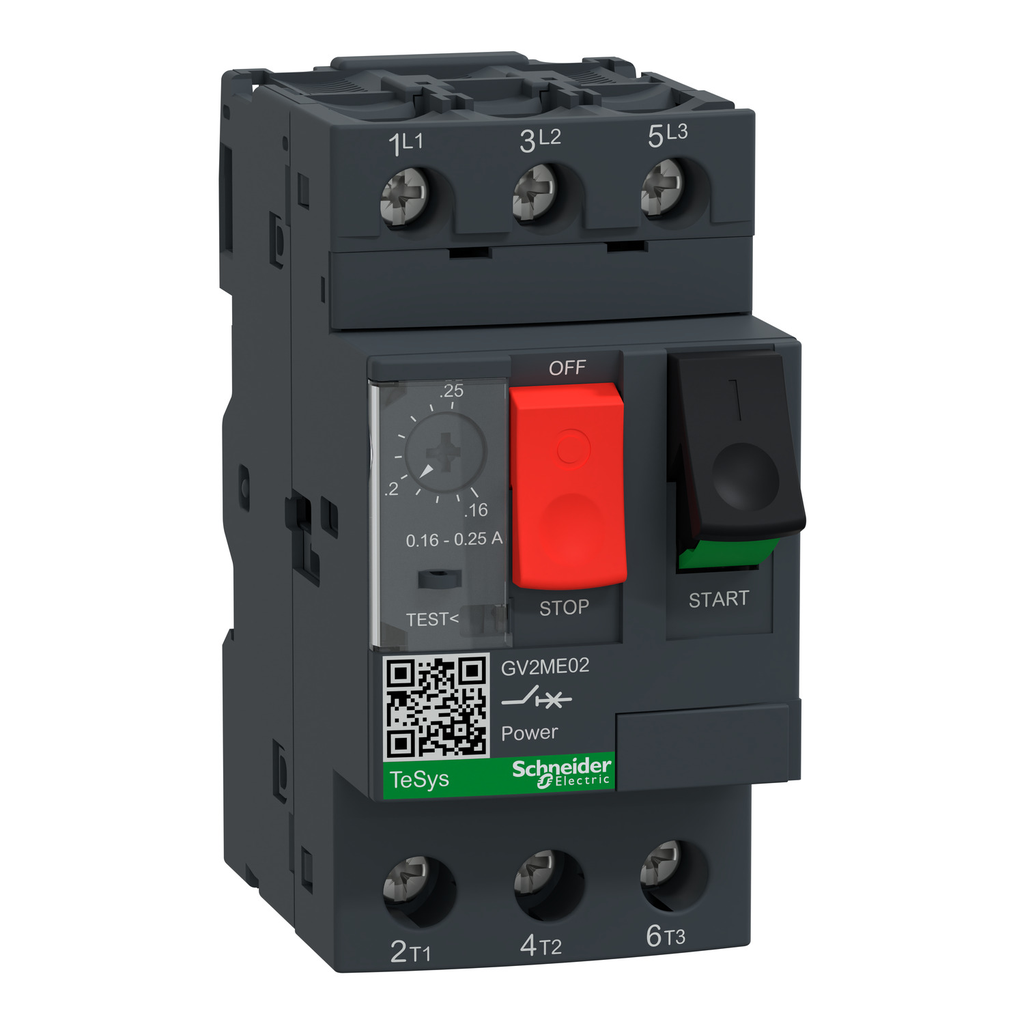

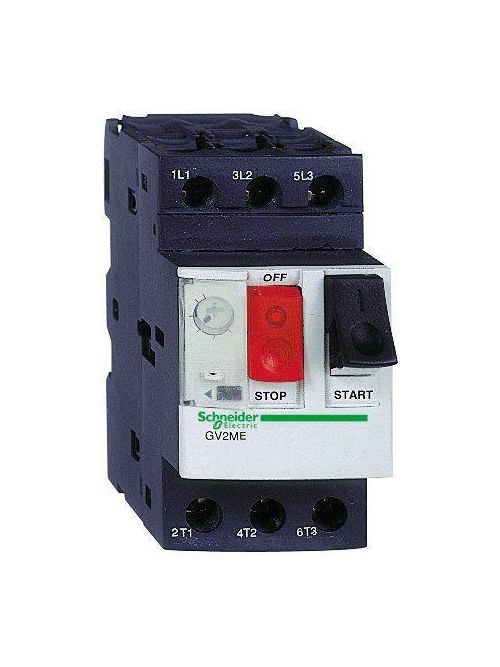

Product image for Square D GV2ME02 3-Pole 600 VAC 25 Amp Manual Starter
Image thumbnail 0
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Email

Square D GV2ME02 3-Pole 600 VAC 25 Amp Manual Starter

Manufacturer: Square-D / Schneider | Catalog # GV2ME02 | Cooper Electric Part # 407512
$205.97/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Closes 6:00pm ET
11 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
TeSys GV motor circuit breaker, 3 poles (3P), 0.25A/690V, for 3-phase motor applications 0.06kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.16-0.25A, magnetic tripping at 9xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Technical Information

Amperage
0.25 Amp
Applications
MOTOR
Control Type
Push-button
Enclosure
IP20 CONFORMING TO IEC 60529
Line Rated Current
0.25 A
Net Weight
0.26 kg
Number of Poles
3 Pole
Operating Cycles
25 cyc/h
Operating Temperature
-20...60 degrees C
Range
TeSys
Reset Type
AMBIENT COMPENSATED BIMETALLIC (CLASS 10) 0.16A TO 0.25A
Size
3.09 in
Standard
EN/IEC 60947-2,EN/IEC 60947-4-1
Storage Temperature
-40-80 degrees C
TC Connection
SCREW CLAMP TERMINALS 2 1-6 MMA SOLID- SCREW CLAMP TERMINALS 2 1.5-6 MMA FLEXIBLE WITHOUT CABLE END- SCREW CLAMP TERMINALS 2 1-4 MMA FLEXIBLE WITH CABLE END
Trip Point
2.4-2.4 A
Type
GV2ME;Circuit breaker
Voltage
690 Volt

Manufacturer Information

Brand
Schneider Electric
Sub Brand
TeSys GV2;TeSys Deca

General Product Info

12-Digit UPC
389110342973
Color
Gray
GTiN
03389110342970
Product UPC
78590121189
Weight
0.26 kg

Dimensions

Depth
78.5 mm
Height
89 mm
Warranty Length
18 mth
Width
45 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Certifications
ATEX,BV,CCC,CSA,DNV-GL,EAC,LROS (Lloyds Register Of Shipping),RINA,UKCA,UL
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Compatible Products
  • GVAE11
  • GVAN11
  • GVAE1
  • GV2AF3
  • GVAE20
  • GVAD1010
  • GV1G09
  • GV2G445
  • GV2G245
  • GV2G345
  • GVAD0110
  • GVAN20
  • GV2G454
  • GVAD1001
  • GV2G554
  • GV2G254
  • GV2G354
  • GV2G05
  • GVAU385
  • GV2AF02
  • GV2AF4
  • GVAS225
  • GV1L3
  • GV1G02
  • GVAU225
  • GVAS025
  • LAD311
  • GVAD0101
  • GVAM11
  • LAD31
  • GVAX385
  • GVAU226
  • GVAX225
  • GVAS385
  • GVAU415
  • GK2AF01
  • GVAS226
  • GVAU116
  • GV2G472
  • GVAS026
  • GV2G272
  • GVAU025
  • GVAU207
  • GVAU115
  • GVAX116
  • GVAS415
  • GVAS207
  • GVAX115
  • GVAU505
  • GVAS116
Cross Sell Products
  • LC1D09BD
  • LC1D09P7
  • LC1D09B7
  • LC1D09F7
  • LC1D09E7
  • LC1D09FD
