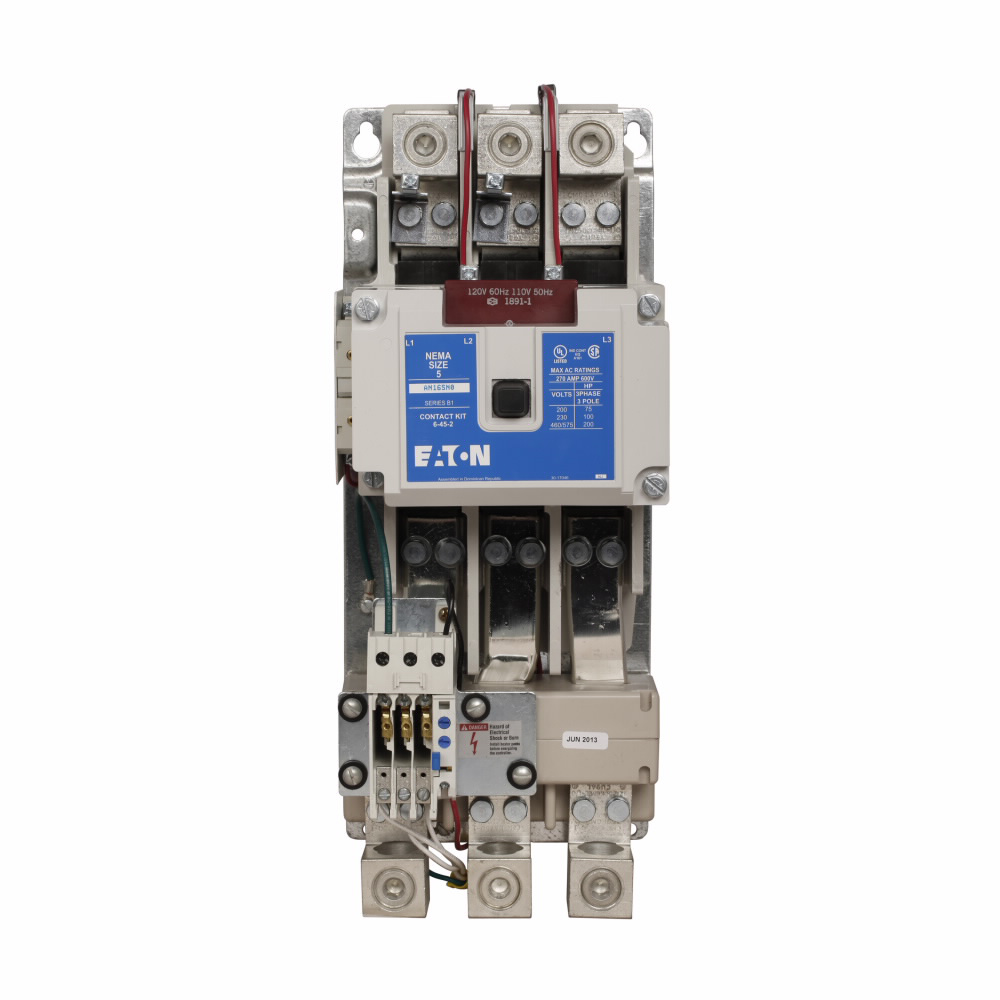

Product image for Eaton AN16SN0AB NEMA Freedom Series Non-Reversing Reset Overload Relay Starter
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

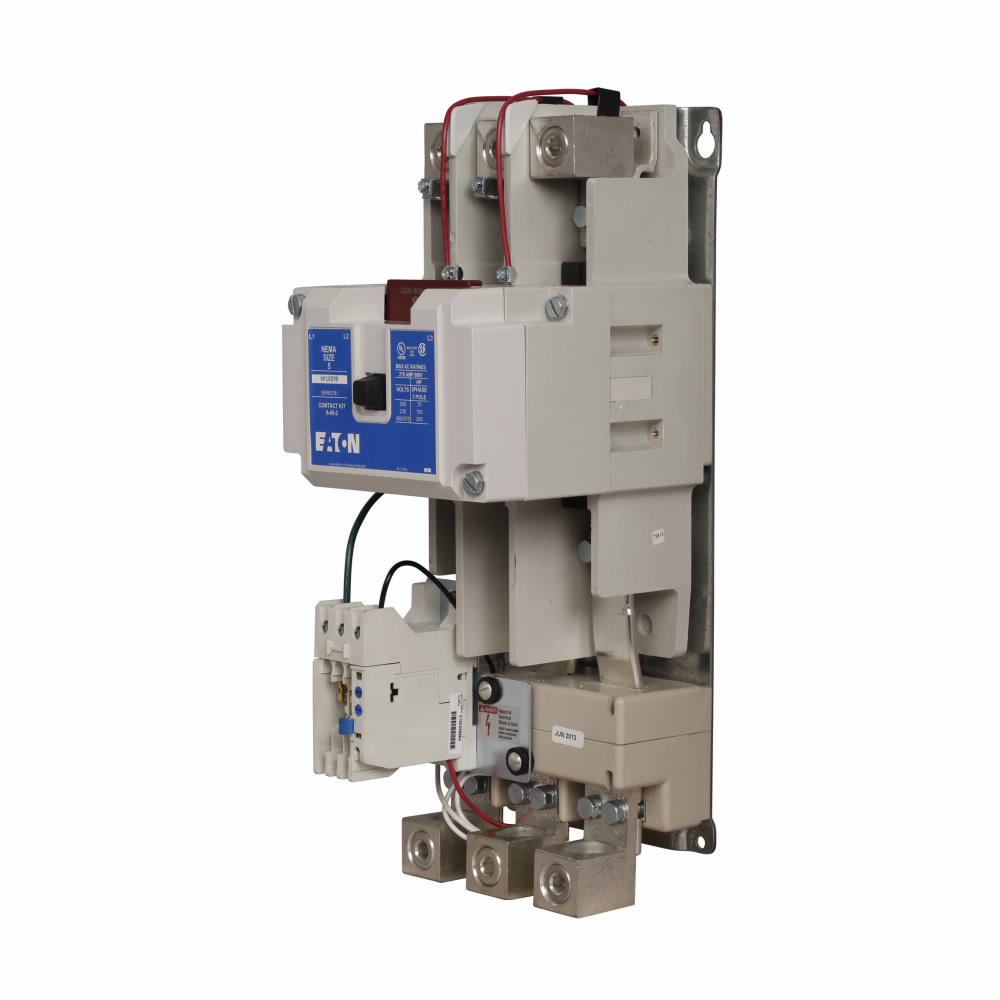

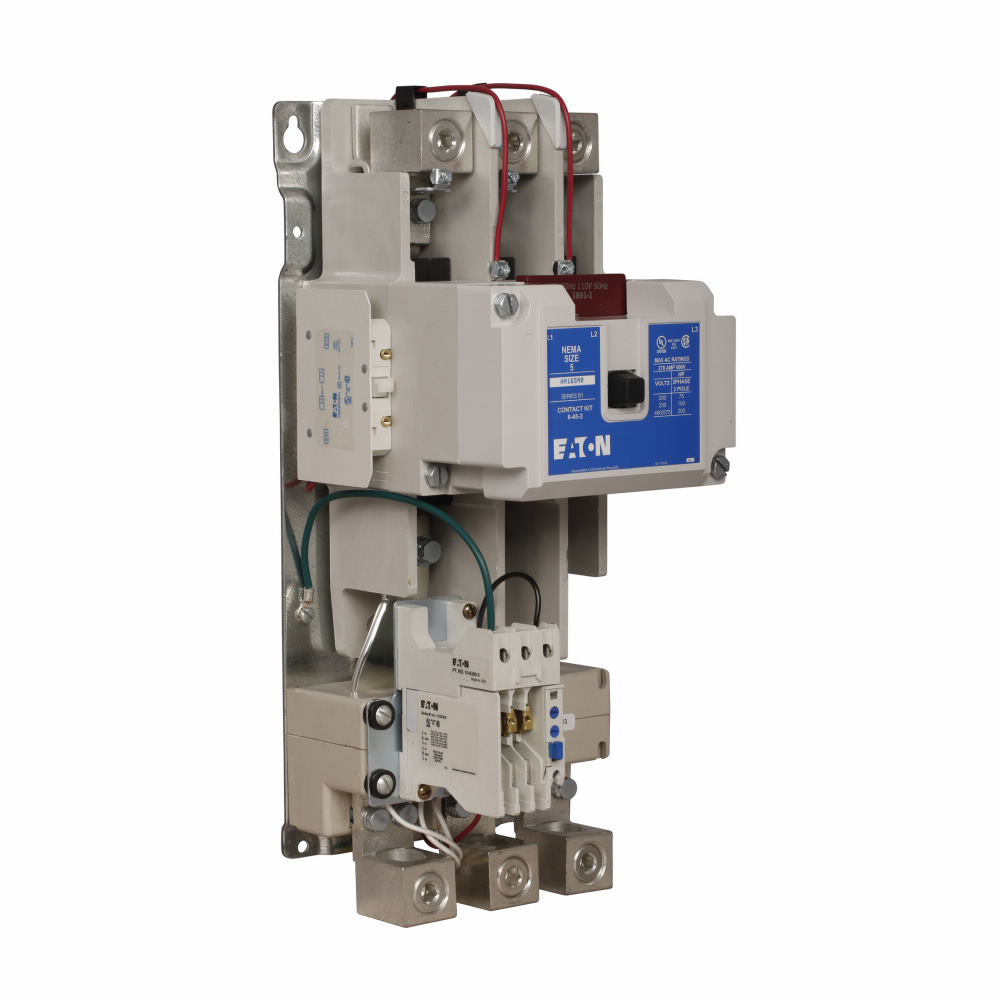

Eaton AN16SN0AB NEMA Freedom Series Non-Reversing Reset Overload Relay Starter

Manufacturer: Cutler-Hammer / Eaton | Catalog # AN16SN0AB | Cooper Electric Part # 407454
$16,628.76/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page
Eaton Freedom NEMA motor control starter, NEMA Freedom Series Non-Reversing Reset Overload Relay Starter, 75 hp at 208V, 100 hp at 240V, 200 hp at 480,600V maximum horsepower, 120V/60 Hz or 110V/50 Hz coil voltage, 270A, Three-pole, Size 5

Technical Information

Actuator
Lever
Amperage
270 Amp
Applications
For Stationary Machinery and Equipment Outside Factory
Coil Voltage
120 V at 60 Hz, 110 V at 50 Hz
Horsepower
100 hp
Mounting Type
Horizontal
NEMA Size
5
Number of Phases
3 Phase
Number of Poles
3 Pole
Size
5
Standard
UL,CSA
Type
Motor control starter

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
782113971889
GTiN
00782113971889
Product UPC
78211397188
Weight
25 lb

Dimensions

Height
7.22 Inch
Length
7-3/4 Inch
Width
12 in
