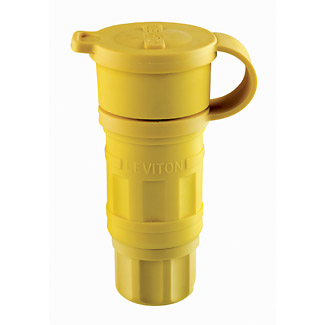

Leviton 15W33 125 Volt 20 Amp 2-Pole 3-Wire NEMA 5-20R Yellow Thermoplastic Grounding Straight Blade Connector

Manufacturer: Leviton Mfg Co | Catalog # 15W33 | Cooper Electric Part # 406370
$93.66/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Connector, Straight Blade, Industrial Grade, Grounding, Wetguard - YELLOW

Technical Information

Actuator
Stainless Steel 300,Stainless Steel 300
Amperage
20 Amp
Applications
For Industrial
Blade Type
Nickel-Plated Brass,Nickel-Plated Brass
Body Material
EPTR Rubber
Conductor Size
16-10 AWG
Connection Type
Screw Terminal
Cord Type
S,SO,SOW,ST
Device Type
Straight Blade Connector
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
IP Rating
IP66,IP67,IP69K
Material
TPV
Mounting Type
Cable

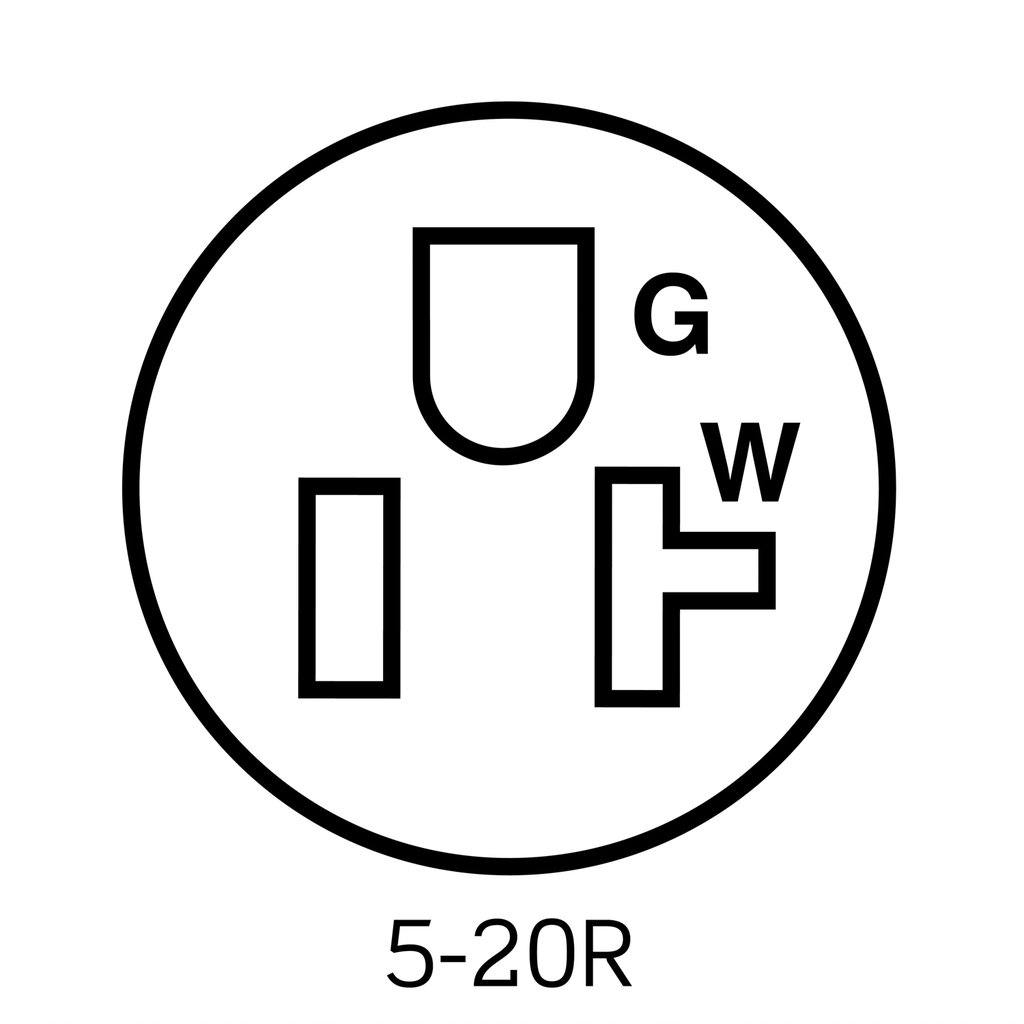

NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
1.78 Diameter X 4.22 L IN
Standard
ANSI C-73
TC Connection
Screw Terminal
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Torque
12 lb-in
Type
Halogen Free
Voltage
125 Volt
Wire Count
3
Wire Size
16-10 AWG
Wire Type
S, ST, SO, SOW

Manufacturer Information

Brand
Leviton
Sub Brand
Wetguard®

General Product Info

12-Digit UPC
078477848265
Color
Yellow
Environment
Wet
Environmental Conditions
Watertight
GTiN
00078477848265
Product UPC
07847784826

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents.
  • ADVANCED LID DESIGN- Our spring-loaded flip lid is impact and chemical resistant with a Valox® PBT cover
  • MORE SECURE- Dual-hasp provides additional lockout/tagout option for added security.
  • DURABLE- Ideal for harsh environments with added resistance against heat, chemical corrosion, and physical abrasion
Color Variations
  • Black
NEMA
  • 5-20R
