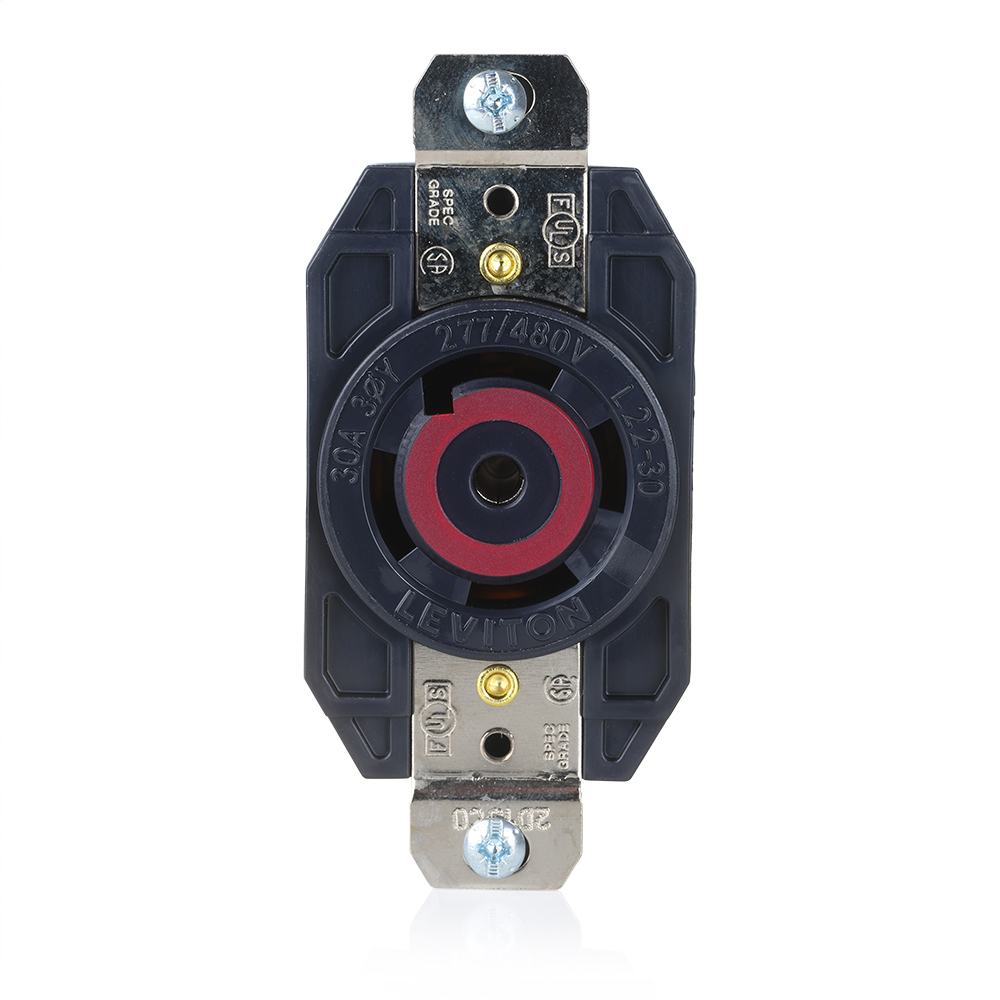

Product image for LEV 2820 EB REC SGL LOCK GRND 4PO5W
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

LEV 2820 EB REC SGL LOCK GRND 4PO5W

Manufacturer: Leviton Mfg Co | Catalog # 2820 | Cooper Electric Part # 404589
$133.96/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
30 Amp, 277/480 Volt 3-Phase Y, NEMA L22-30R, 4P, 5W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding - BLACK

Technical Information

Amperage
30 Amp
Applications
For Commercial
Base Material
Nylon,Nylon
Body Material
Nylon
Conductor Size
14-8 AWG
Connection Type
Back and Side Wired
Contact Material
Brass,Brass
Cover Material
Valox
Device Type
Locking Receptacle
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial
Grounding
Grounding
Horsepower
10 hp
Material
PBT
Mounting Type
Box, Flush
NEMA

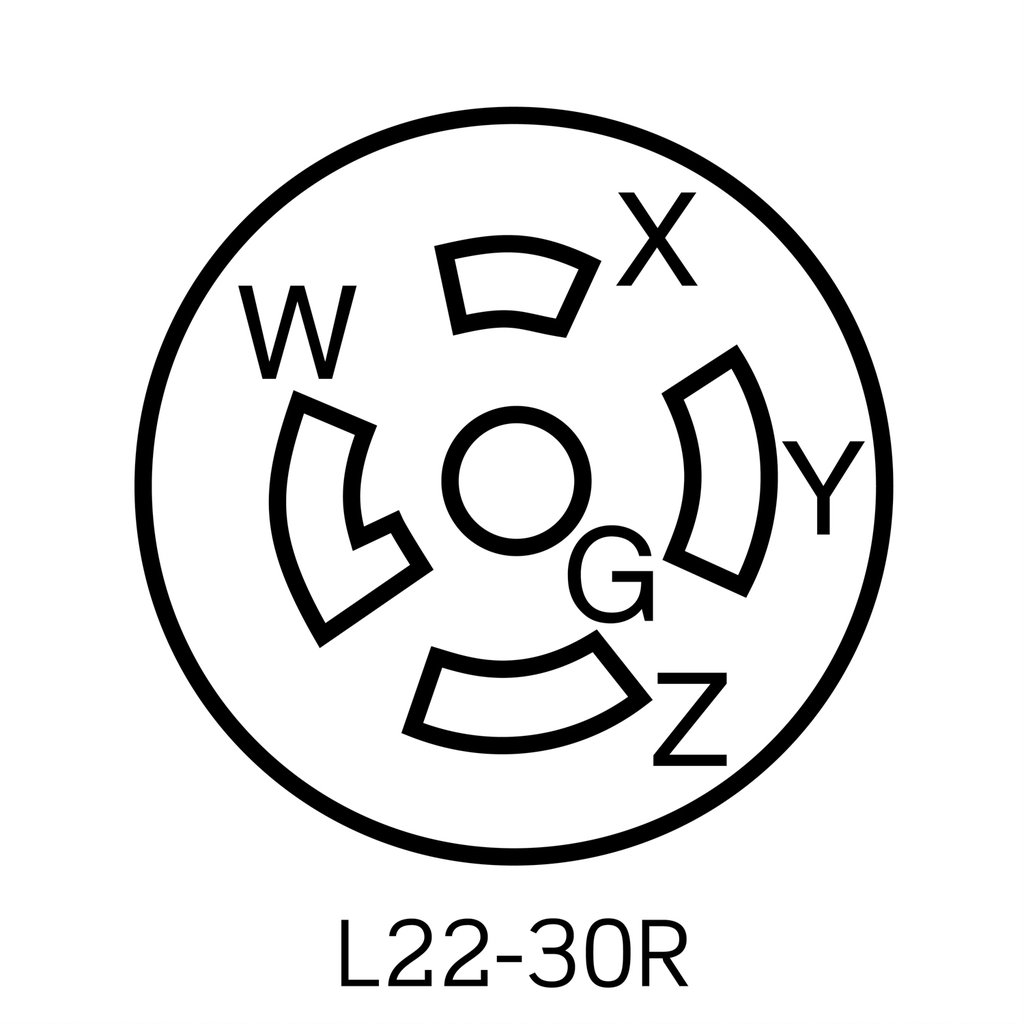

L22-30R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 to 60 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Material
Brass,Brass,Chromated Brass,Chromated Brass
Screw Size
10-32,8-32
Size
3.62 H x 1.70 W x 1.43 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Flush Mount Locking Receptacle
Voltage
277/480 Volt
Wire Count
5
Wire Size
14-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477077184
Color
Black
Environment
Corrosive
Environmental Conditions
Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 per UL94)
GTiN
00078477077184
Product UPC
07847707718

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
CSA
C22.2 No. 42
NEMA
  • L22-30R
Features
  • Levitons Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
