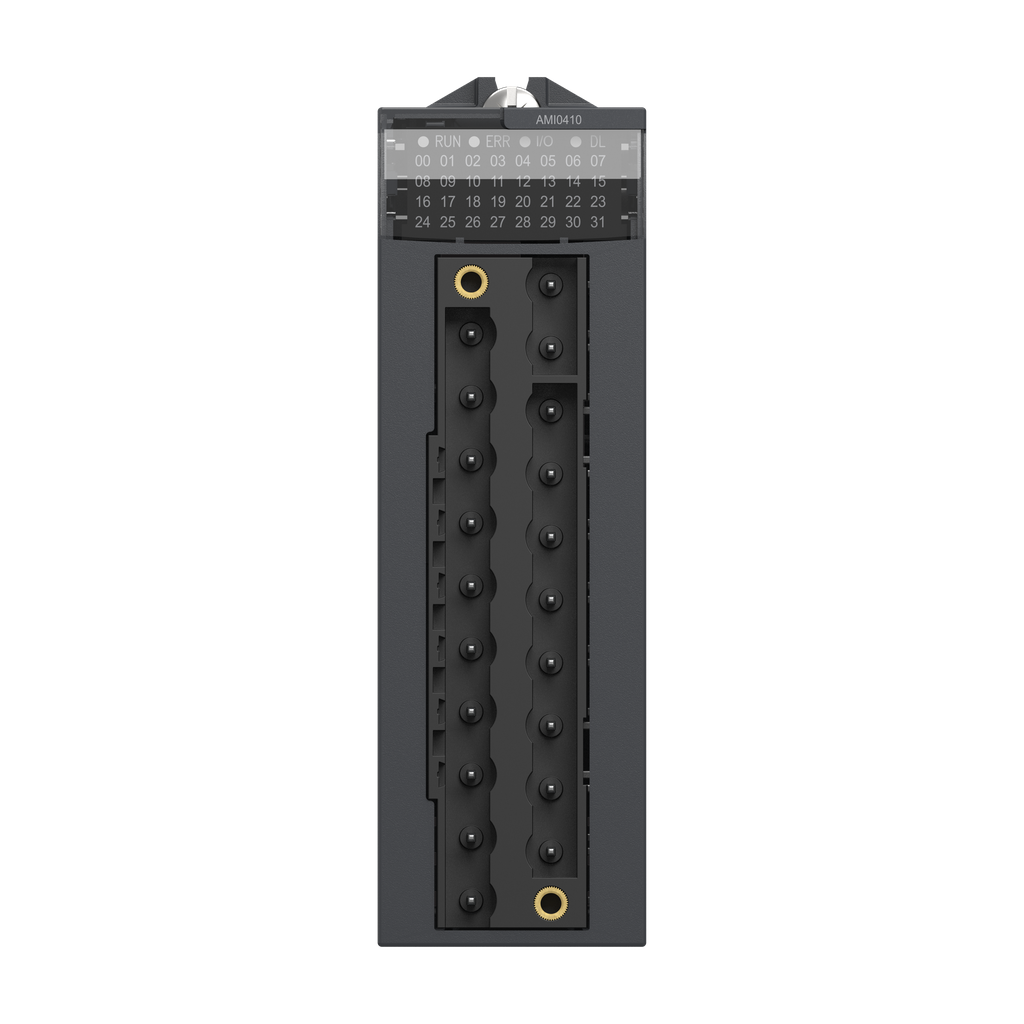

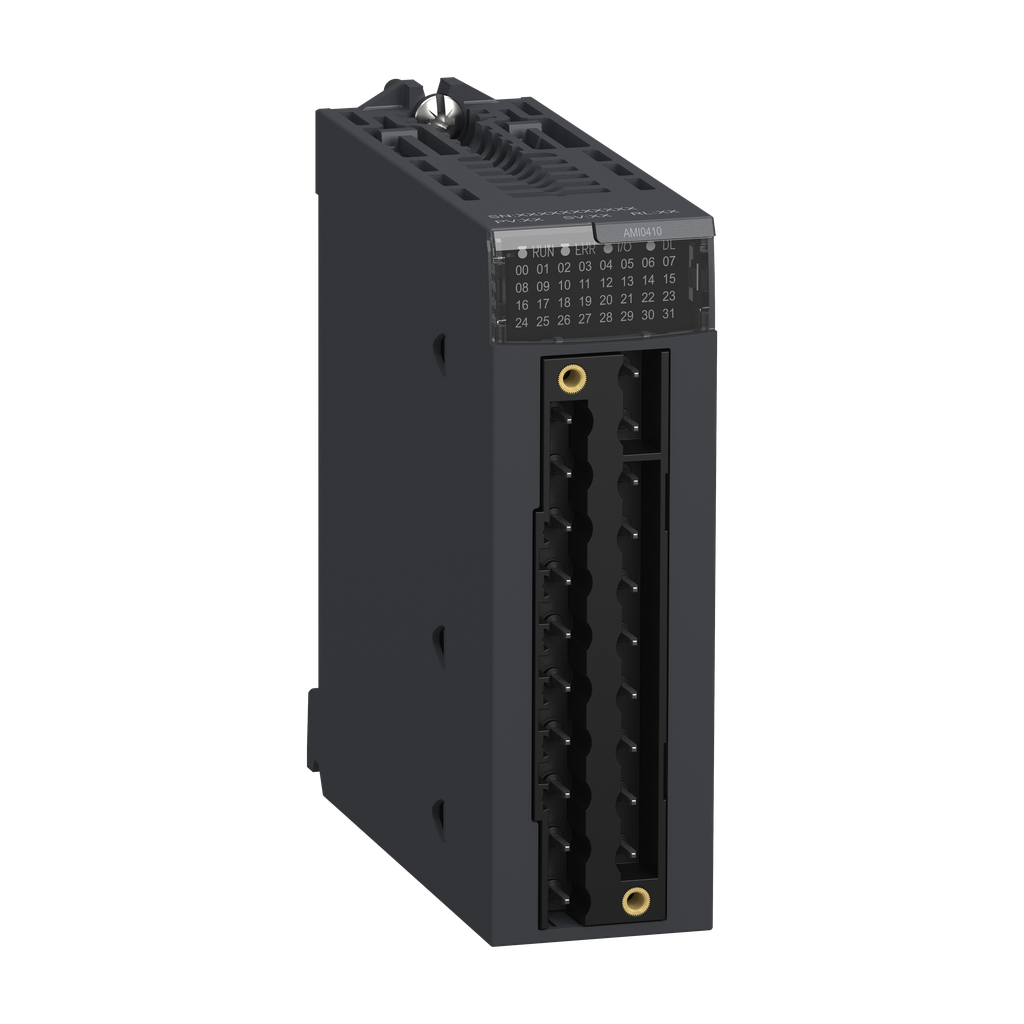

Square D BMXAMI0410 20 mA 5 Volt IP20 PLC Analog Input Module

Manufacturer: Square-D / Schneider | Catalog # BMXAMI0410 | Cooper Electric Part # 403896
$729.00/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This high level analog input module is part of the Modicon X80 modules. It has 4 isolated analog inputs (16 bits) and is used with sensors or transmitters. This module is connected via 20-way removable terminal block. It performs monitoring, measurement, and process control functions for continuous processes. The module offers different ranges of voltage or current for each of the inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.

Technical Information

Applications
MODICON X80
Current
150 mA
Enclosure
IP20
Impedance
50 ohm
Net Weight
0.143 kg
Number of Channels
4
Operating Temperature
0...60 degrees C
Power Supply
150 MA 3.3 V DC-45 MA 24 V DC
Standard
CSA C22.2 No 61010-2-201,EN/IEC 61010-2-201,EN/IEC 61131-2,UL 61010-2-201
Storage Temperature
-40-85 degrees C
Type
Analog input module

Manufacturer Information

Brand
Schneider Electric
Sub Brand
MODICON M340

General Product Info

12-Digit UPC
595863910172
GTiN
03595863910179
Product UPC
78590179609
Weight
0.143 kg

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,EAC,Merchant Navy,RCM,UL
Country of Origin
France
Compatible Products
  • BMXFTB2000
  • BMXFTB2010
  • BMXFTB2020
  • BMXFTW301S
  • BMXFTW501S
  • ABE7CPA410
  • BMXFCA150
  • BMXFCA300
  • BMXFCA500
Cross Sell Products
  • BMEH582040
  • BMEH584040
  • BMEH586040
  • BMEP581020
  • BMEP582020
  • BMEP582040
  • BMEP583020
  • BMEP583040
  • BMEP584020
  • BMEP584040
  • BMEP585040
  • BMEP586040
  • BMXP341000
  • BMXP342000
  • BMXP3420102
  • BMXP342020
  • BMXP3420302
