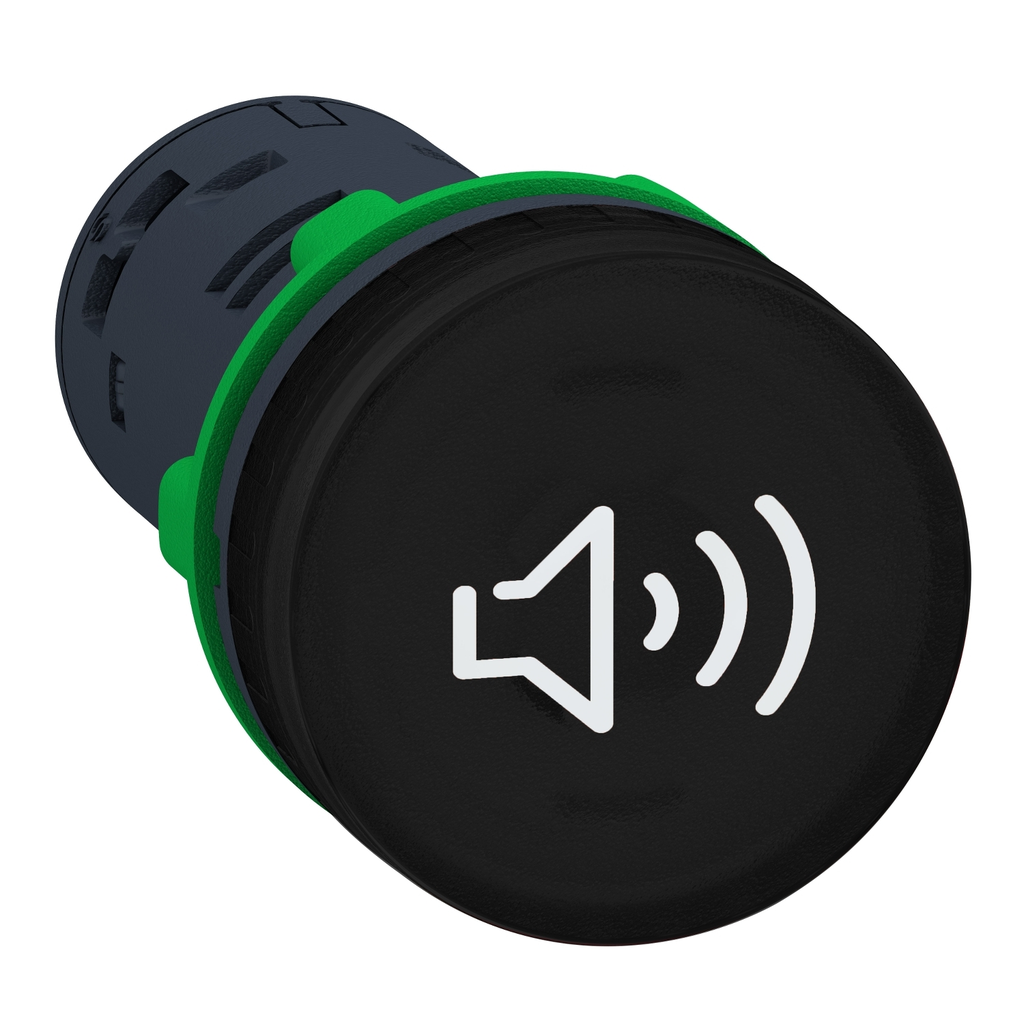

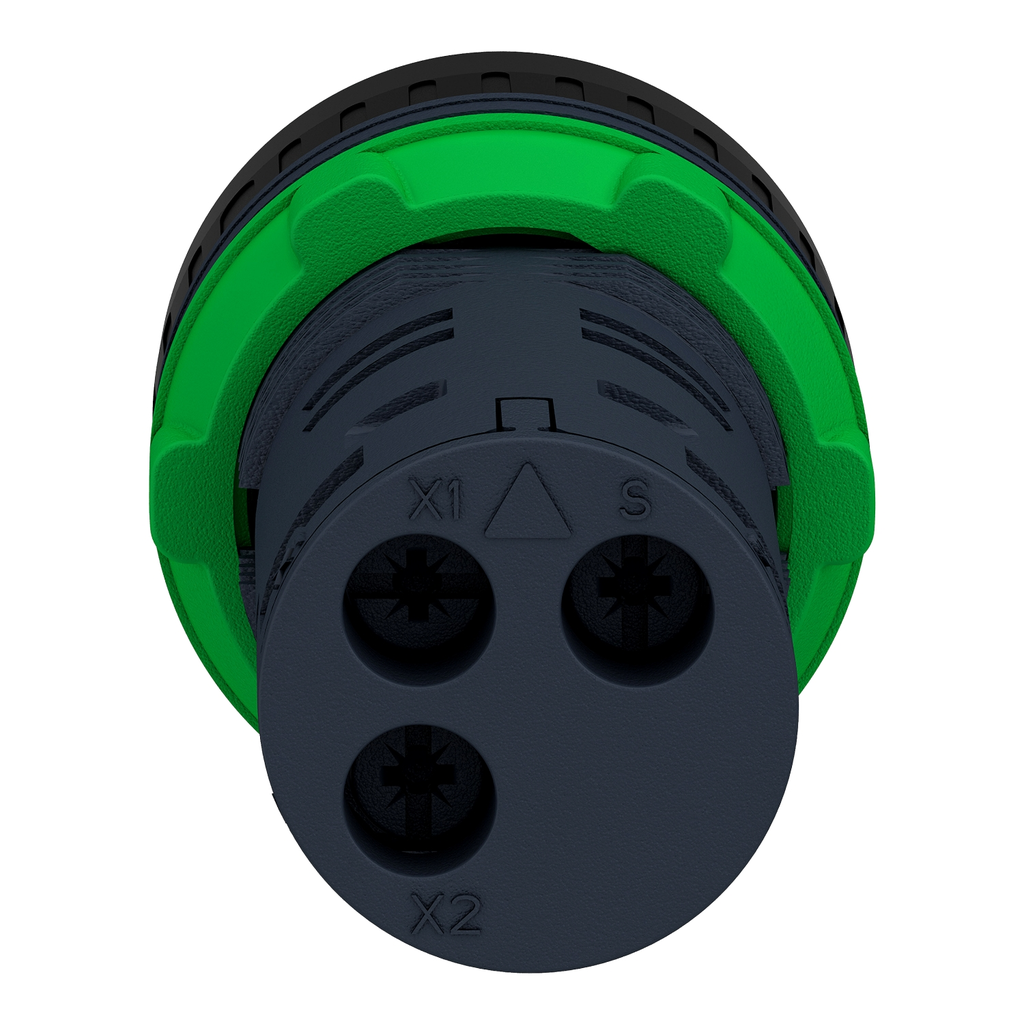

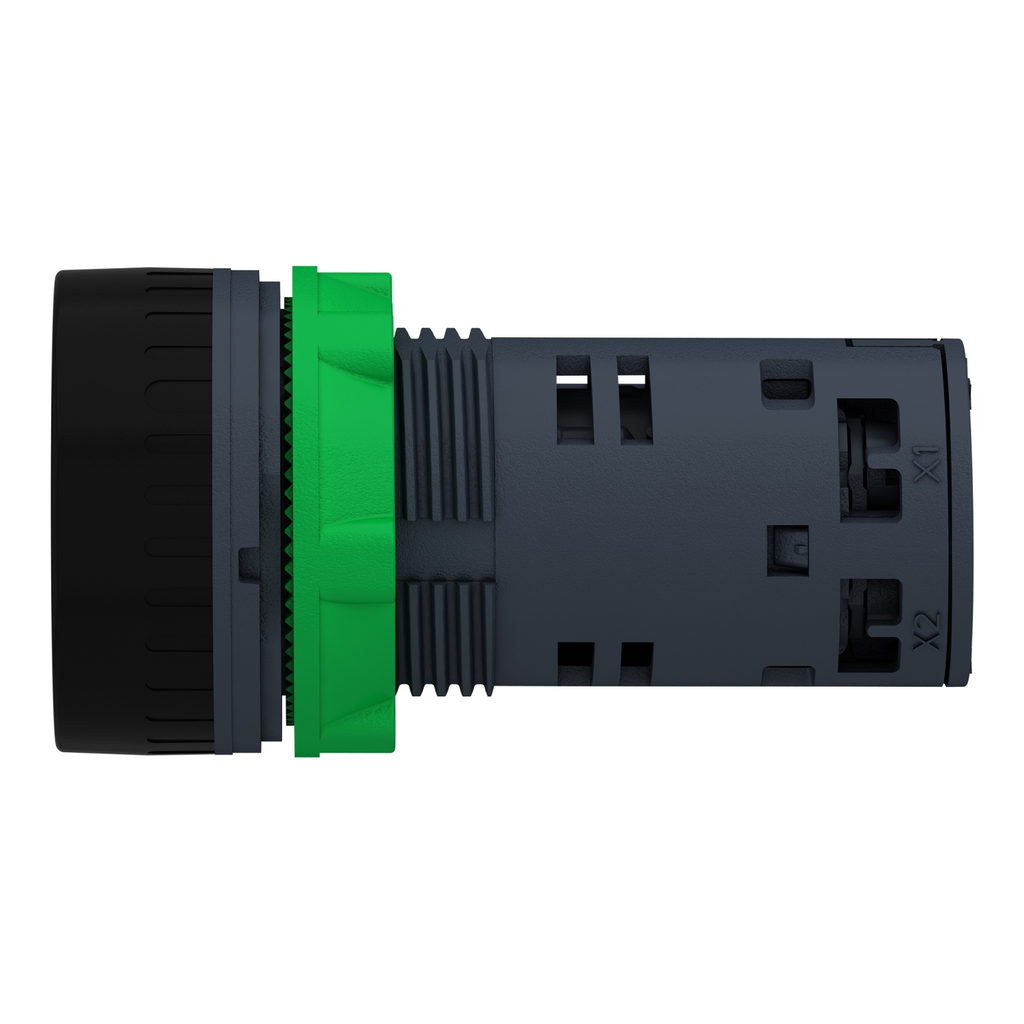

Square D XB5KSB 24 VAC/VDC 85 dB Push Button Hour Buzzer

Manufacturer: Square-D / Schneider | Catalog # XB5KSB | Cooper Electric Part # 403746
$134.51 /ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean opens friday 7:00am et
6 available

For Delivery

Order by 5:00pm ET for delivery Monday
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Product Catalog Page CAD Drawing #1 Product Spec Sheet CAD Drawing #2 CAD Drawing #3 Product Brochure
This Harmony XB5, annunciator siren is supplied with 24V AC/DC with noise level 85dB. This annuciator siren provides a signaletic sound alarm for your installation. It is easily installed into standard 22mm diameter cut-outs. It has an IP40 protection. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Technical Information

Bezel Material
Plastic
Current
28 mA
Enclosure
NEMA 1/2/3/4/4X/12/13 IP65
Head Type
Standard
Indicator
BLACK
Net Weight
0.024 kg
Operating Temperature
-40-70 Adegrees C
Size
2.17 in
Standard
CSA C22.2 No 14,IEC 50102,IEC 60529,IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 62262,JIS C8201-1,JIS C8201-5-1,UL 508
Storage Temperature
-40-70 degrees C
Type
Annunciator
Voltage
24 VAC//VDC

Manufacturer Information

Brand
Schneider Electric
Sub Brand
HARMONY

General Product Info

12-Digit UPC
338911010260
Color
Black
GTiN
03389110102666
Product UPC
78590139619
Weight
0.024 kg

Dimensions

Depth
55 mm
Height
1.14 in
Warranty Length
18 mth
Width
1.14 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
BV,CSA,UL Listed
Country of Origin
China
Features
  • Quick and easy assembly and disassembly
  • Robustness to withstand harsh environments
  • With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
  • A wide choice of contact blocks for general purposes or specific applications (low current, standard)
  • Excellent mechanical connection with operator head
  • A large set of accessories to customize your panels
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
