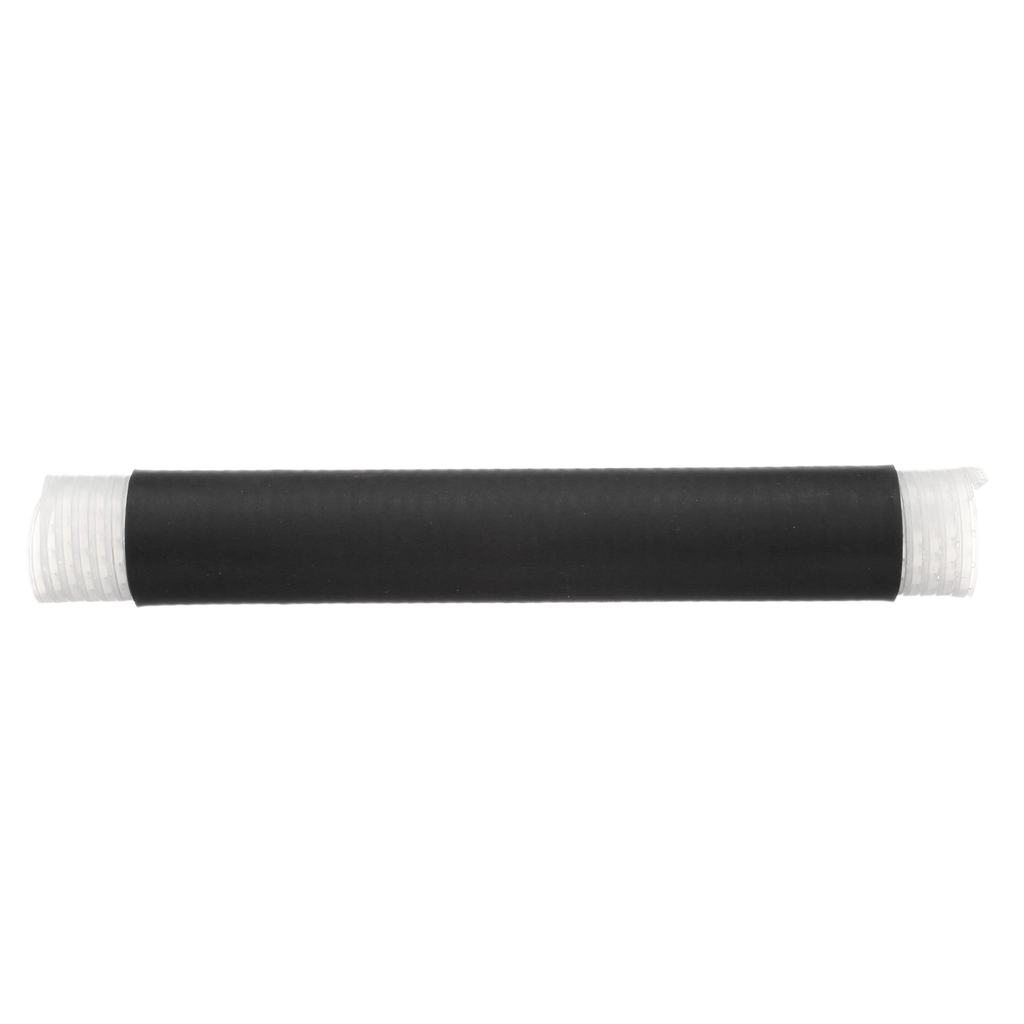

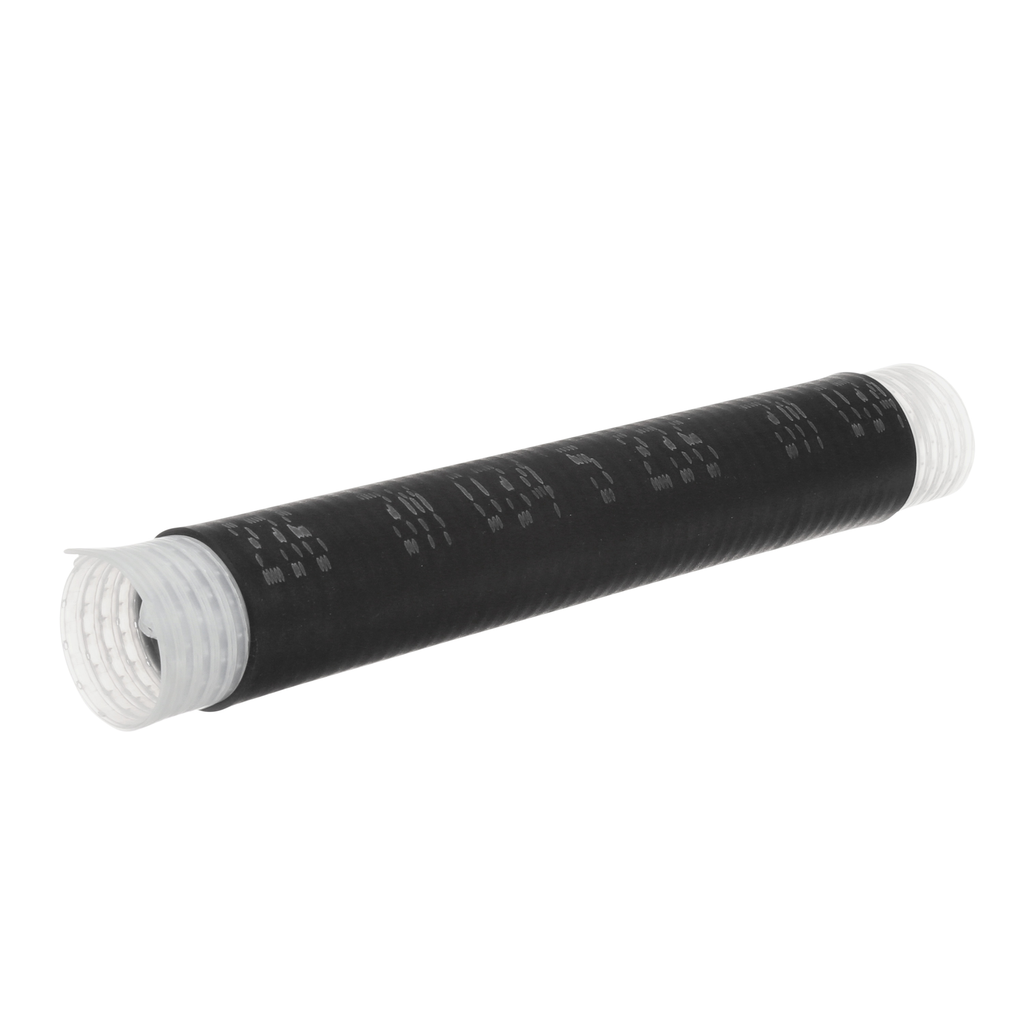

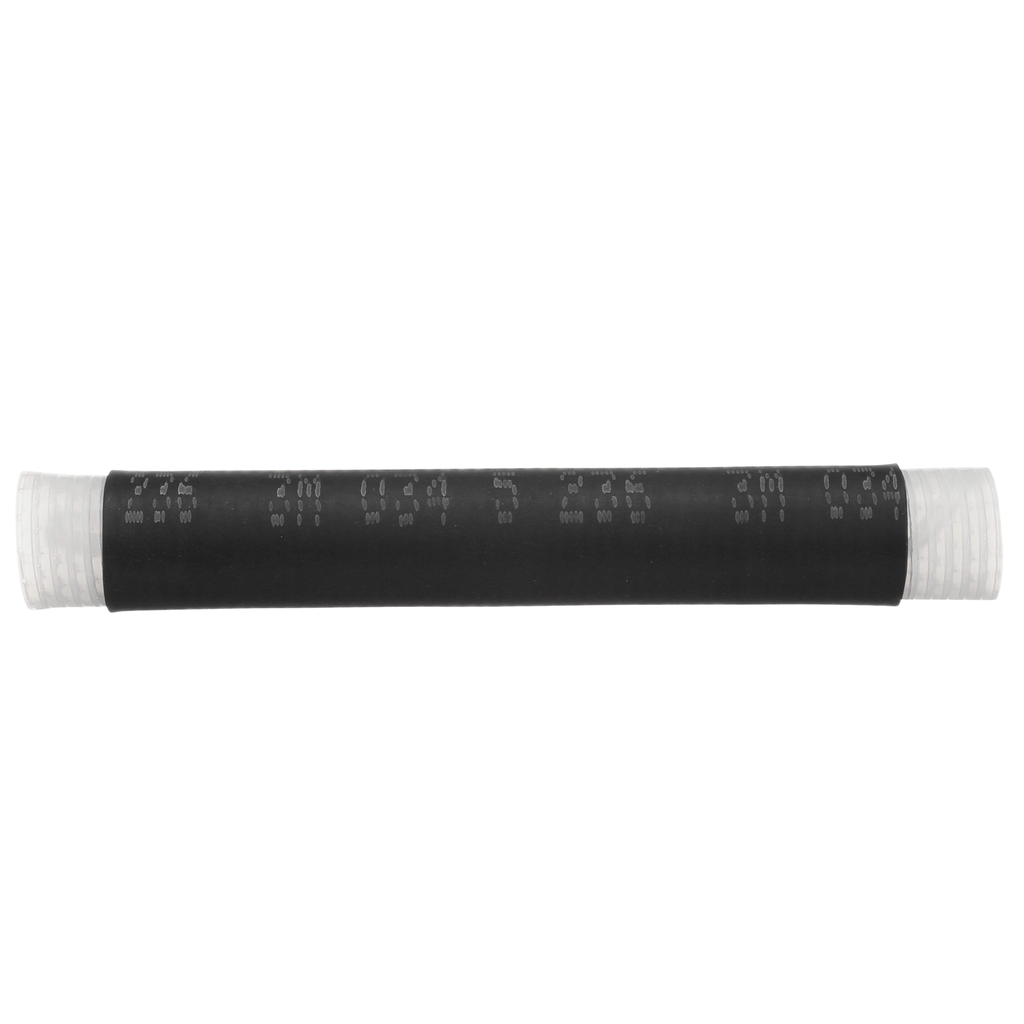

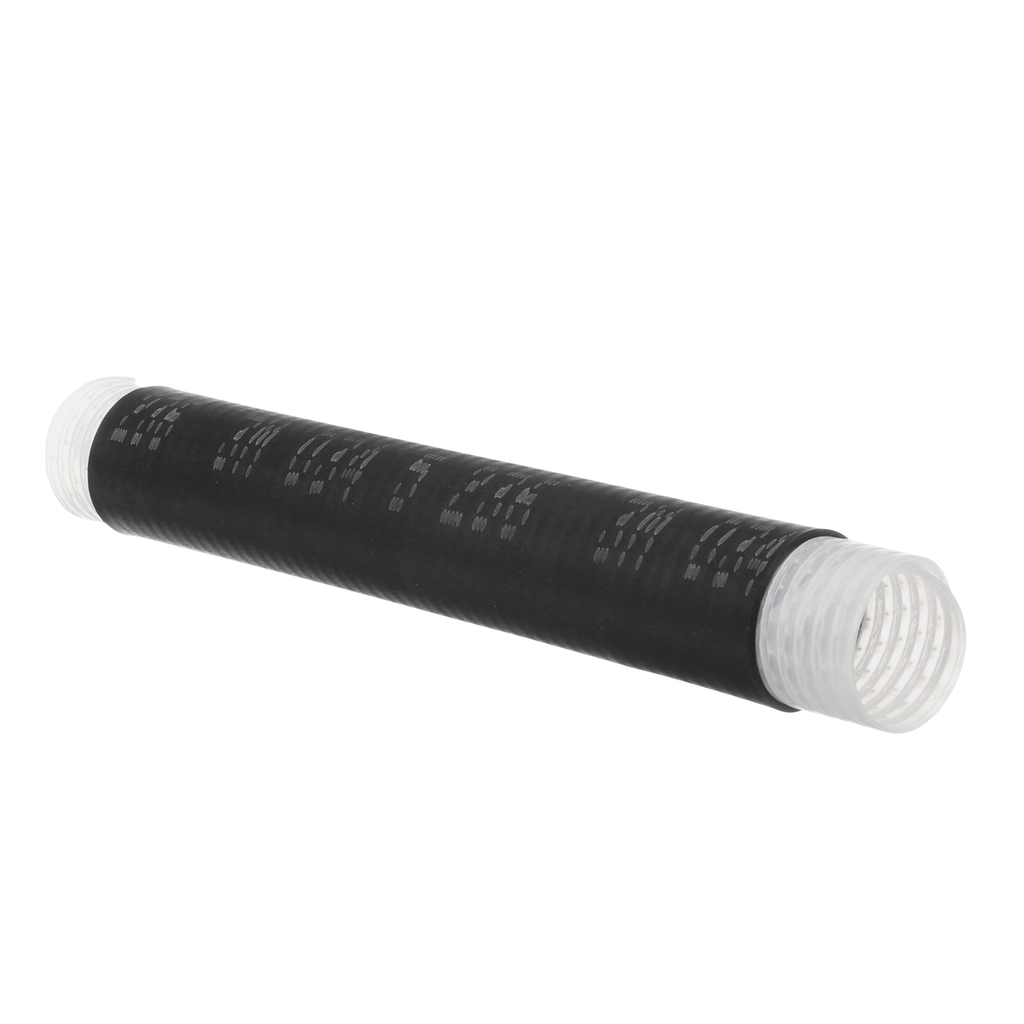

3M 8426-9M Cold Shrink Insulator

Manufacturer: 3M | Catalog # 7000132877 | Cooper Electric Part # 402662
$67.95/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Safety Data Sheet
This splice meets requirements of ANSI C119-1 and Western Underground Guide 2.14 for secondary splices rated up to 1 kV.

Technical Information

Applications
Insulation,Mechanical Protection,Repair
Cable Type
Power Cable
Conductor Material
Aluminum,Copper
Conductor Size
2 AWG
Indoor Outdoor
Indoor,Outdoor
Material
Rubber
Max Operating Temperature
194.0 degrees F
Min Operating Temperature
-40.0 degrees C
Number of Conductors
1
Size
1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 3/0 AWG; 4/0 AWG
Splice Type
Cold Shrink
Type
Cold Shrink Splice
Voltage
1 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007434368
Color
Black
GTiN
00054007434368
Product Type
Splice
Product UPC
05400743436

Certifications and Compliance

Country of Origin
USA
Features
  • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
  • Simple installation which requires no tools
  • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
  • Made of EPDM rubber which contains no chlorides or sulfur
  • Covers a wide range of cable cross sections
  • Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
