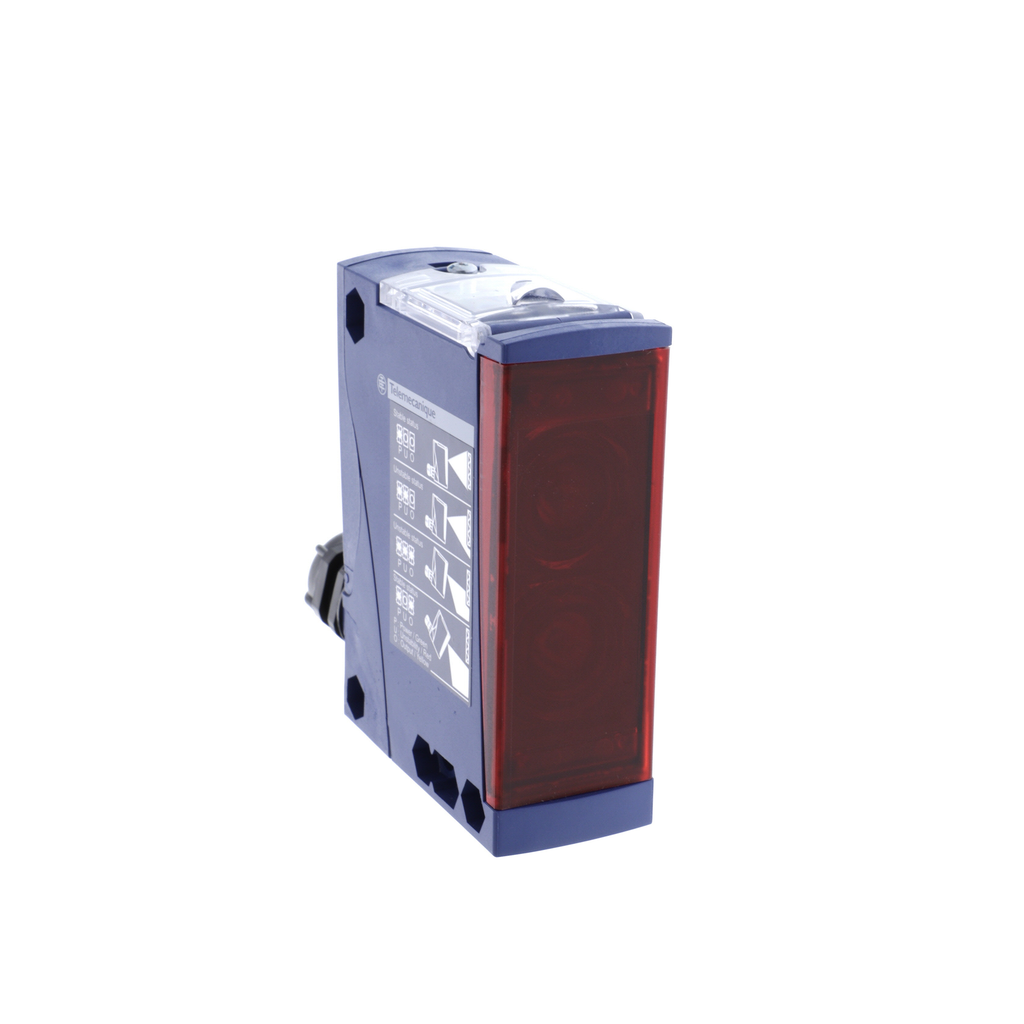

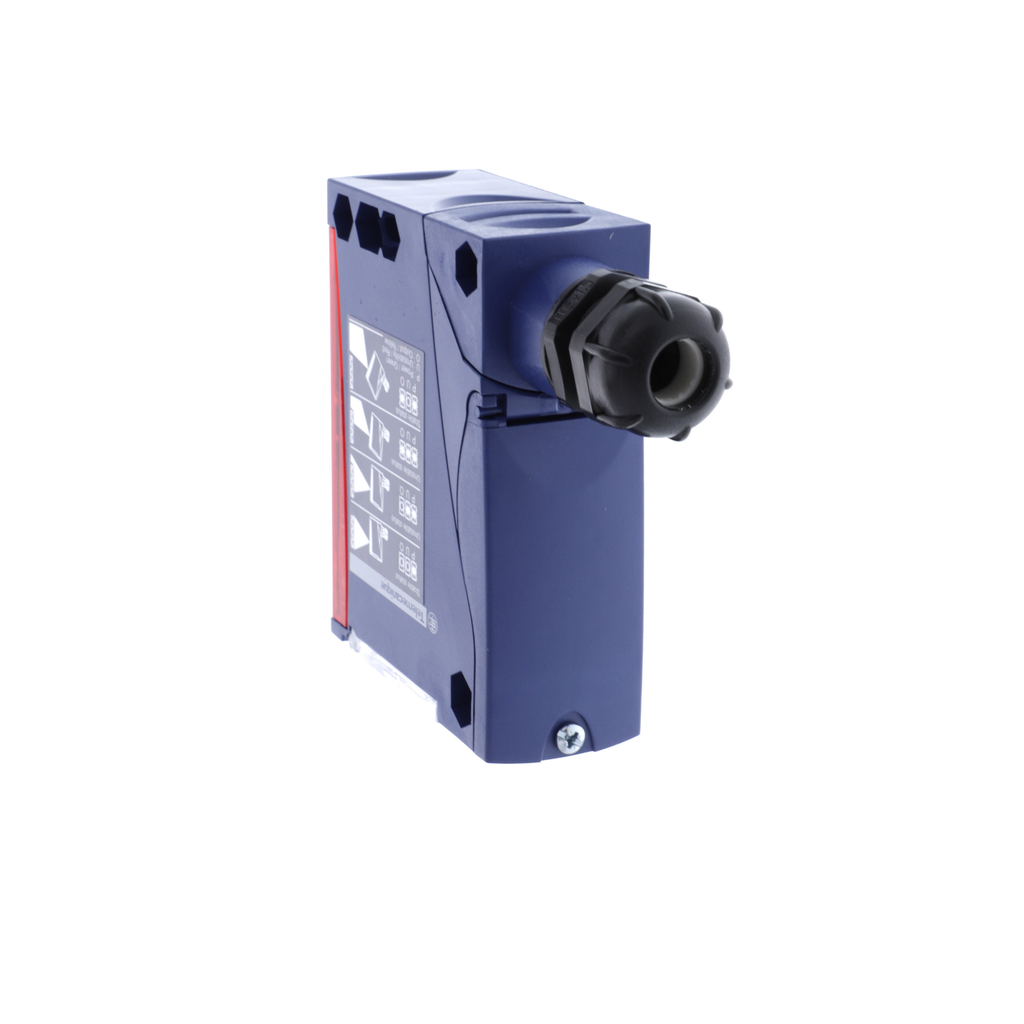

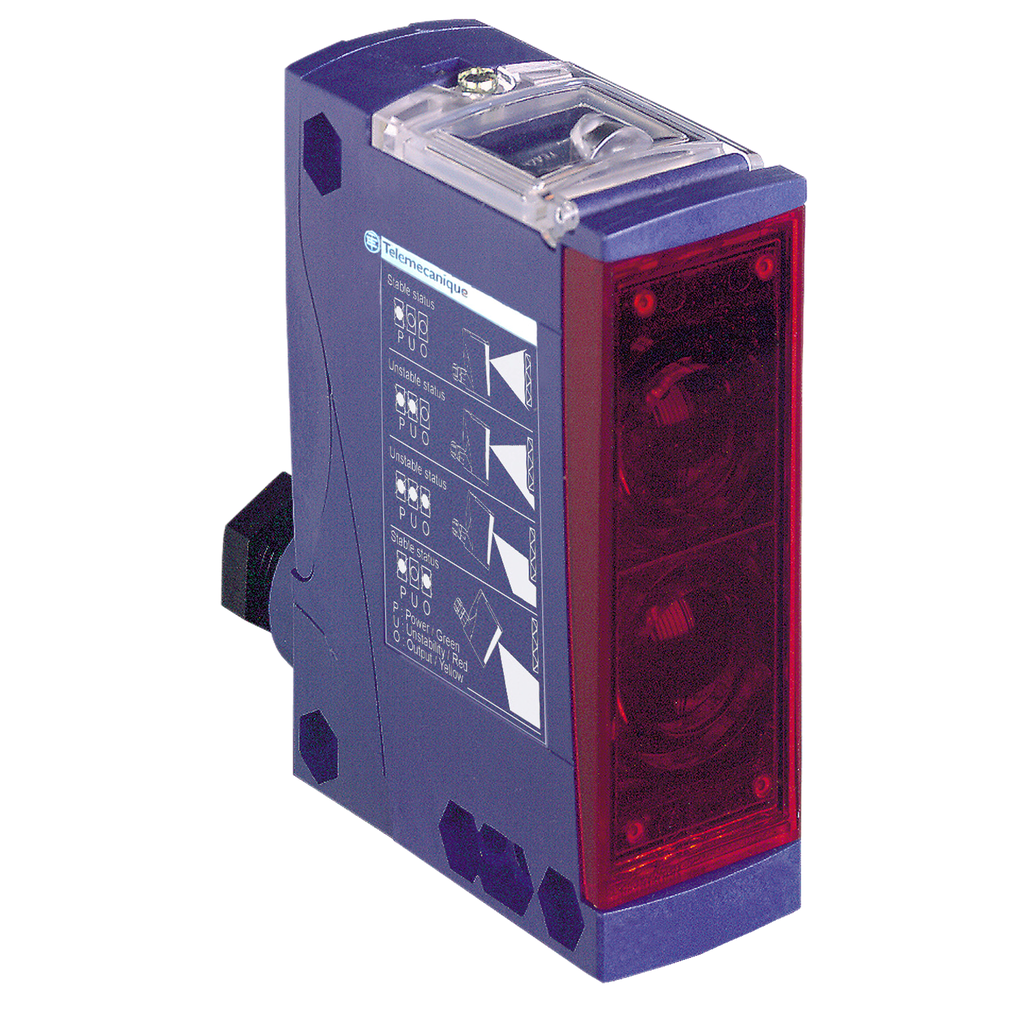

TES XUX9ARCNT16 Photoelectric sensors XU, XUX, polarised, Sn 11 m, 24...240VAC/DC, terminals

Manufacturer: TES Electric | Catalog # XUX9ARCNT16 | Cooper Electric Part # 401807
$152.32/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This compact design single mode (polarised reflex system) photo-electric sensor has a PBT case. It has a supply voltage of 24V to 240V AC/DC. This mono-mode rectangular photoelectric sensor has a painted aluminium and polyamide construction, is mountable directly on a surface or bracket, thanks to its 4 fixing points. It has VALOX® PBT high strength case ideal for high temperature environments and PMMA scratch-resistant lens for maximum sensor durability. 3 LED display allows to identify status of the sensor and beam instability, to facilitate troubleshooting. IP65 and IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-25.C) and hot environments (+55.C). It provides double insulation for better people and system protection from electrical shocks. It is CSA and UL certified.

Technical Information

Amperage
3 Amp COS ????  = 1 FOR 0.5 MILLION CYCLES AT 1 OPERATING CYCLE PER SECOND AT 250 V)-0.5 Amp COS ????  = 0.4 FOR 0.5 MILLION CYCLES AT 1 OPERATING CYCLE PER SECOND AT 250 V)
Applications
-
Cable Entry
1 entry for M16 x 1.5 cable gland 0.280.39 in (710 mm)
Current
35 mA
Enclosure
IP65 DOUBLE INSULATION CONFORMING TO IEC 60529-IP67 DOUBLE INSULATION CONFORMING TO IEC 60529,PBT
Enclosure Material
PBT
Material
Plastic
Net Weight
0.2 kg
Operating Cycles
<= 20 Hz
Operating Temperature
-25-55 degrees C
Output
1 C/O;Relay;Discrete
Sensing Range
11-11 M POLARISED REFLEX NEED REFLECTOR XUZC50,> 16.4...49.21 FT (> 5...15 M)
Size
3.03 in
Storage Temperature
-40-70 degrees C
TC Connection
SCREW-CLAMP TERMINALS, 1 X 1.5 MMA OR 1 X 0.75 MMA WITH ADAPTOR
Type
Polarised reflex;Photo-electric sensor;Compact 92 x 71;General purpose single mode
Voltage
24...240 Volt AC/DC
Wattage
2 Watt AC/DC

Manufacturer Information

Brand
Telemecanique
Sub Brand
OSISENSE

General Product Info

12-Digit UPC
389110171535
Environmental Conditions
WATER TIGHT, DUST TIGHT, OIL TIGHT AND CORROSION RESISTANT (INDOOR)
GTiN
03389110171532
Product UPC
78590158232
Weight
0.44 lb

Dimensions

Depth
77 mm
Height
92 mm
Warranty Length
18 mth
Width
31 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA,UL
Country of Origin
Indonesia
