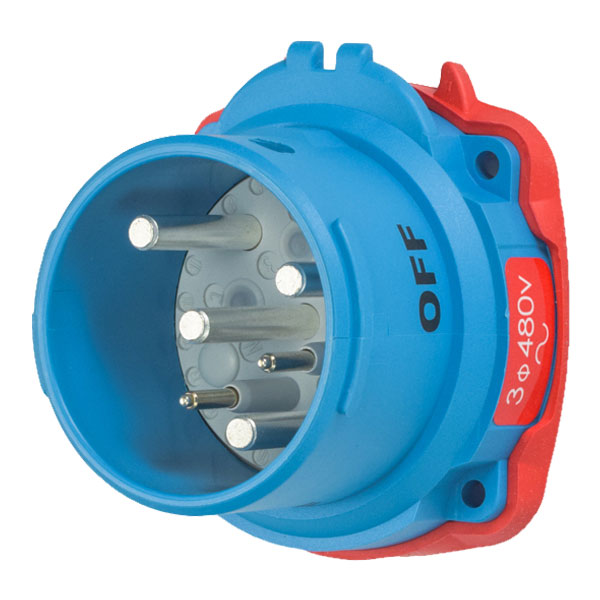

Product image for Meltric 63-68043-972 DSN60 Inlet, Poly, Blue, Size 3, Type 4X & IP69, 3P+G, 60A, 480 VAC, 60 Hz
Email

Meltric 63-68043-972 DSN60 Inlet, Poly, Blue, Size 3, Type 4X & IP69, 3P+G, 60A, 480 VAC, 60 Hz

Manufacturer: Meltric | Catalog # 63-68043-972 | Cooper Electric Part # 401020
$369.08/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Inlet, Enclosure NEMA 4X, IP66/IP67, Wiring Capacity 12 To 4 AWG, Horsepower Rating 20 HP At 480 V 3 Phase, Polarity 3 Pole, Ground, (2) Auxiliary/Pilot Contact, Short Circuit Rating 100 KAMP, Standard: UL, CSA, NOM, IEC, CE, NFPA 70E, Size: 3.07 DIA X 2.

Technical Information

Amperage
60 Amp
Contact Configuration
3P+G
Current
60 Amp
Frequency
60 Hz
Horsepower
20 hp
IP Rating
66,67,69
Material
Poly
Max Operating Temperature
140 degrees F
Secondary Voltage
600 V
Short Circuit Current Ratng
125 A
Size
3
Strip Length
5/8 in
Temperature Rating
-40 to 140 DEG F
Type
Inlet
Voltage
480 Volt

Manufacturer Information

Brand
Meltric
Sub Brand
Decontactor

General Product Info

12-Digit UPC
784474547222
Color
Blue
GTiN
00784474547222
Product Series
12
Product UPC
78447454722

Certifications and Compliance

CSA
155873,C22.2 No. 182.1-13,CCSAus
