Panduit LCA400-12-6 1-Hole 400 MCM Copper Compression Lug

Manufacturer: Panduit Corp | Catalog # LCA400-12-6 | Cooper Electric Part # 400990
$2,091.67/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual Engineering Drawing

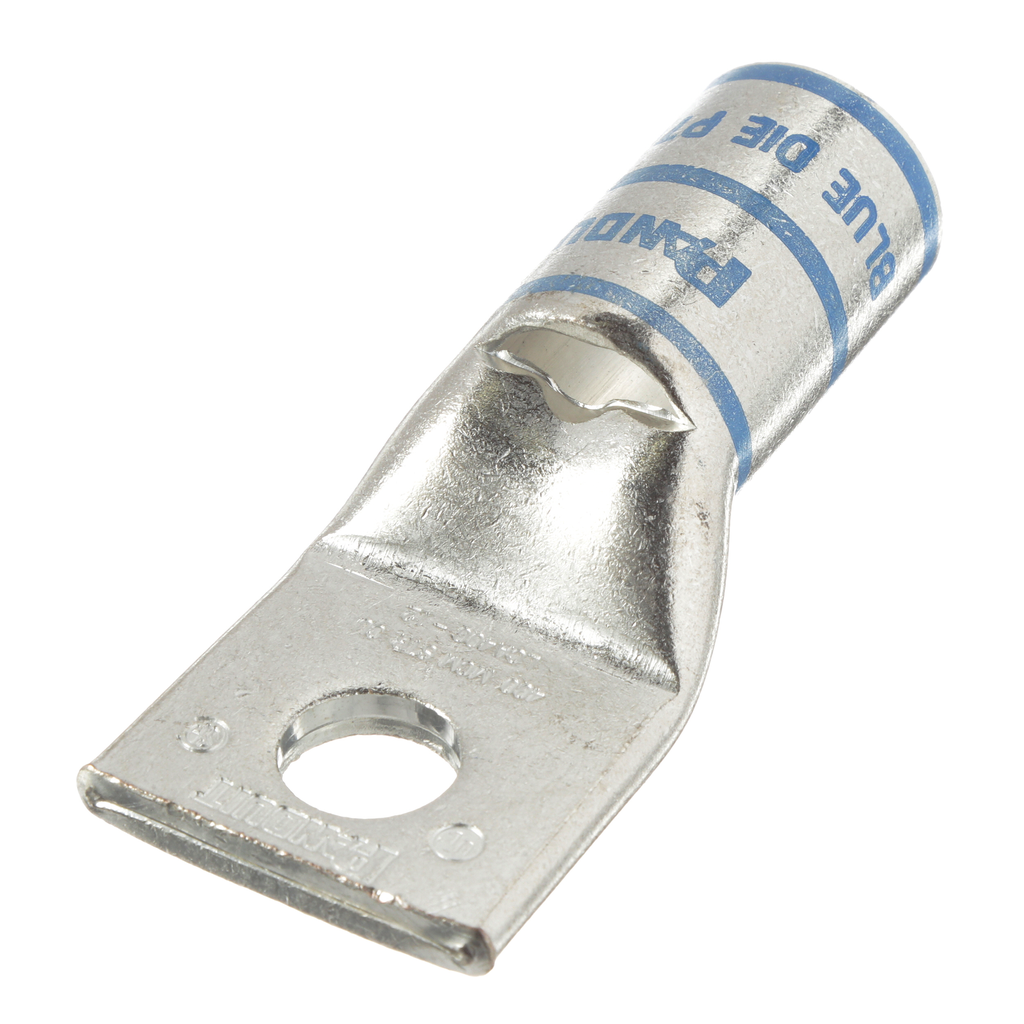

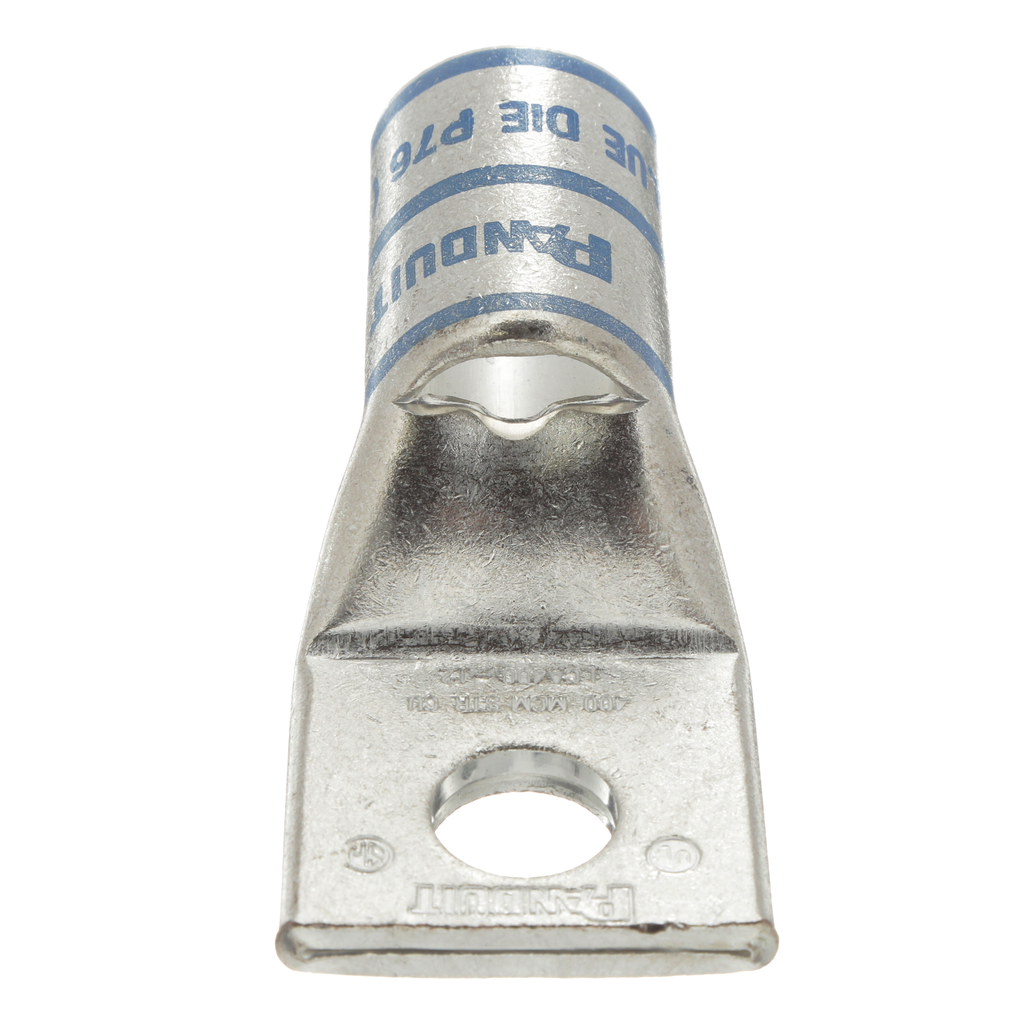

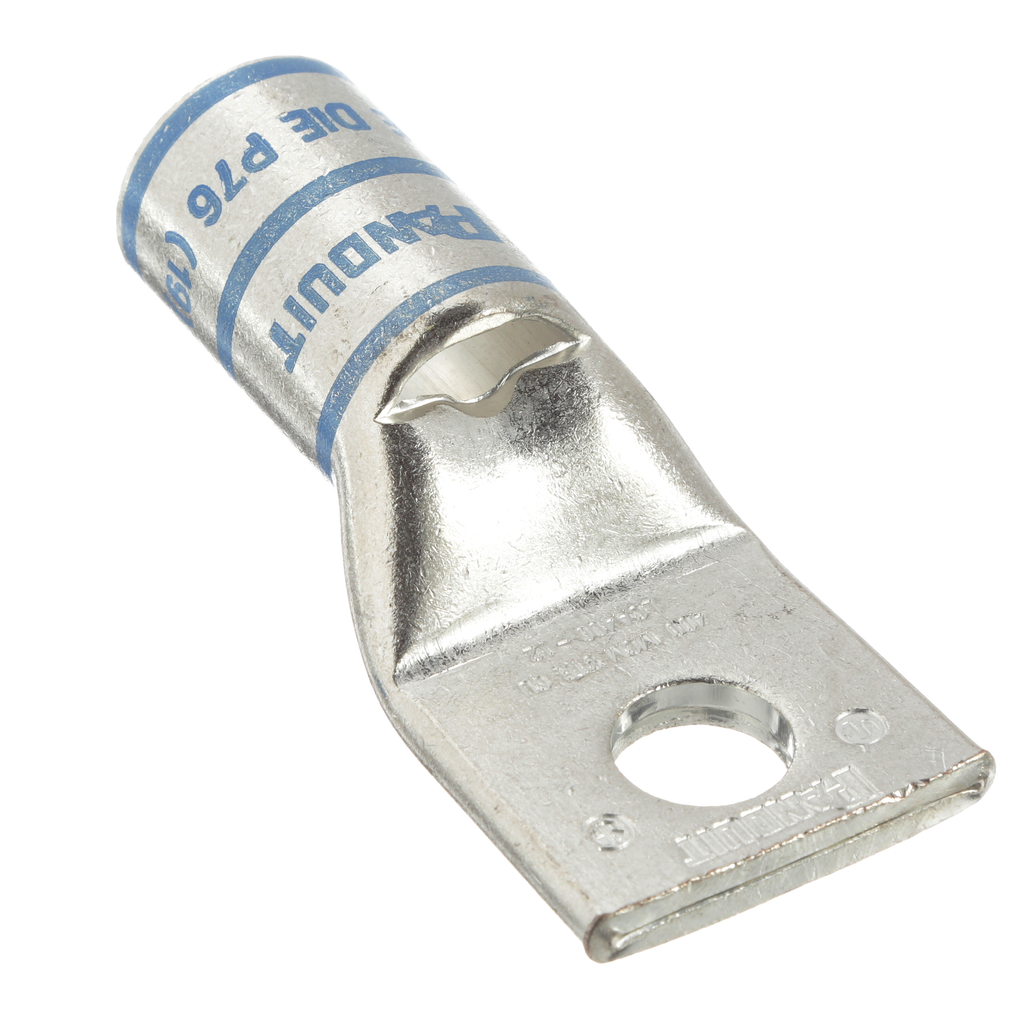

The LCA400-12-6 Tin-Plated Copper Compression Lug, one-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conductor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90.C.

Technical Information

Angle
Straight
Barrel Length
1.5 in
Barrel Type
Standard
Cable Size
AWG
Color Coding
Blue
Material
Copper
Number of Holes
1 Hole
Size
400 kcmil Code
Standard
ANSI C-73
Stud Size
1/2 in
Tongue Thickness
0.18 in
Tongue Type
Standard
Tongue Width
1.39 in
Type
Preterminated Copper Trunk, Category 6
Voltage
35,000 Volt

Packaging

Pkg Qty
6

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983900596
Color
Olive, Orange, Royal Blue and Yellow
GTiN
00074983900596
Product UPC
07498390059

Dimensions

Outer Diameter
0.95 in
Overall Length
3.22 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL Listed to 486A-486B File #E52164, NEBS Level 3, ABS
Prop 65
  • No
