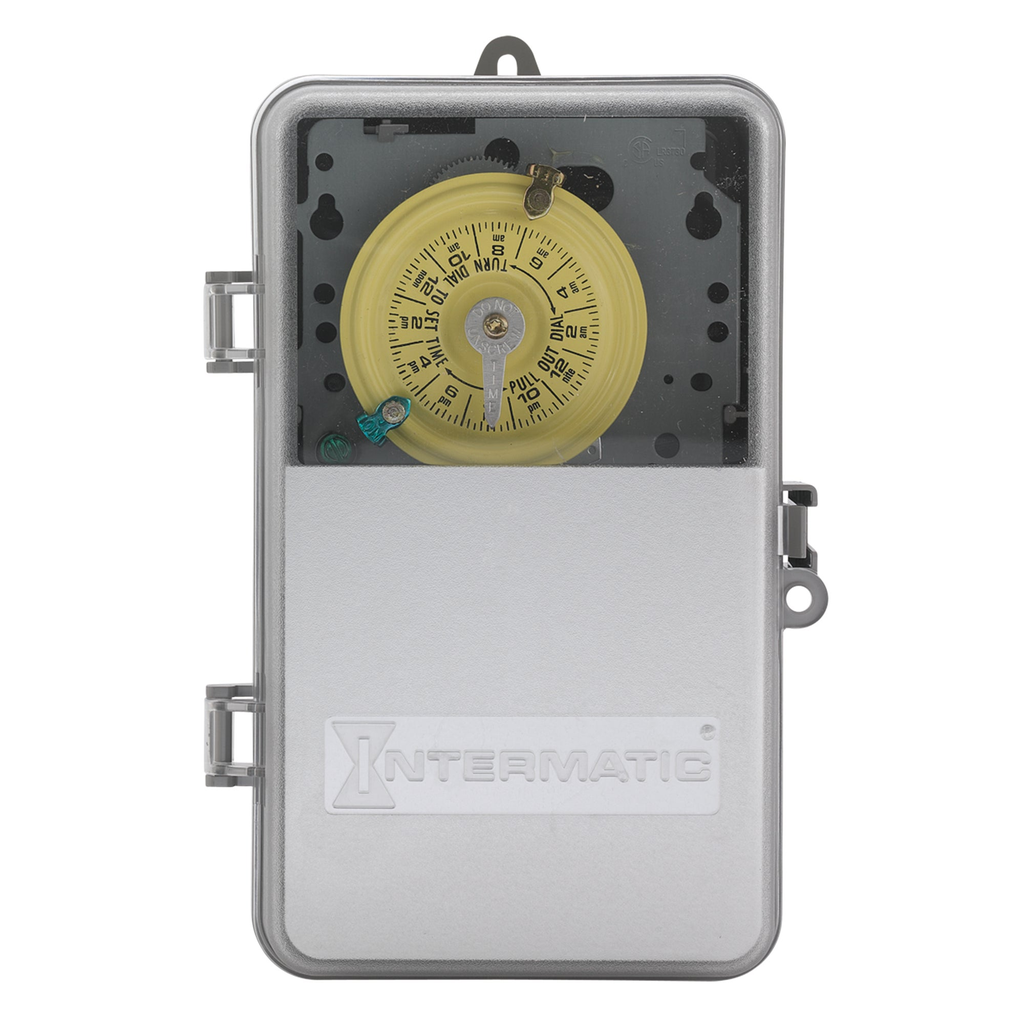

Product image for Intermatic T104PCD82 NEMA 3R Plastic Case See-Through Cover 208 to 277 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch
Image thumbnail 0
Image thumbnail 1
Email

Intermatic T104PCD82 NEMA 3R Plastic Case See-Through Cover 208 to 277 VAC 60 Hz 40 Amp DPST Electromechanical Time Switch

Manufacturer: Intermatic, Inc | Catalog # T104PCD82 | Cooper Electric Part # 400271
$218.39/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

Technical Information

Action
DPST
Amperage
40 Amp
Applications
Commercial, Industrial, Residential, Outdoor, HVACR
Connection Type
Teeter Type
Contact Configuration
DPST - 2 NO
Contact Rating
40 A at 120 - 277 VAC (Tungsten), 40 A at 120 - 480 VAC (Resistive)
Enclosure
NEMA 3R Plastic
Frequency
60 Hz
Input Voltage
208-277 V
Material
Plastic
Max Operating Temperature
130 degrees F
Max Wire Size
8 AWG
Min Operating Temperature
-40 degrees C
Min Wire Size
14 AWG
Mounting Type
Wall Mount
Number of Circuits
1
Number of Poles
2 Pole
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Power Source
2 hp at 120 VAC, 5 hp at 240 VAC
Size
5-1/2 LENGTH X 3-3/8 WIDTH X 9-3/8 IN, 13.97 LENGTH X 9.21 WIDTH X 23.81 HEIGHT CM
Switch Type
DPST
TC Connection
Teeter Type
Temperature Rating
-40 to 130 degrees F
Type
Electromechanical
Voltage
208-277 VAC
Wattage
3 Watt

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275047877
Color
Gray
GTiN
00078275047877
Product UPC
07827504787

Dimensions

Depth
4 Inch
Height
10 Inch
Warranty Length
1 yr
Width
6.5 in

Certifications and Compliance

CA Prop65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Country of Origin
Mexico
Features
  • Direct 24-hour control of most loads
  • Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper included
  • NA
