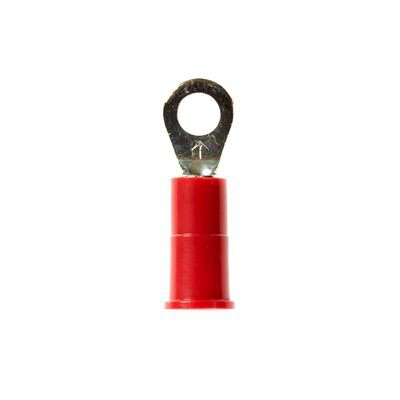

3M RV18-8Q 25/Bag Ring Vinyl Insulated Highland Bag

Features

• Red vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
• Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
• 3M™ Highland™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
• A ring is the standard style of tongue. The safest and most reliable; it cannot be removed unless mounting screw is removed.
• Standard-style ring tongue fits around the stud
• Stud size #8
• Accommodates wire sizes 22 to 18 AWG
• Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
• 25/bag

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80611603079
• Agency Approvals: UL and CSA
• Barrel Length (Imperial): 0.25 Inch
• Barrel Length (Metric): 6.35 mm
• Barrel Style: Butted
• Brand: Scotchlok™
• Clearance (C): 0.33 Inch
• Conductor Size: 22 - 18 AWG
• Dimension E: 0.78 Inch
• Insulation Material: Vinyl
• Manufacturing Origin: USA
• Material: Plastic
• Maximum Insulation Outside Diameter: 0.145 in
• Maximum Operating Temperature (Celsius): 105 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
• Maximum Recommended Voltage Rating: 600 V
• Minimum Stud Diameter (Imperial): 0.164 in
• Minimum Stud Diameter (Metric): 4 mm
• Minimum Wire Gauge: 22 AWG
• Overall Length (Imperial): 0.93 in
• Overall Length (Metric): 23.622 mm
• Overall Width (Imperial): 0.31 in
• Overall Width (Metric): 7.874 mm
• Ring Type: Standard
• Stud Size: #8
• Terminal Style: Standard
• Terminal Type: Ring
