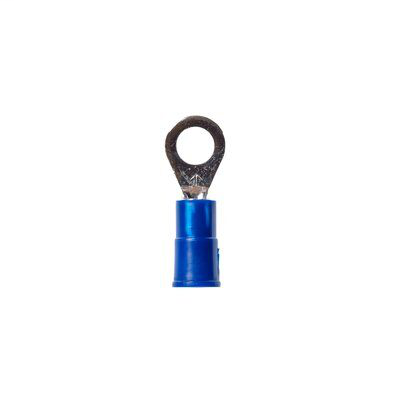

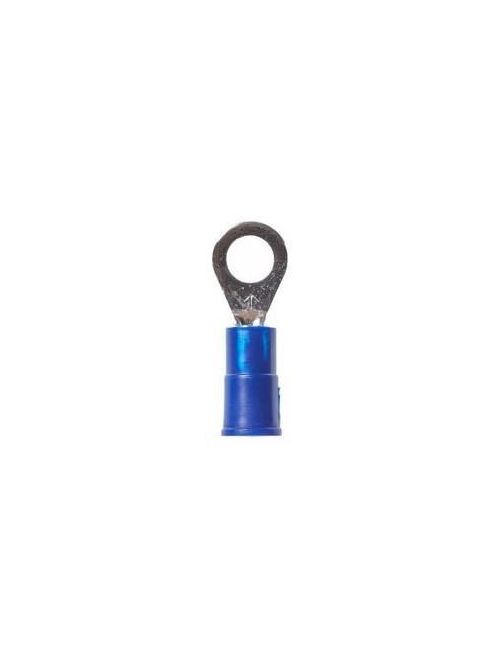

3M RV14-10Q 25/Bag Ring Vinyl Insulated Highland Bag
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$5.84/ea
In Stock | 95 available at 7 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # RV14-10Q
Cooper Electric Part # 765634

Features

  • Blue vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/bag

Specifications

  • Barrel Inside Diameter: 0.09 Inch
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Length (Metric): 6.35 mm
  • Barrel Style: Butted
  • Conductor Size: 16 - 14 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.74 Inch
  • Dimension E (Metric): 18.8
  • Insulation Material: Vinyl
  • Material: Plastic
  • Maximum Conductor Size: 14 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.17 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Conductor Size: 16 AWG
  • Minimum Stud Diameter (Imperial): 0.19 in
  • Minimum Stud Diameter (Metric): 5 mm
  • Minimum Wire Gauge: 16 AWG
  • Overall Length (Imperial): 0.9 in
  • Overall Length (Metric): 22.86 mm
  • Overall Width (Imperial): 0.33 in
  • Overall Width (Metric): 8.382 mm
  • Product Key: HIGH HIGHLAND BAGGED TERMINALS FKD
  • Ring Type: en-US: Standard
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #10
  • Stud Size (Metric): 4826
  • Stud Sizes: #10
  • Terminal Style: Standard
  • Terminal Type: Ring
  • UL File Number: E23438

Overview

UPC 05112860038
Product Description 3M Highland Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128600382
Length 0.9 in
Width 0.33 in
Color Blue
Type Ring
Thickness 0.03 in
Barrel Type Butted
Material Plastic
Stud Size #10
Terminal Style Standard
Terminal Type Ring
Conductor Size 16-14 AWG
Wire Size 16-14 AWG
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 10
TC Connection Ring
Barrel Length 0.25 in
Sub Brand Highland
Max Operating Temperature 221 degrees F
Overall Length 0.9 in
