3M QS4-15TS-2-4/0 SPLC KT

Overview

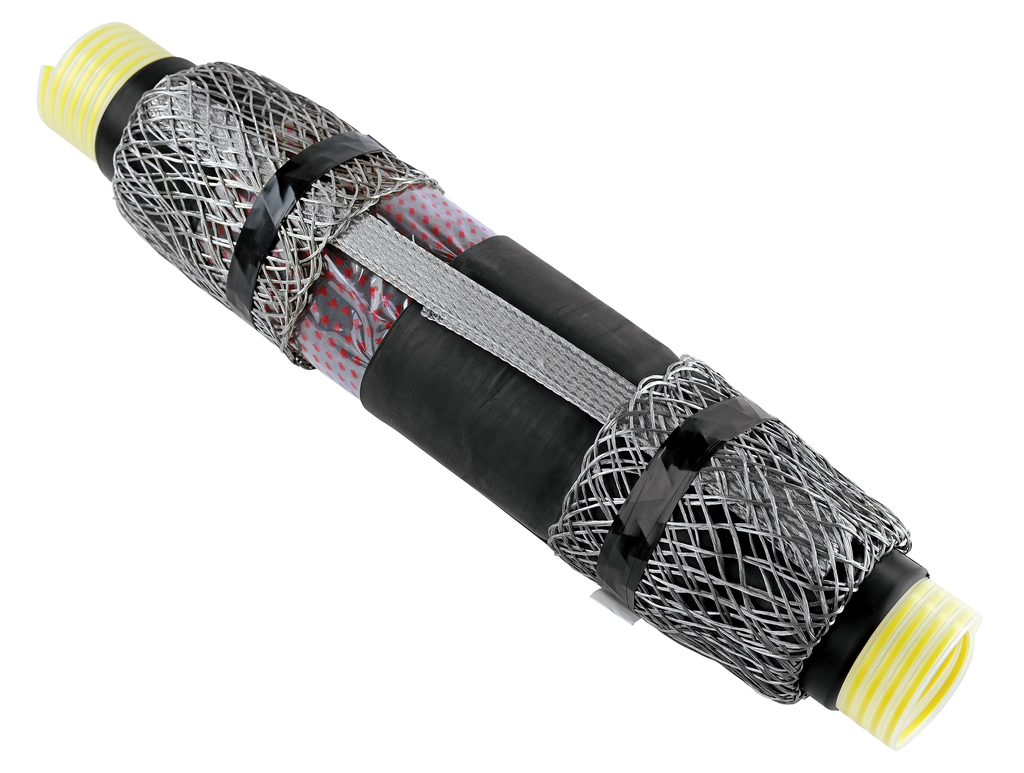

3M™ QS4-15TS Series Cold Shrink Integrated Splice Kit is a 15 kV-class inline splice designed to join tape shield, wire shield, UniShield® and LC power cables. Cold shrink design fits type MV-90 or MV-105 cables with aluminum or copper conductors while ensuring easy installation. The silicone-rubber construction offers good high- and low-temperature performance.

• Inline splice for joining tape shield, wire shield, UniShield® and LC power cables
• Special-electrode design reduces electrical stress at critical cable and splice interface
• Designed for feeder and distribution circuits, size transition splicing, direct-burial installations and submerged locations
• 0.64 to 1.01-in O.D. insulation
• Accommodates wire size of 2 to 4/0 AWG
• Standard joint includes braid for easy connection to ground
• Rated for 15 kV applications
• Withstands a temperature range of 221 to 284 degrees F (105 to 140 degrees C)
• IEEE Approved
• 1 kit/case

Specifications

• 3M ID: 80611604523
• Case Quantity: 1
• Conductor Sizes: 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG
• Connector Included: No
• Insulation O.D. Range: 0.64 - 1.01 Inch
• Insulation O.D. Range (Metric): 16.3 - 25.7 mm
• Number of Conductors: 1
• Product Series: QS4
• Product Type: Splice
• RoHS 2011/65/EU Compliant: Undetermined
• RoHS EU Comments: Contact 3M for information
• Shielding Type: Tape Shield, Wire Shield, UniShield® & Longitudinally Corrugated (LC)
• Splice Type: Inline
• Voltage: 15 kV
