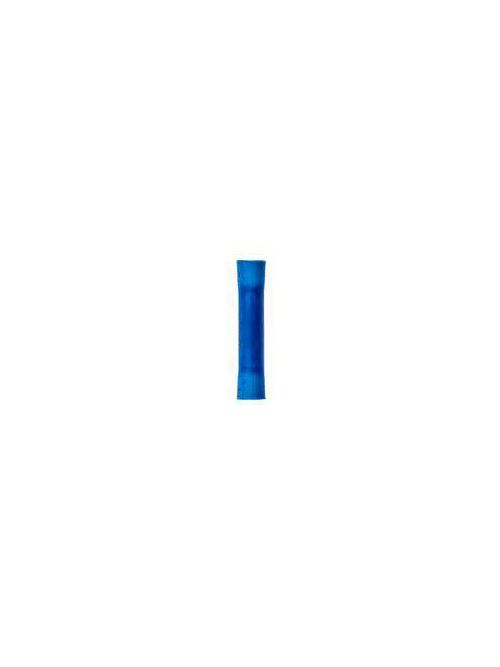

3M MV14BCX 100/Bottle Seamless Vinyl Insulated Butt Connector
$0.59/ea
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV14BCX
Cooper Electric Part # 629439

Overview

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, seamless barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Butt Connector is color-coded for quick and easy identification of the wire size required. The connector has a vinyl-insulated, seamless barrel and provides electrical connection to a pre-stripped end of a stranded wire. It has chamfered barrel ends that enable fast, simple wire insertion and allows for correct positioning with built-in wire stop. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Blue vinyl-insulated, seamless barrel ensures a secure fit and offers reliable performance
  • Offers electrical connection to a pre-stripped end of a stranded wire
  • Built-in wire stop for correct positioning
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/carton, 125/case

Specifications

  • 3M ID: 80611458854
  • Agency Approvals: UL and CSA
  • Barrel Length: 0.30 Inch
  • Barrel Style: Seamless
  • Brand: Scotchlok™
  • Color: Blue
  • Conductor Size: 16 - 14 AWG
  • Conductor Sizes: 16 - 14 AWG
  • Connection Type: Butt
  • CSA File Number: LR22190
  • Insulation Material: Vinyl
  • Length: 1.02 Inch
  • Length (Metric): 25.9 mm
  • Material: ETP Copper
  • Maximum Insulation Outer Diameter: 0.155 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Wire Gauge: 16 AWG
  • Packaging: 100 per bottle
  • Product Type: Connector
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Solution for: Wireless Network: Infrastructure Accessories
  • Terminal Style: Standard
  • Terminal Type: Butt Connectors
  • Thickness: 0.031 Inch
  • Thickness (Metric): 0.787 mm
  • Trademark: Scotchlok
  • UL File Number: E23438

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858740
Product Description 3M Scotchlok Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, seamless barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587409
Length 1.02 in
Finish Tin Plated
Color Blue
Type Standard, Insulated, Seamless
Thickness 0.031 in
Barrel Type Seamless
Material ETP Copper, Vinyl
Terminal Style Standard
Terminal Type Butt Connectors
Product Type Connector
Conductor Size 16-14 AWG
Connection Type Butt
Temperature Rating 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 16 - 14 AWG
Max Operating Temperature 221 degrees F
Barrel Length 0.30 in
Blade Dimensions 0.155 in dia x 0.031 in T
Sub Brand Scotchlok
Voltage null
