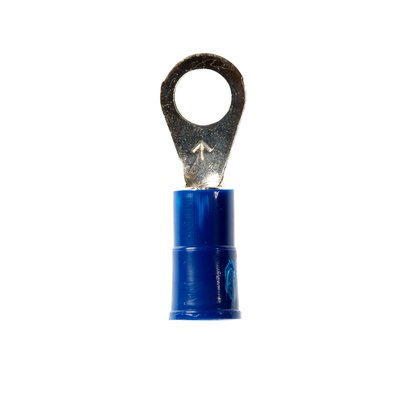

3M MV14-10R/LX 100/Bottle Vinyl Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$0.57/ea
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV14-10R/LX
Cooper Electric Part # 629431

Features

  • Blue vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

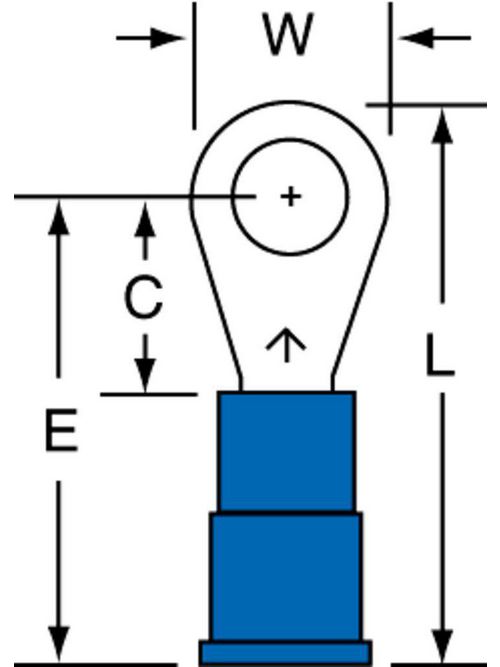

Specifications

  • Color Family: Blue
  • Connection Width (Imperial): 0.19 in
  • Connection Width (Metric): 4.826 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 14 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 16 AWG
  • Overall Length (Imperial): 0.93 in
  • Overall Length (Metric): 23.62 mm
  • Overall Width (Imperial): 0.31 in
  • Overall Width (Metric): 7.87 mm
  • Product Color: Blue
  • Terminal Type: Ring

Overview

UPC 05112858749
Product Description 3M Scotchlok Color-Coded Large Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587492
Length 0.93 in
Finish Tin Plated
Width 0.31 in
Color Blue
Type Ring
Thickness 0.03 in
Barrel Type Brazed
Material PVC
Stud Size 10
Terminal Style Standard
Terminal Type Ring
Conductor Size 16 To 14 AWG
Barrel Diameter 0.09 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 16 - 14 AWG
Barrel Length 0.45 in
Sub Brand Scotchlok
Voltage 600 Volt
Max Operating Temperature 105 C
Overall Length 0.93 in
